(8-272) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY

Запчасти Case IH 1896 (8-272) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS

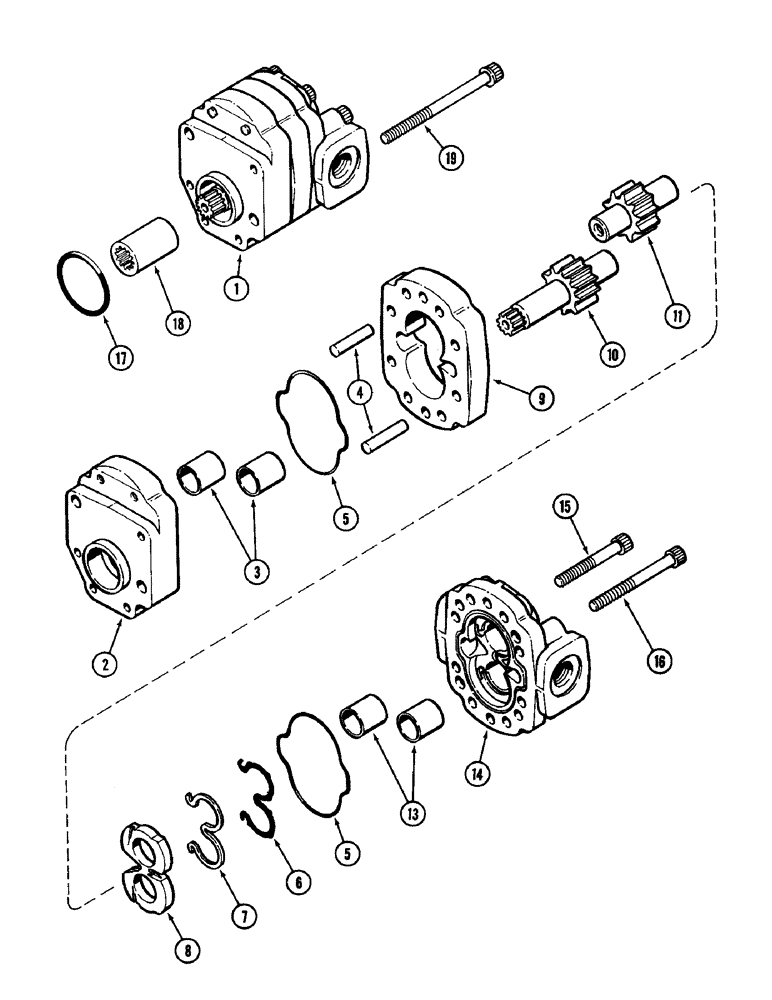

Схема запчастей Case IH 1896 - (8-272) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS
13
14
16
17
4
3
5
6
7
8
15
18
9
2
19
5
10
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A166504

PUMP

ASSEMBLY - hydraulic, complete (Continued from Figure 8-270), Includes: Ref. 1 - 17

1шт.

1346425C1

REMAN-HYD PUMP

1896 (PRIOR TO S/N 17895000) (1/84-12/86)

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

A47928

PUMP

ASSEMBLY - gear

1шт.

84372945R

REMAN-HYD PUMP

1896 (PRIOR TO S/N 17895000) (1/84-12/86), Reman for New PN A47928

1шт.

84372945C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - front cover

2шт.

4

NSS

NOT SOLD SEPARAT

DOWELS - body locating

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL - front and rear cover

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL - rubber

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - teflon

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - rear cover

2шт.

14

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - short

6шт.

16

NSS

NOT SOLD SEPARAT

SCREW - long

4шт.

17

F98069

O-RING

- gear pump

1шт.

A47643

SEAL

KIT - gear pump

1шт.

18

A47312

COUPLING, BREAK AWAY

COUPLING - gear pump to valve block

1шт.

19

A47412

SCREW,M8 x 100mm

- Ferry cap, M8 x 100 MM

2шт.
