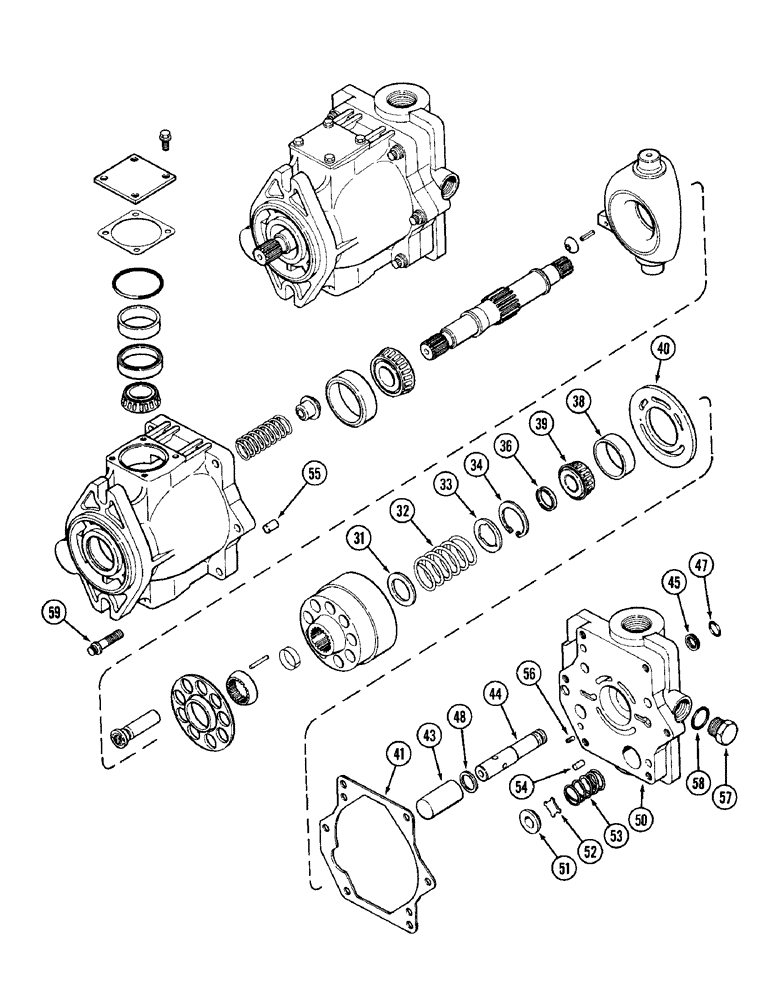

Запчасти Case IH 1896 (8-270) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY (CONTINUED) (08) - HYDRAULICS

A163166

PUMP

ASSEMBLY - hydraulic, complete (Continued from Figure: 8-268), Includes: Ref. 31 - 59 and 1 - 30 on Figure 8-268

1шт.

1346425C1

REMAN-HYD PUMP

1896 (PRIOR TO S/N 17895000) (1/84-12/86), Reman for New PN A163166

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

31

A47299

WASHER

- spring, front

1шт.

Part of Block Kit, P/N N8303

1шт.

32

A47298

SPRING

- cylinder block

1шт.

Part of Block Kit, P/N N8303

1шт.

33

A47300

SPRING WASHER

WASHER - spring, rear

1шт.

Part of Block Kit, P/N N8303

1шт.

34

NLS

NO LONGER SERVICED

Ring, Snap, , cylinder block 1.625", Int, #162

1шт.

A47303

KIT

SPACER KIT - rear bearing, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.139 inch (3.53 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.142 inch (3.61 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.145 inch (3.68 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.148 inch (3.76 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.151 inch (3.84 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.154 inch (3.91 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.157 inch (3.99 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.160 inch (4.06 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.163 inch (4.14 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.166 inch (4.22 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.169 inch (4.29 mm)

1шт.

38

FB14849

BEARING CUP

- bearing

1шт.

39

FB14850

ROLLER BEARING

CONE - bearing

1шт.

40

A47302

PLATE

- wafer

1шт.

41

A47280

GASKET,0.53mm Thk

- body

1шт.

A47305

KIT

PISTON ROD KIT - cylinder block, Includes: Ref. 43 - 45

1шт.

43

NSS

NOT SOLD SEPARAT

PISTON - rod (Reference No. A47338)

1шт.

44

NSS

NOT SOLD SEPARAT

ROD - piston (Reference No. A47339)

1шт.

45

A47340

RING

- snap, piston rod

1шт.

47

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- piston rod, 1/2 inch (13 mm) ID

1шт.

48

A47479

BUSHING

SPACER - piston limit

1шт.

50

A49434

PIPE

BLOCK - valve

1шт.

51

A47306

PLUG

SEAT - valve block

1шт.

52

A47307

VALVE

- check

1шт.

53

A47308

SPRING

- valve block

1шт.

54

A47309

PIN

- headless, 1/4 x 1/2 inch

1шт.

55

A47301

PIN

- housing to valve body

2шт.

56

221-1849

PLUG

- hex, 1/8-27 inch pipe

1шт.

57

86512512

PLUG,7/8" - 14 ORB

Valve body Hex Hd, 7/8"-14 ORB

1шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

59

166-47

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2", Gr 8

SCREW - 12 point head, 3/8 NC x 1-1/2 inch

6шт.

A47567

KIT

SEAL AND GASKET KIT - (See Figure: 8-266)

1шт.

N8303

KIT

BLOCK KIT - rotating, Includes Refs. 26 - 34 and 26 - 30 on Figure 8-268

1шт.
