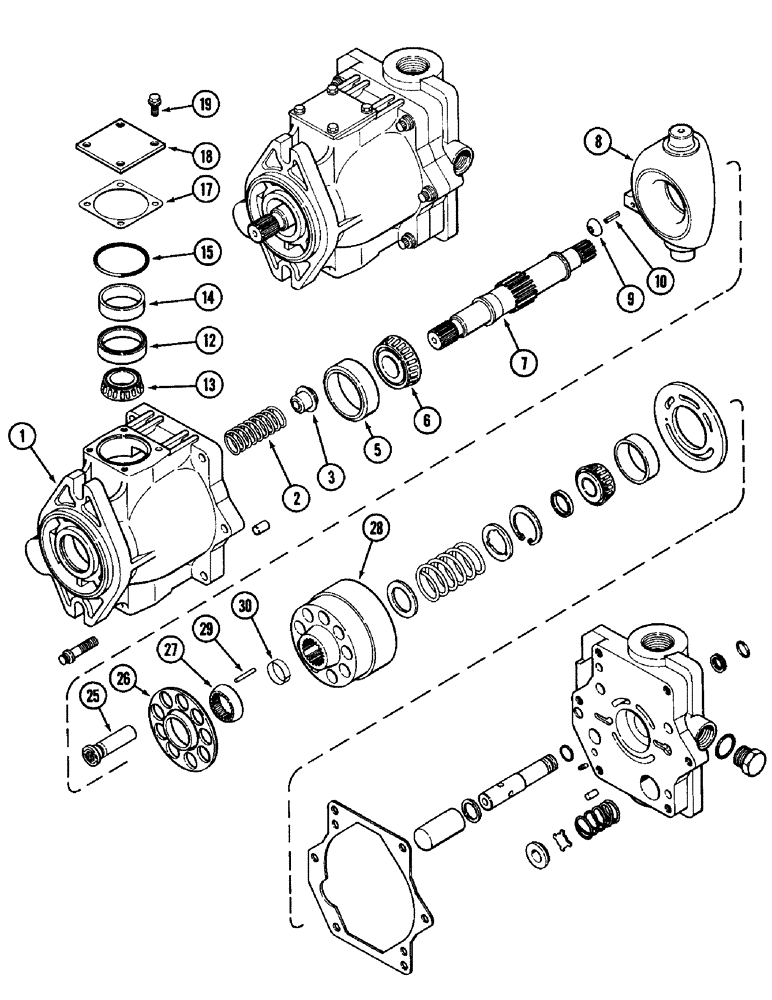

Запчасти Case IH 1896 (8-268) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS

A166504

PUMP

ASSEMBLY - hydraulic, complete (Continued from Figure: 8-266), Includes: Ref. 1 - 30 and 31 - 59 on Figure 8-270

1шт.

1346425C1

REMAN-HYD PUMP

1896 (PRIOR TO S/N 17895000) (1/84-12/86)

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

A47278

HOUSING

- piston pump

1шт.

2

A47281

SPRING

- housing

1шт.

3

A47282

PLUG

SEAT - spring

1шт.

5

D59595

TAPERED BEARING

CUP - bearing

1шт.

6

A31272

ROLLER BEARING,1" ID x 0.8125"

CONE - bearing

1шт.

7

A47289

SHAFT

- drive, piston pump

1шт.

8

A47284

YOKE

- swing

1шт.

9

A47283

SEAT

- spherical

1шт.

10

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

1шт.

12

D29267

BEARING CUP,1.98" OD x 0.42"

CUP - bearing

1шт.

13

D53168

TAPERED BEARING

CONE - bearing

1шт.

14

A47286

SPACER

- yoke bearing

2шт.

15

S5730

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

- cover

2шт.

A47287

KIT

SHIM KIT - yoke bearing, Includes: Ref. 17

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch (0.076 MM) (3 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch (0.127 MM) (2 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch (0.254 MM) (2 in kit)

1шт.

18

A47288

COVER

- housing

2шт.

19

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

25

A47334

PACKAGE

PISTON KIT - pump, Includes 9 pistons and 9 shoes

1шт.

26

A47292

PLATE

- shoe, piston pump

1шт.

Part of Block Kit, P/N N8303

1шт.

27

A47293

WASHER

- spherical

1шт.

28

A47295

BLOCK

- cylinder

1шт.

29

A47296

PIN

- cylinder block

3шт.

Part of Block Kit, P/N N8303

1шт.

30

A47297

SNAP RING,7.11mm Thk, Int

- pin

1шт.

Part of Block Kit, P/N N8303

1шт.

A47567

KIT

SEAL AND GASKET KIT - complete pump, See Figure: 8-266

1шт.

N8303

KIT

BLOCK KIT - rotating, Includes Refs. 26 - 30 and 31 - 34 on Figure 8-270

1шт.
