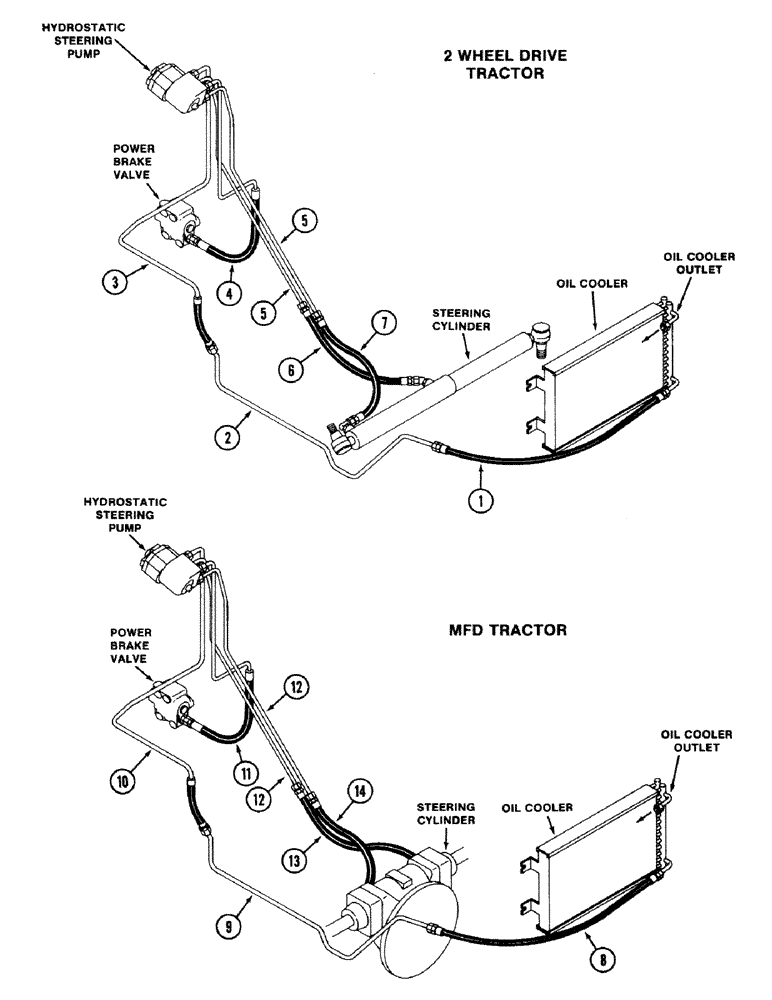

Запчасти Case IH 1896 (1-18) - PICTORIAL INDEX, STEERING HYDRAULICS, TWO WHEEL DRIVE (00) - PICTORIAL INDEX

1

A169712

HOSE,12.70 mm ID x 830.00 mm, SAE100 R1

12.70 mm ID x 830.00 mm, SAE 100R1 - Oil Cooler Inlet, Figure 5-106

1шт.

2

A169713

TUBE

Oil Cooler to Steering Pump Tube, Figure 5-106

1шт.

3

A165759

HOSE

Steering Pump to Cooler Tube, Figure 5-106

1шт.

4

Steering Pump to Brake Valve Hose, Page 5-107

1шт.

5

A167050

TUBE

Steering Pump to Cylinder Hose, Figure 5-104

1шт.

6

Left Steering Cylinder Hose, Figure 5-104

1шт.

7

Right Steering Cylinder Hose, Figure 5-104

1шт.

8

A169712

HOSE,12.70 mm ID x 830.00 mm, SAE100 R1

12.70 mm ID x 830.00 mm, SAE 100R1 - Oil Cooler Inlet, Figure 5-106, Mechanical Front Drive (MFD)

1шт.

9

A169713

TUBE

Oil Cooler to Steering Pump Tube, Figure 5-106, Mechanical Front Drive (MFD)

1шт.

10

A165759

HOSE

Steering Pump to Cooler Pump, Figure 5-106, Mechanical Front Drive (MFD)

1шт.

11

Steering Pump to Brake Valve Hose, Page 5-107, Mechanical Front Drive (MFD)

1шт.

12

A167050

TUBE

Steering Pump to Cylinder Hose, Figure 5-104, Mechanical Front Drive (MFD)

1шт.

13

Left Steering Cylinder Hose, Figure 5-104, Mechanical Front Drive (MFD)

1шт.

14

Right Steering Cylinder Hose, Figure 5-104, Mechanical Front Drive (MFD)

1шт.
