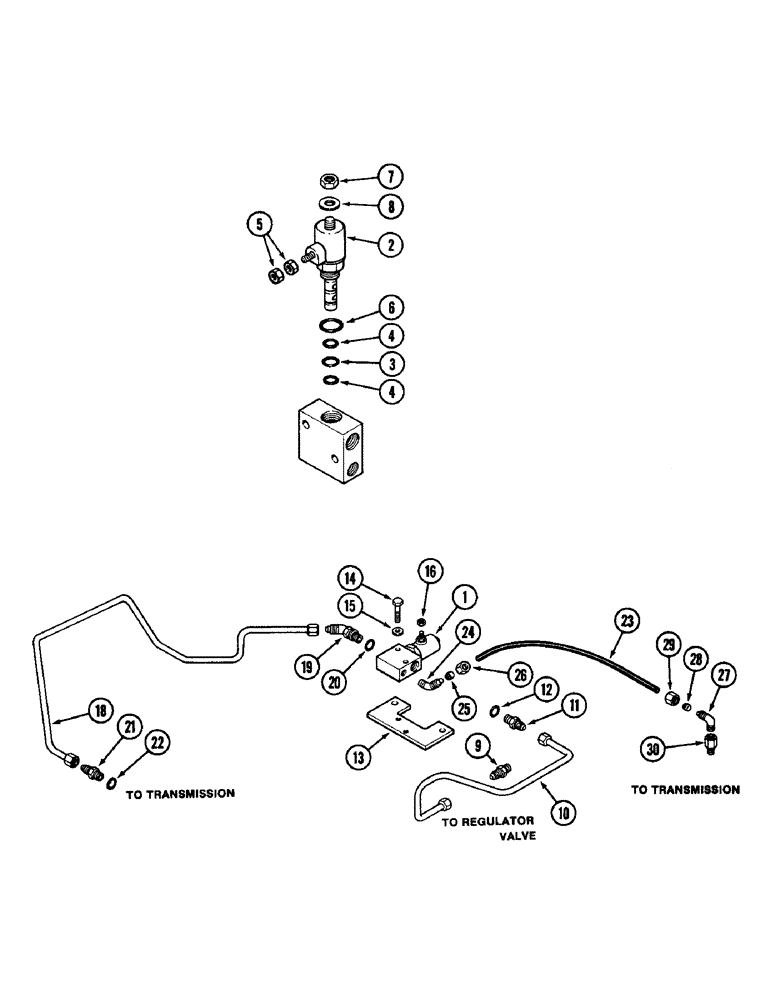

Запчасти Case IH 1896 (7-242) - DIFFERENTIAL LOCK MECHANISM (07) - BRAKES

1

A176599

VALVE

ASSEMBLY - differential lock, Includes: Ref. 2 - 8

1шт.

2

A49644

COIL

- valve

1шт.

3

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- coil, 5/8 inch (16 MM)

1шт.

4

D61967

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- coil

2шт.

5

129-16

NUT,#8-32

2шт.

7

129-123

NUT,3/8"-24, G5

1шт.

8

195-2252

WASHER,.391" x 3/4" x .065"

- flat, 25/64 x 3/4 x 1/16 inch (10 x 19 x 2 MM)

1шт.

9

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Straight, 3/8 tube 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

10

A169802

PIPE

TUBE - differential lock valve

1шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSEMBLY - straight, 3/8 tube 9/16-18 inch thread, Incl. Ref. 12

1шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

13

A163013

BRACKET

- differential lock valve

1шт.

14

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

2шт.

15

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

16

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, Keps, No. 8-32

1шт.

18

A162604

TUBE

-, Serial Range: valve-transmission

1шт.

19

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - 45 degree adjustable, 3/8 tube 9/16-18 inch thread, Includes: Ref. 20

1шт.

20

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

21

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR ASSEMBLY - straight, 3/8 tube 9/16-18 x 1/2 tube 3/4-16 inch thread, Includes: Ref. 22

1шт.

22

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

23

A137319

TUBE

- nylon, 15 inch long (381 MM) (Order A167912 and, Serial Range: cut-length)

1шт.

24

222-2726

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

ASSEMBLY - 45 degree, 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 25 and 26

1шт.

25

222-2611

SLEEVE

- 3/8 inch tube

1шт.

26

222-2601

NUT

NUT - hex, 3/8 tube 17/32-24 inch thread

1шт.

27

222-2641

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

ASSEMBLY - 45 degree, 3/8 tube 17/32-24 x 1/4 inch PT, Includes: Ref. 28 and 29

1шт.

28

222-2611

SLEEVE

- 3/8 inch tube

1шт.

29

222-2601

NUT

NUT - hex, 3/8 tube 17/32-24 inch thread

1шт.

30

217-1011

ADAPTER,1/8" - 27 Male NPTF x 1/4" - 18 Female NPTF

CONNECTOR - reducer, 1/4 PT to 1/8 inch PT

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 MM)

1шт.
