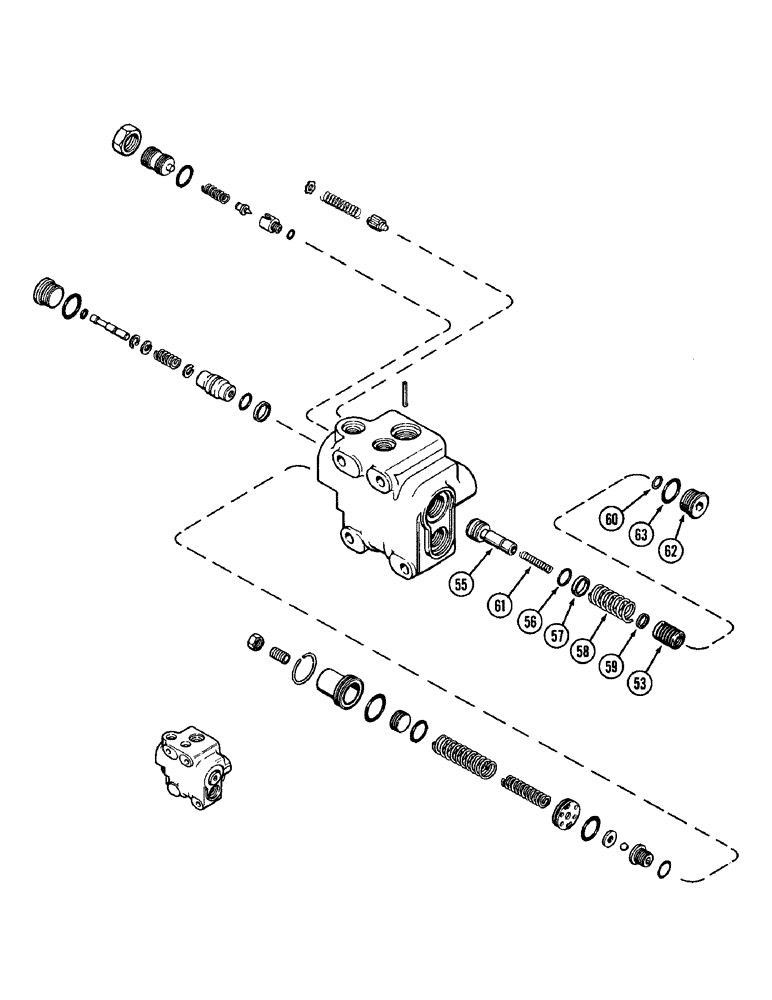

Запчасти Case IH 1896 (7-238) - BRAKE VALVE ASSEMBLY (CONTINUED) (07) - BRAKES

G105128

VALVE, BRAKE

VALVE ASSEMBLY - power brake (Continued from Figure: 7-236), Includes: Ref. 53 - 63 and 2 - 51 on Figure 7-236

1шт.

G105034

VALVE ASSEMBLY - pressure regulator (Order components), Includes: Ref. 53 - 57

1шт.

53

G105038

SPOOL

- pressure regulator

1шт.

G105035

PISTON ASSEMBLY - pressure regulator (Order components), Includes: Ref. 55 - 57

1шт.

55

G105037

PISTON

- pressure regulator

1шт.

56

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- piston

1шт.

57

G100797

RING

SEAL - ring

1шт.

58

G105036

SPRING

- regulator piston

1шт.

59

G102104

WASHER

- orifice

1шт.

60

G100792

RING

- retaining

1шт.

61

G100794

SPRING

- regulator piston return

1шт.

62

86625138

PLUG,7/18" - 14

Assy, 5/8 tube, Includes Ref. 63 Hex Soc, 7/8"-14 ORB

1шт.

63

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 MM)

1шт.
