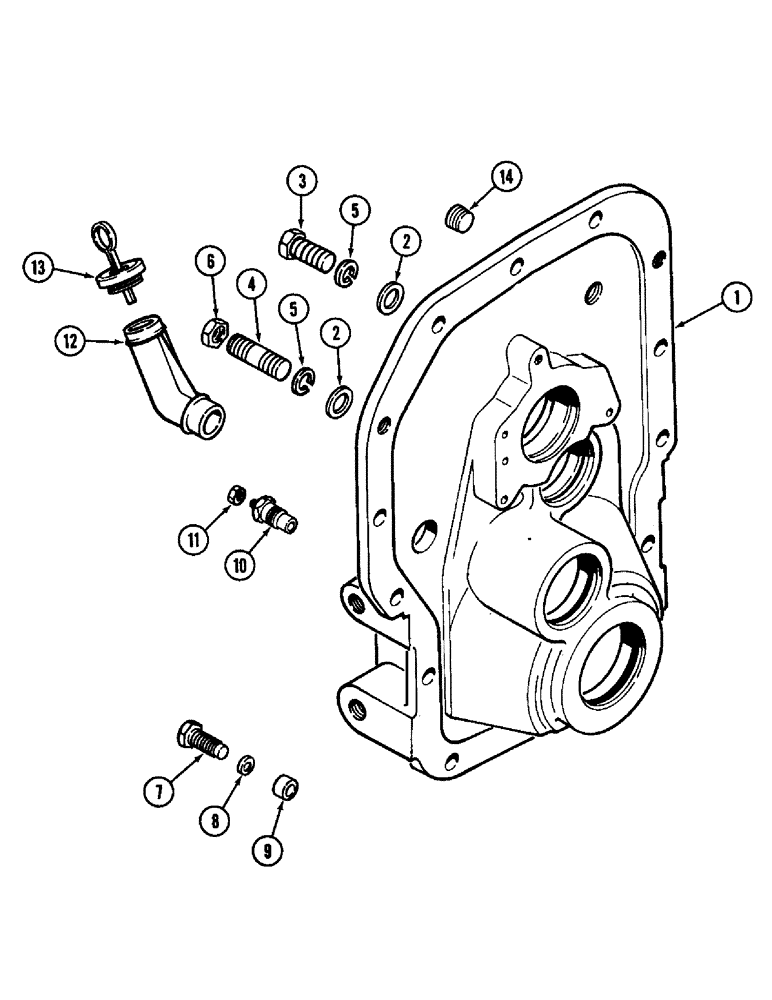

Запчасти Case IH 1896 (6-224) - PTO HOUSING (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

HOUSING - PTO (Order A67537 kit)

1шт.

2

A64303

WASHER

- mounting bolt and stud

12шт.

3

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

10шт.

4

A168517

STUD

- housing

2шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

6

129-107

NUT,5/8"-11, G5

2шт.

7

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

8

L30674

WASHER

- mounting bolt (Order A75865)

2шт.

9

A50011

SLEEVE

BUSHING - mounting bolt

2шт.

10

A154283

SWITCH

- transmission temperature sending

1шт.

11

193-1000

NUT,Keps, w/LW,#10-32

- No. 10-32 hex Keps

1шт.

12

A150353

TUBE

- oil filler

1шт.

13

A64404

BREATHER

CAP - oil filler tube

1шт.

14

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket, 3/4 inch PT

1шт.
