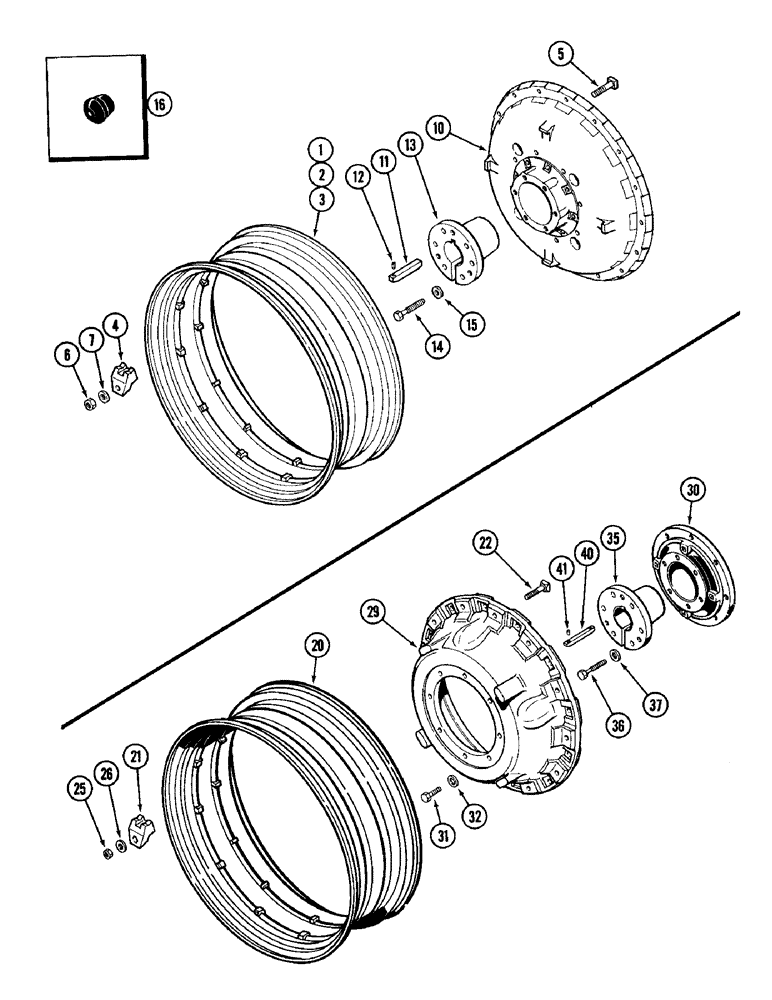

Запчасти Case IH 1896 (6-210) - REAR WHEELS, WITH 38" (965 MM) AND 42" (1067 MM) RIMS, USED WITH 3-7/8" (98 MM) DIAMETER AXLE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A33223
RIM
- wheel (For 16.9 x 38 tire)
2шт.
2
A160971
RIM
- wheel (For 18.4 x 38 tire)
2шт.
2
A160973
RIM
- wheel (For 18.4 x 42 tire)
2шт.
3
A160972
RIM
- wheel (For 20.8 x 38 tire)
2шт.
4
A57654
CLAMP
-, Serial Range: rim-wheel
16шт.
5
117-604
SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5
- square head, 3/4 NC x 3-1/2 inch
16шт.
6
129-593
NUT,Hvy Hex, 3/4" - 10, Gr 5
- heavy hex, 3/4 inch NC
16шт.
7
A161560
WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk
- clamp nut
16шт.
10
A161818
WHEEL
- rear
2шт.
13
A63805
BUSHING
- wheel hub
2шт.
14
1533578C1
SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5
BOLT - bushing to wheel hub
12шт.
15
D31328
WASHER
- bolt
12шт.
16
A145052
PLUG
- valve opening in rim
1шт.
20
A160973
RIM
- wheel (For 18.4 x 42 tire)
2шт.
20
A160971
RIM
- wheel (For 18.4 x 38 tire)
2шт.
20
A160972
RIM
- wheel (For 20.8 x 38 tire)
2шт.
21
A57654
CLAMP
-, Serial Range: rim-wheel
24шт.
22
117-604
SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5
- square head, 3/4 NC x 3-1/2 inch
24шт.
25
129-593
NUT,Hvy Hex, 3/4" - 10, Gr 5
- heavy hex, 3/4 inch NC
24шт.
26
A161560
WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk
- clamp nut, flat
24шт.
29
A145464
WHEEL
- rear
2шт.
30
A145322
HUB
- universal
2шт.
31
26-1244
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8
- hex, 3/4 NC x 2-3/4 inch
16шт.
32
D31328
WASHER
- hub bolt
16шт.
35
A63805
BUSHING
- wheel hub
2шт.
36
1533578C1
SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5
BOLT - bushing to hub
12шт.
37
D31328
WASHER
- bushing bolt
12шт.
Выбрано товаров: 31
