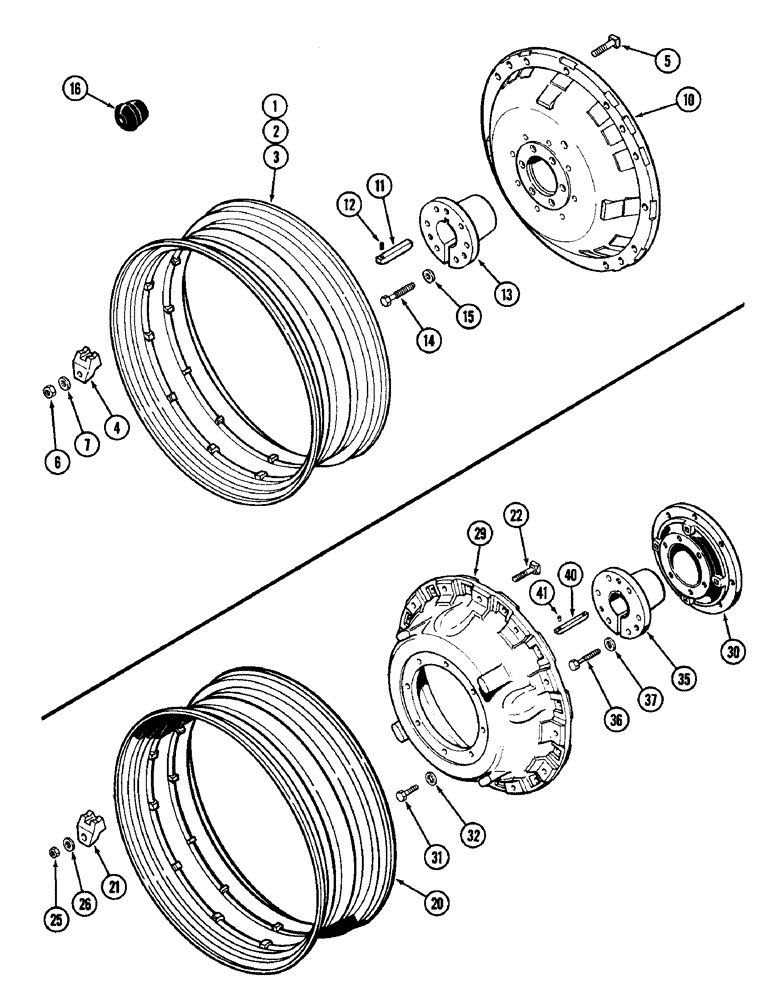

Запчасти Case IH 1896 (6-208) - REAR WHEELS, WITH 38" (965 MM) AND 42" (1067 MM) RIMS, USED WITH 3-1/2" (89 MM) DIAMETER AXLE (06) - POWER TRAIN

1

A33223

RIM

- wheel (For 16.9 x 38 tire)

2шт.

2

A160971

RIM

- wheel (For 18.4 x 38 tire)

2шт.

3

A160972

RIM

- wheel (For 20.8 x 38 tire)

2шт.

4

A57654

CLAMP

-, Serial Range: rim-wheel

16шт.

5

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch

16шт.

6

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- heavy hex, 3/4 inch NC

16шт.

7

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut

16шт.

10

A149777

WHEEL

- rear

2шт.

11

A63219

KEY

- axle shaft (Replaces A34890)

2шт.

12

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

13

A145896

BUSHING

- wheel hub

2шт.

14

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to wheel hub

12шт.

15

D31328

WASHER

- bolt

12шт.

16

A145052

PLUG

- valve opening in rim

1шт.

20

A160971

RIM

- wheel (For 18.4 x 38 tire)

2шт.

20

A160972

RIM

- wheel (For 20.8 x 38 tire)

2шт.

21

A57654

CLAMP

-, Serial Range: rim-wheel

24шт.

22

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch

24шт.

25

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- heavy hex, 3/4 inch NC

24шт.

26

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut, flat

24шт.

29

A145464

WHEEL

- rear

2шт.

30

A145321

HUB CAP

HUB - universal

2шт.

31

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch

16шт.

32

D31328

WASHER

- hub bolt

16шт.

35

A59792

HUB

BUSHING - wheel hub

2шт.

36

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

12шт.

37

D31328

WASHER

- bushing bolt

12шт.

40

A63219

KEY

- axle shaft (Replaces A34890)

2шт.

41

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
