(6-206) - REAR WHEELS, WITH 34 INCH (864 MM) RIMS, WITH 3-1/2 INCH (89 MM) DIAMETER AXLE

Запчасти Case IH 1896 (6-206) - REAR WHEELS, WITH 34 INCH (864 MM) RIMS, WITH 3-1/2 INCH (89 MM) DIAMETER AXLE (06) - POWER TRAIN

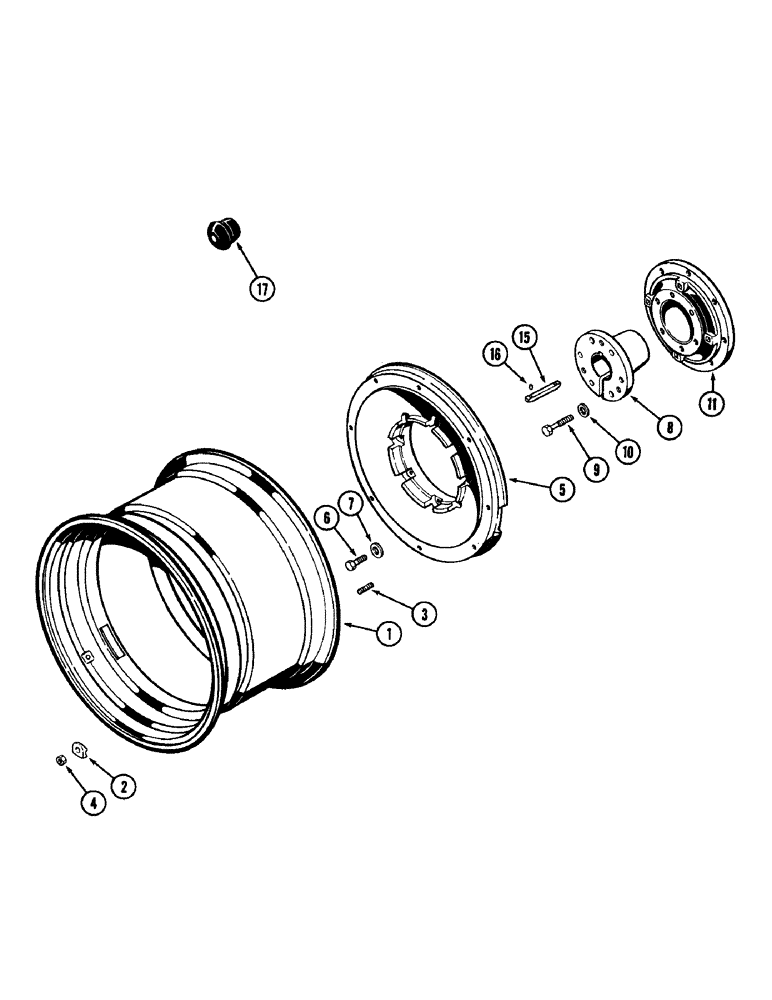

Схема запчастей Case IH 1896 - (6-206) - REAR WHEELS, WITH 34 INCH (864 MM) RIMS, WITH 3-1/2 INCH (89 MM) DIAMETER AXLE (06) - POWER TRAIN
9
2
10
1
4
6
8
16
3
11
7
15
17
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A33460

RIM

- wheel (For 23.1 x 34 tire)

2шт.

2

A166501

CLAMP

-, Serial Range: rim-wheel

16шт.

3

A60047

STUD

-, Serial Range: clamp-wheel

16шт.

4

A27183

NUT

- stud, 5/8 inch NC

16шт.

5

A57686

WHEEL

- rear, universal hub

2шт.

6

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch (Grade 8)

16шт.

7

A64303

WASHER

- hardened

16шт.

8

A59792

HUB

BUSHING - hub

2шт.

9

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

12шт.

10

D31328

WASHER

- bolt, 1-5/8 inch (41 MM)

12шт.

11

A59791

HUB

- universal

2шт.

15

A63219

KEY

- axle shaft (Replaces A34890)

2шт.

16

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

17

A145052

PLUG

- valve opening in rim

1шт.
