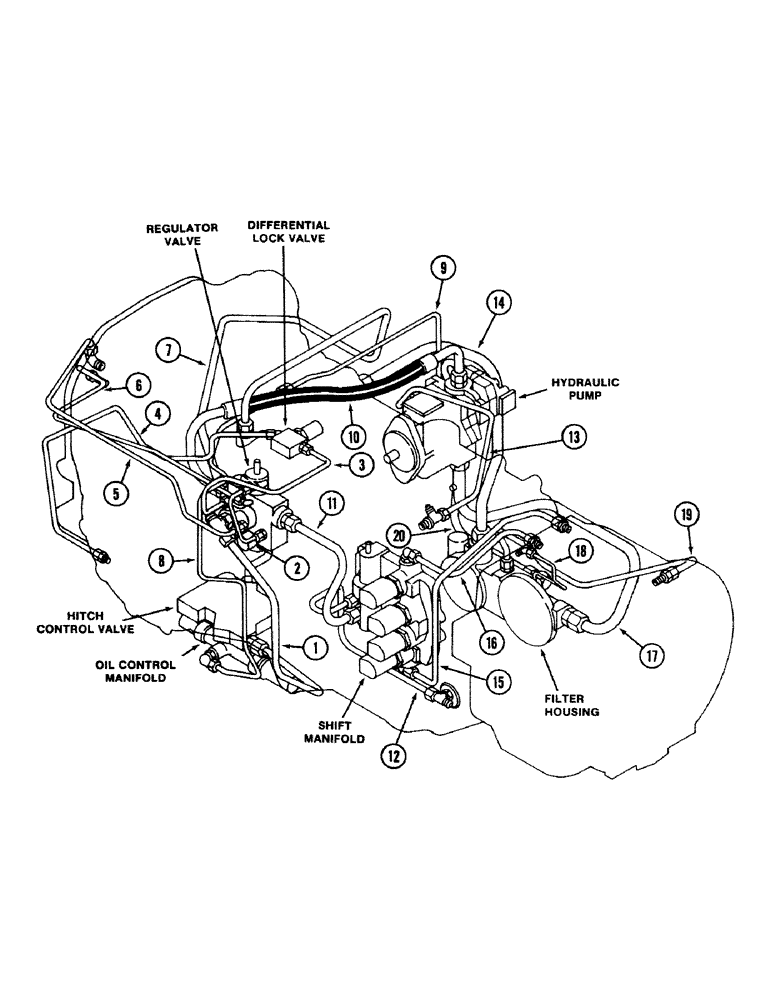

Запчасти Case IH 1896 (1-12) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

A162500

TUBE

Regulator Valve to Manifold Tube, Figure 8-326

1шт.

2

NLS

NO LONGER SERVICED

PTO Brake Drain Tube, Figure 8-248

1шт.

3

A169802

PIPE

Regulator Valve to Differential Lock Valve Tube, Figure 7-242

1шт.

4

A162604

TUBE

Differential Lock Valve to Transmission Tube, Figure 7-242

1шт.

5

A162601

TUBE

Regulator Valve to PTO Clutch Tube, Figure 8-248

1шт.

6

A145291

TUBE

Regulator Valve to PTO Brake Tube, Figure 8-248

1шт.

7

REF

INSTRUCTION

Manifold to Lift Cylinder Tube, Figure 8-326

1шт.

8

A162529

TUBE

Right Hitch Valve Pilot Tube, Figure 8-254

1шт.

9

A162530

PIPE

Left Hitch Valve Pilot Tube, Figure 8-254

1шт.

10

A160652

TUBE

Pump to Regulator Valve Hose, Figure 8-248

1шт.

11

Regulator Valve to Shift Manifold Supply Tube, Figure 8-250

1шт.

12

A166533

TUBE

Control Valve to Shift Manifold Tube, Figure 8-250

1шт.

13

A160223

TUBE

Hydraulic Pump Drain Tube, Figure 8-254

1шт.

14

A160224

TUBE

Transmission Charge Pump Tube, Figure 8-258

1шт.

15

A166530

TUBE

C1 Clutch Fill Tube, Figure 8-250

1шт.

16

A166531

TUBE

C4 Clutch Fill Tube, Figure 8-250

1шт.

17

A160224

TUBE

Filter Housing to Pump Suction Tube, Figure 8-254

1шт.

18

A164078

TUBE

Transmission Countershaft Lubrication Tube, Figure 8-258

1шт.

19

A166793

TUBE

C1 Clutch Lubrication Tube, Figure 8-258

1шт.

20

A160218

TUBE

Steering Suction Tube, Figure 8-254

1шт.
