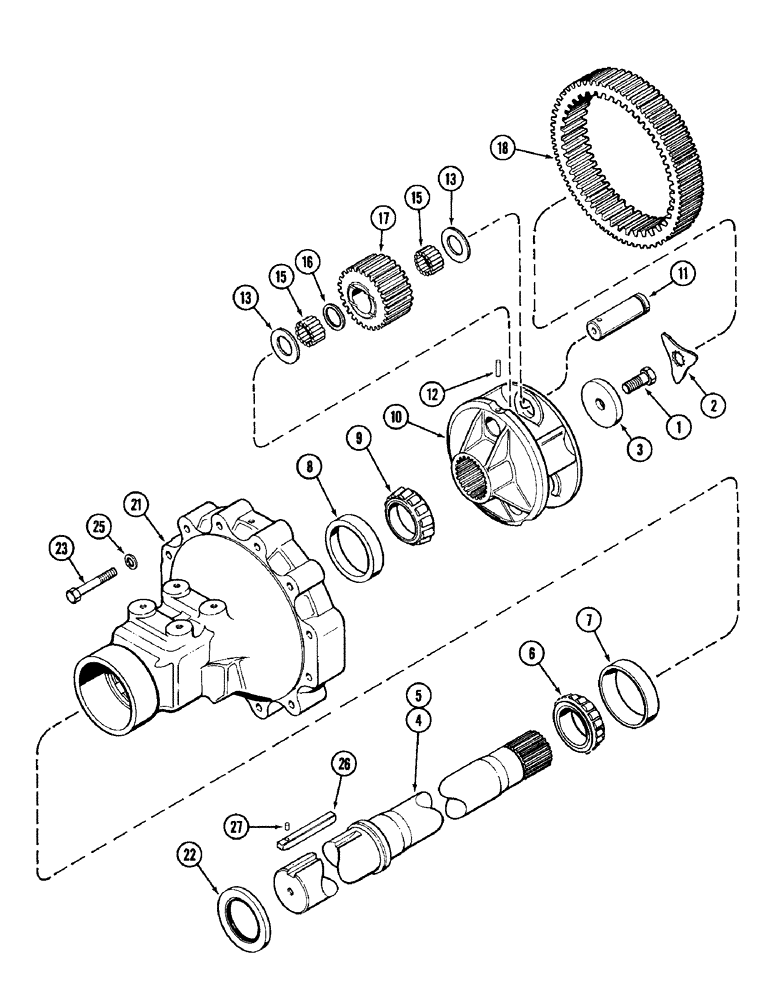

Запчасти Case IH 1896 (6-202) - REAR AXLE, HOUSING AND PLANETARY GEARS, 96 INCH LONG (2438 MM) 3-7/8 INCH (98 MM) DIAMETER (06) - POWER TRAIN

1

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

- hex, 7/8 NC x 2-1/4 inch (Grade 8)

2шт.

2

A63221

PLATE

- bearing lock

2шт.

3

A63220

PLATE

- retaining, rear axle

2шт.

4

A179761

SHAFT

- rear axle, 96 inch long (2 438 MM)

2шт.

5

A179760

SHAFT

- rear axle, 102 inch long (3 048 MM)

1шт.

6

A63216

ROLLER BEARING,89.98mm ID x 44mm W

CONE - bearing, outer

2шт.

7

A63214

CUP

- bearing

2шт.

8

A50324

BEARING CUP

CUP - bearing, inner

2шт.

9

PA34339

NUT

CONE - bearing, inner

2шт.

10

A168153

CARRIER

- planetary gear

2шт.

11

A168244

PIN,41.94mm OD x 138.2mm L

- planetary gear, with 3/8 inch hole (10 MM)

6шт.

12

138-2066

PIN,3/8" x 1 1/2", Coiled

6шт.

13

A67116

WASHER

- planetary pin roller

12шт.

15

A47252

ROLLER BEARING

BEARING KIT - roller, planetary gear (Pack of 38)

1шт.

16

A67117

SPACER

- roller bearing separator

6шт.

17

A168175

GEAR

- planetary, rear axle (25 Teeth)

6шт.

18

A151934

GEAR

- ring, planetary (65 & 118 Teeth)

2шт.

21

A179983

HOUSING

- rear axle

2шт.

22

A63218

OIL SEAL

- oil, rear axle

2шт.

23

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch (Grade 8)

24шт.

25

A64303

WASHER

- housing bolt

24шт.

26

A34890

BUCKET TOOTH KEY

KEY - rear wheel to axle shaft, 6 inch long (152 MM)

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
