Запчасти Case IH 1896 (6-174) - POWER SHIFT TRANSMISSION, (C2) AND (C3) CLUTCHES, TRANSMISSION SERIAL NUMBER 16264523 AND AFTER (06) - POWER TRAIN

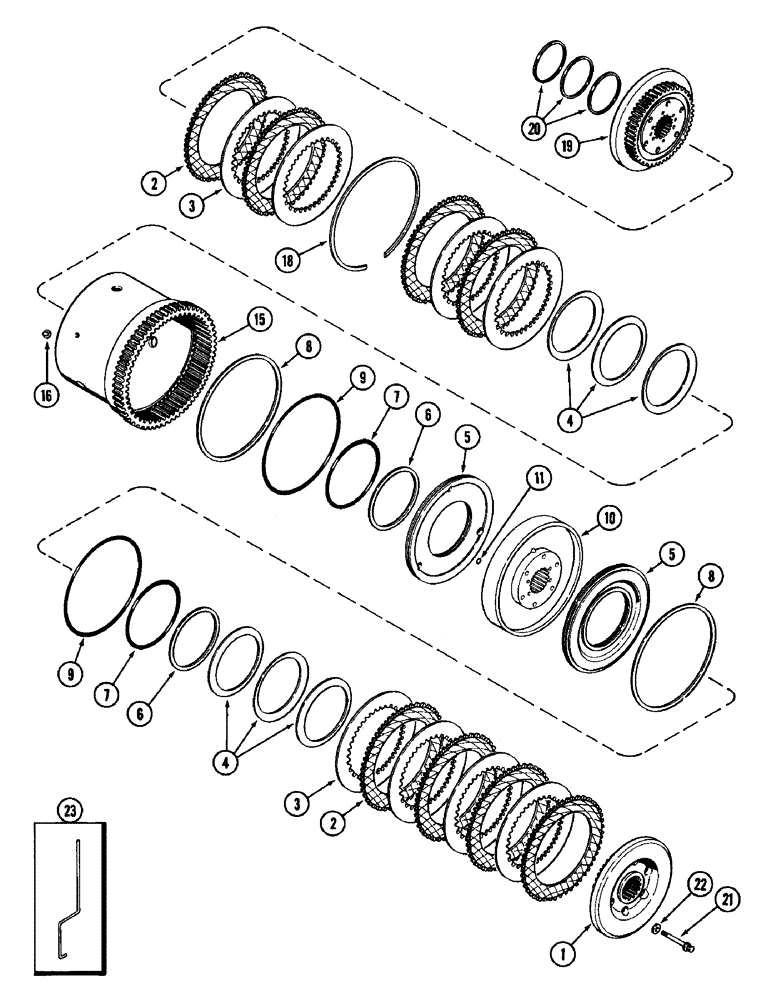

Схема запчастей Case IH 1896 - (6-174) - POWER SHIFT TRANSMISSION, (C2) AND (C3) CLUTCHES, TRANSMISSION SERIAL NUMBER 16264523 AND AFTER (06) - POWER TRAIN
7
22
5
4
9
3
4
20
5
3
8
18
7
19
10
16
1
21
11
8
9
6
15
2
2
6
23

Артикул

Название

Примечание

Количество

1

A168299

HUB

- (C2) Clutch

1шт.

2

A61981

PLATE

- clutch, sintered

8шт.

3

A155461

PLATE

- clutch

8шт.

4

A58094

SPRING

- clutch return

6шт.

5

A146670

PISTON

- (C2) and (C3)

2шт.

6

A146683

RING

- internal seal, 4-15/32 inch ID (114 mm)

2шт.

Part of Seal Kit, P/N A46286

1шт.

7

A150754

O-RING,4.718" ID x 0.107"

RING - internal seal, 11/16 inch ID (119 mm)

2шт.

Part of Seal Kit, P/N A46286

1шт.

8

A146682

RING

- external seal, 8-9/32 inch OD (210 mm)

2шт.

9

A150753

O-RING,7.84" ID x 0.107"

RING - external seal, 7-7/8 inch OD (200 mm)

2шт.

10

A150105

CARRIER

- (C2) and (C3)

1шт.

11

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - carrier

4шт.

15

A168208

GEAR

- ring

1шт.

16

A58413

BUTTON

BEARING - button, planetary ring gear

3шт.

18

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, clutch retaining ring gear

1шт.

19

A168206

HUB

- (C3) Clutch

1шт.

20

A58384

RING

- piston, oil distributor

3шт.

21

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - 12 point, 1/2 NC x 3 inch

6шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- hardened

6шт.

23

A43110

TOOL

HOLDER - clutch plate (Service tool)

2шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: ref. nos. 6, 7, 8, 9 and 11 on figures 6-166 and 6-174

1шт.

Выбрано товаров: 22
