Запчасти Case IH 1586 (13-21) - SUPERSTRUCTURE, HEADLINER, CABS WITH SERIAL NO. 30085 AND BELOW (05) - SUPERSTRUCTURE

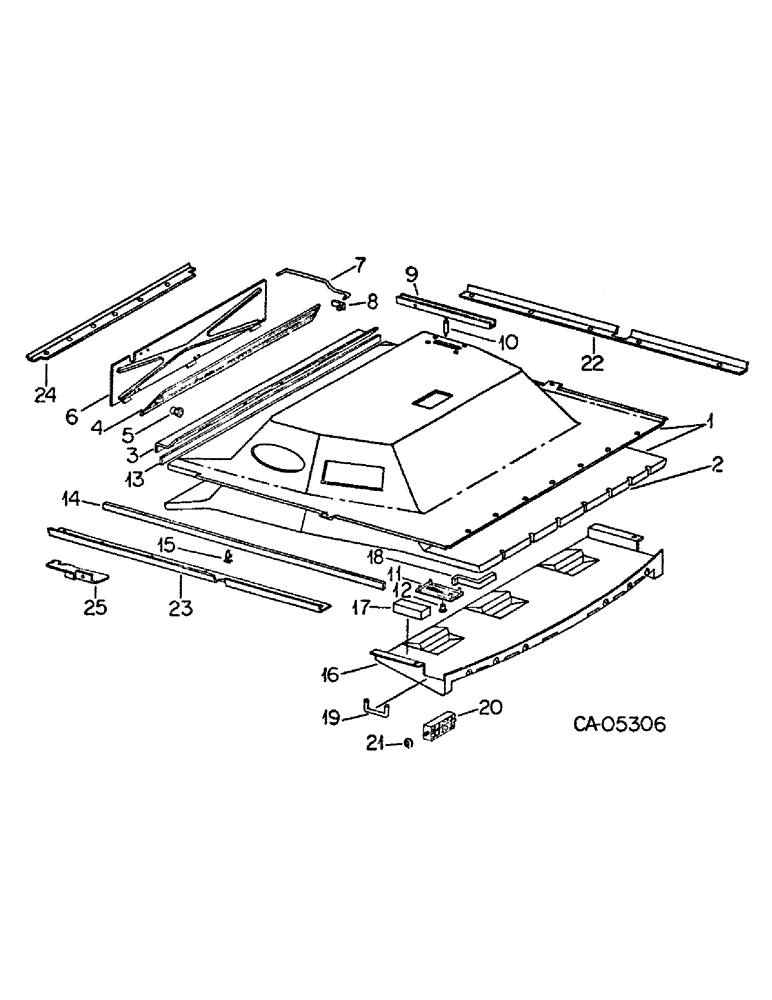

Схема запчастей Case IH 1586 - (13-21) - SUPERSTRUCTURE, HEADLINER, CABS WITH SERIAL NO. 30085 AND BELOW (05) - SUPERSTRUCTURE
16
24
5
4
13
9
21
20
2
8
3
15
23
22
17
6
19
18
25
7
10
1
14

Артикул

Название

Примечание

Количество

1

117631C1

PANEL

ASSY, rear headliner composite

1шт.

2

117632C4

SHEET

rear headliner foam, panel

1шт.

117995C1

PACKAGE

KIT, fastener 3/4 TGL type

1шт.

118171C1

PACKAGE

KIT, fastener 2 in. TGL type

1шт.

111678C1

KIT

FASTENER, TGL type 2 in. long

8шт.

3

111666C1

BRACKET

door support

1шт.

1250628C2

SPACER

spacer

6шт.

26614R1

SCREW,Cross Pan Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 phc p/hdcr tap

6шт.

4

1250572C1

GRILLE, recirculation, Replaces 109282C1

1шт.

5

111296C1

BUTTON

KNOB, grille retainer

6шт.

6

117621C1

DOOR

ASSY, recirculation

1шт.

7

111670C2

ROD

recirculator control

1шт.

8

428497C1

REINFORCEMENT

rod end

2шт.

9

117610C1

CHANNEL

ASSY, slide

1шт.

10

111675C1

STUD

control

1шт.

11

111665C1

PANEL ASSY.

PANEL, recirculation control trim

1шт.

27749R1

SCREW

8-18 x 2-3/4 cr-rec-ov-hd-tap

4шт.

12

111683C1

KNOB

control

1шт.

13

117753C1

SEAL, rear headliner, rear

1шт.

14

117754C1

SEAL

rear headliner, side

2шт.

15

489348C1

RETAINER

rear headliner assy, Replaces 117718C2

2шт.

16

118194C2

PANEL

front headliner, Replaces 118295C94

1шт.

143012C1

FASTENER

push-in

7шт.

26625R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW, 1/4-14 x 1-1/4 phc p/hdcr tap

6шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 x .625 x .051 phc

6шт.

17

118207C1

SEALING STRIP

SEAL, front headliner and recirculatory door bumper, Replaces 111657C1

3шт.

18

117755C1

SEAL, front headliner edge

2шт.

19

117756C1

SEAL, front headliner corner

2шт.

20

109227C1

VENT

ASSY, air discharge, louver

6шт.

21

117611C2

SPACER

friction

9шт.

27075R1

SCREW, 10-16 x 7/8 phc ov-hd cr-rec-tap

7шт.

26625R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW, 1/4-20 x 1-1/4 pan-hd cr-tap ab phc

6шт.

22

109505C1

RETAINER

headliner side LH

1шт.

27679R1

SELF-TAP SCREW

1/4-14 x 1-1/4 phc ov-hd cr-rec tap

5шт.

23

109506C1

RETAINER

headliner side RH

1шт.

27679R1

SELF-TAP SCREW

1/4-14 x 1-1/4 phc ov-hd cr-rec tap

5шт.

24

118299C1

SUPPORT

headliner rear, retainer, Replaces 109460C1

1шт.

24392R1

HARDWARE,Cross Pan Hd, #10 x 1/2"

SCREW, 10-16 x 1/2 pan-hd tap.

7шт.

25

109507C1

SUPPORT

headliner corner LH, retainer

1шт.

27679R1

SELF-TAP SCREW

1/4-14 x 1-1/4 phc ov-hd cr-rec tap.

1шт.

25

109508C1

SUPPORT

headliner corner RH, retainer

1шт.

27679R1

SELF-TAP SCREW

1/4-14 x 1-1/4 phc ov-hd cr-rec tap

1шт.

Выбрано товаров: 42
