Артикул
Название
Примечание
Количество
1250480C91
KIT

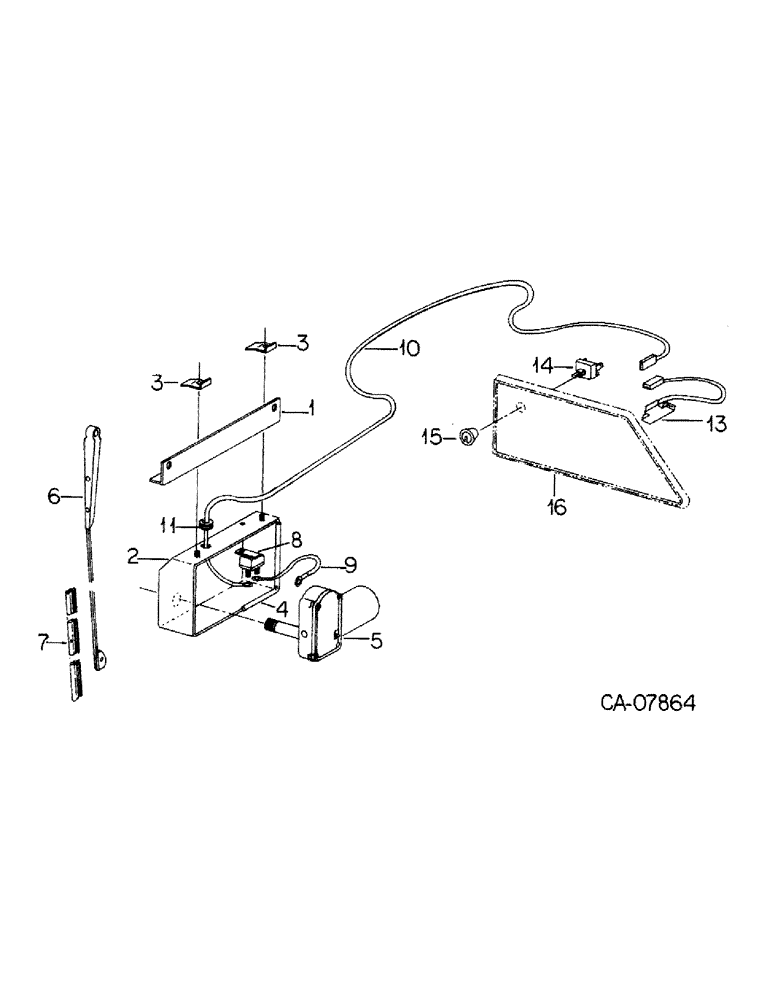

PARTS ACCESSORY, rear window wiper, Consists of ref. nos. 1 thru 15, plus instructions
1шт.
1
1250474C1
SUPPORT
wiper cover
1шт.
2
1250470C1
COVER
ASSY, wiper motor
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
3
1255751C1
CLAMP
CLIP, stiffener
2шт.
4
1250475C1
GASKET
GASKET, wiper motor
1шт.
5
391195R92
WIPER MOTOR
MOTOR ASSY, wiper, Refer to rear window wiper motor this group for list of components
1шт.
188978
SCREW,Hex, #10 - 24 x 3/8"
no. 10 x 3/8 znp h/hd mach
1шт.
178378
LOCK WASHER,Ext-Int Tooth, #10
WASHER, no. 10 ext-int tooth lock
1шт.
6
404242R1
ARM
wiper
1шт.
7
346909C1
WIPER
BLADE, wiper 16 in.
1шт.
8
1250481C1
BREAKER
circuit, 5 amp
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
1/4 x 1/2 type 5
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
2шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
9
1250482C1
CABLE
ASSY, circ brk to wiper motor
1шт.
10
1250483C1
CABLE
ASSY, switch to circ breaker
1шт.
11
117957
GROMMET,1/4" ID x 5/8" x .062"
1/4 x 5/8 x 5/16 N/C rub
1шт.
12
1255752C1
CLAMP
CLIP, cable
4шт.
13
1250484C1
CABLE
ASSY, Serial Range: power-switch
14шт.
14
1250485C1
SWITCH
rear wiper
1шт.
109311H
JAM NUT
7/16-28 hex face
1шт.
493-21046
LOCK WASHER,Int Tooth, 7/16"
WASHER, 7/16 int tooth lock
1шт.
15
111282C1
KNOB
wiper control
1шт.
16
PANEL, control trim, Refer to tractor cab wiring group 8
1шт.
Выбрано товаров: 29
