Запчасти Case IH 1586 (13-12) - SUPERSTRUCTURE, ROLL OVER PROTECTIVE FRAME (05) - SUPERSTRUCTURE

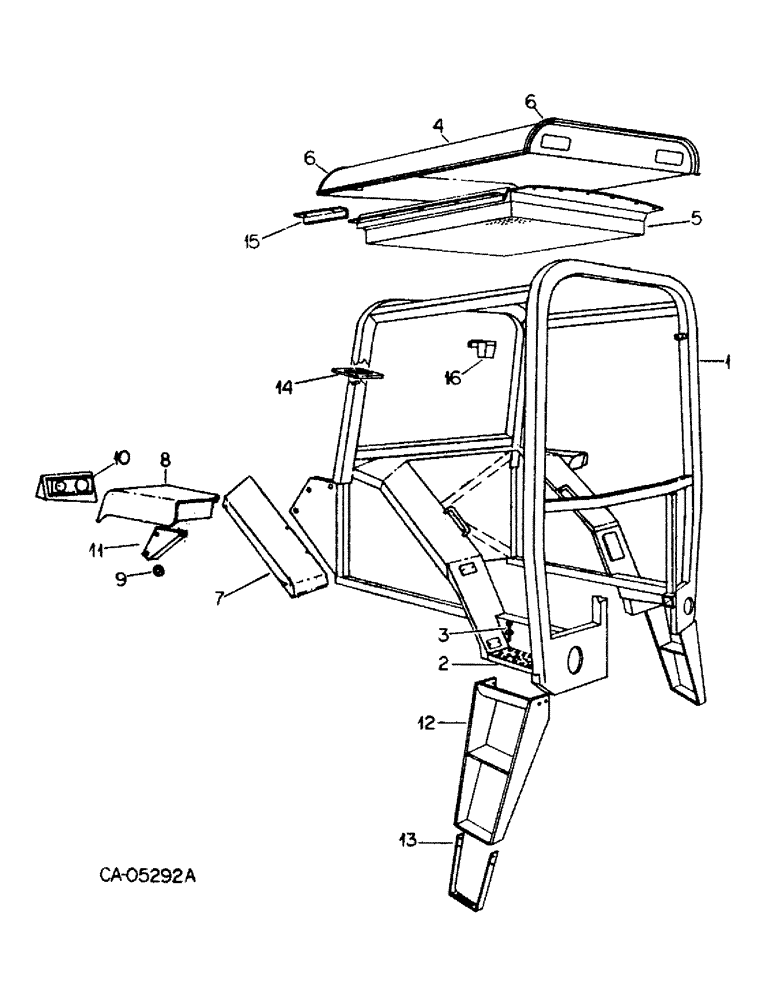

Схема запчастей Case IH 1586 - (13-12) - SUPERSTRUCTURE, ROLL OVER PROTECTIVE FRAME (05) - SUPERSTRUCTURE
1
8
3
6
13
15
12
14
11
4
5
6
16
7
2
10
6

Артикул

Название

Примечание

Количество

1

118313C92

FRAME

ASSY, w/product graphic, ROPS

1шт.

ROPS with serial no. 107806 and below.

1шт.

353-417

PLUG,Dome, 2.000" hole, Nylon

2.0 in. button, Replaces 401568C1

1шт.

27729R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/2"

SCREW, 1/4-20 x 1-1/2 tap phc cr-rec-pan-hd tap type T

6шт.

115109

WASHER,1/4"

1/4"

6шт.

1

1267546C91

FRAME ASSY

rops w/product graphic

1шт.

ROPS with serial no. 107807 and above.

1шт.

117675C1

PLUG

.5 Hole

8шт.

118148C2

SELF-TAP SCREW,Hex, #10 x 3/8"

SCREW

6шт.

115109

WASHER,1/4"

1/4"

6шт.

143088C1

PLUG

9/16 hole

6шт.

353-417

PLUG,Dome, 2.000" hole, Nylon

2.0 hole

1шт.

2

109441C1

PANEL

inner step LH

1шт.

2

109442C1

PANEL

inner step RH

1шт.

24373R1

SCREW

8-18 x 1/4 pan-hd cr-rec tap

8шт.

3

111240C1

FASTENER

1/4 turn

4шт.

4

117997C1

TOP

PANEL, canopy

1шт.

118024C1

NUT

J-type spring

6шт.

179093

HOLE PLUG BUTTON,9/32"

PHC 9/32"

1шт.

5

118083C1

PANEL

ASSY, headliner composite

1шт.

1250618C1

CAPTIVE WASHER SCREW,Pan HD, 1/4" - 20 x 3/4"

SCREW W/WASHER, 1/4-20 x 3/4

12шт.

1276119C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

SCREW, no. 10-16 x 5/8 polyseal p/hdcr tap

11шт.

118676

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

.219 x .500 x .036 phc

11шт.

6

109269C1

STRIP

roof eyebrow trim

2шт.

ROPS with serial no. 107806 and below.

1шт.

6

143294C1

SEALING STRIP

STRIP, roof eyebrow trim

2шт.

ROPS with serial no. 107807 and above.

1шт.

7

111595C1

PANEL

wheel well, LH, filler

1шт.

7

111596C1

PANEL, wheel well, RH, filler

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4 x 3/4 crg type 5

6шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

6шт.

8

109491C3

FENDER ASSY.

FENDER ASSY, LH

1шт.

8

109492C3

FENDER ASSY.

FENDER ASSY, RH

1шт.

118103C1

SEALING STRIP

SEAL, fender

2шт.

1250531C1

CONDUIT

convoluted LH

1шт.

ROPS with serial no. 107807 and above.

1шт.

1250532C1

CONDUIT

convoluted RH

1шт.

ROPS with serial no. 107807 and above.

1шт.

9

117762C1

CLAMP

CLIP, fender tube

4шт.

ROPS with serial no. 107806 and below.

1шт.

71450C1

TUBE, rear

2шт.

10

111562C2

PANEL

rear lamp LH

1шт.

10

111563C2

PANEL

rear lamp RH

1шт.

143310C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 polyseal

4шт.

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW, 10-16 x 1/2 polyseal

4шт.

11

111533C1

SUPPORT

fender LH, filler

1шт.

11

111534C1

SUPPORT

fender RH, filler

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 5/16 znd flat

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 flange lock

18шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

4шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 hex-hd cap

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 flange lock

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

143088C1

PLUG

9/16 button, Replaces 432476

4шт.

12

109432C2

LADDER

ASSY, LH long

1шт.

12

109433C2

LADDER

ASSY, RH long

1шт.

12

111550C1

LADDER ASSY, LH short

1шт.

12

111551C1

LADDER ASSY, RH short

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

BOLT, 3/8 x 1-3/8 type 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

7шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

614452R1

WASHER

.406 x 1.250 x .090

4шт.

21741R1

WASHER

.406 x .876 x .105

8шт.

13

117854C1

STEP

ASSY, hi-clear ladder extension, tractor w/hi-clear attachment

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

14

118058C1

SEALING STRIP

corner post foam

4шт.

15

118066C1

ANGLE

hose trim, plate

2шт.

1270762C1

SELF-TAP SCREW

#10-16 x 3/4 polyseal p/hdcr tap

4шт.

118676

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

.219 x .500 x .036 phc

4шт.

16

118025C1

CAP

front corner, LH

1шт.

16

118026C1

CAP

front corner, RH

1шт.

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW, 10-16 x 1/2 polyseal c/r s/d tap

4шт.

70571C1

DECAL

PRODUCT GRAPHIC, ROPS caution instr.

1шт.

111480C3

DECAL

PRODUCT GRAPHIC, ROPS safety caution

1шт.

117674C91

PARTS ACCESSORY, short ladder, For use with mid-mounted cultivator and equipment, Consists of (1) LH ladder, 111550C1, (1) RH ladder, 111551C1 and the mounting hardware

1шт.
