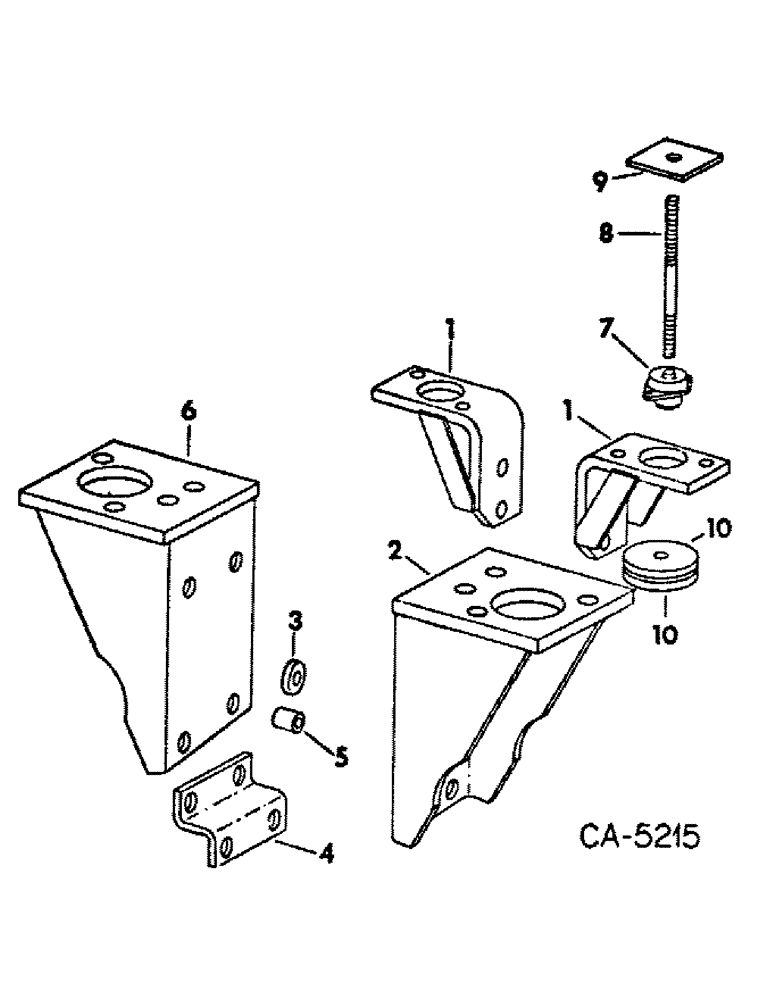

Запчасти Case IH 1586 (13-03) - SUPERSTRUCTURE, PLATFORM SUPPORT (05) - SUPERSTRUCTURE

1

117703C2

SUPPORT

ASSY, front, mount

2шт.

223450

BOLT,Hex, 3/4" - 10 x 2", Gr 8

3/4 x 2 pln type 8

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

2

117706C1

BRACKET ASSY, LH rear, mount

1шт.

20660R1

SCREW,Hex, 5/8"-11 x 1 5/8", G5, Full Thd

BOLT, 5/8 x 1-5/8 pln type 8

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

117759C2

WASHER

rear mount, spacer

8шт.

375624R1

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 8

5/8 x 3-3/4 pln type 8

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

NOT USED THIS APPLICATION

1шт.

5

NOT USED THIS APPLICATION

1шт.

6

117707C1

BRACKET ASSY, RH rear, mount

1шт.

20660R1

SCREW,Hex, 5/8"-11 x 1 5/8", G5, Full Thd

BOLT, 5/8 x 1-5/8 pln type 8

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

117722C4

INSULATOR

ASSY, isolation, mount

4шт.

7

117722C4GV

INSULATOR

ASSY, isolation, mount

4шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

102637

NUT,1/2"-13, G5

8шт.

8

117766C1

STUD

ISO-mount mounting

4шт.

9

117737C1

PLATE

BAR, tapped, plate

4шт.

10

135783C1

SPACER

flat, washer

4шт.

117779C1

WASHER,13/16" x 1 3/4" x .219", HDN

13/16 x 1-3/4 x .219 znd

4шт.

280954

NUT,3/4"-10, G5

12шт.
