Запчасти Case IH 1586 (13-02) - SUPERSTRUCTURE, STEERING AND GEAR SELECTOR SUPPORTS (05) - SUPERSTRUCTURE

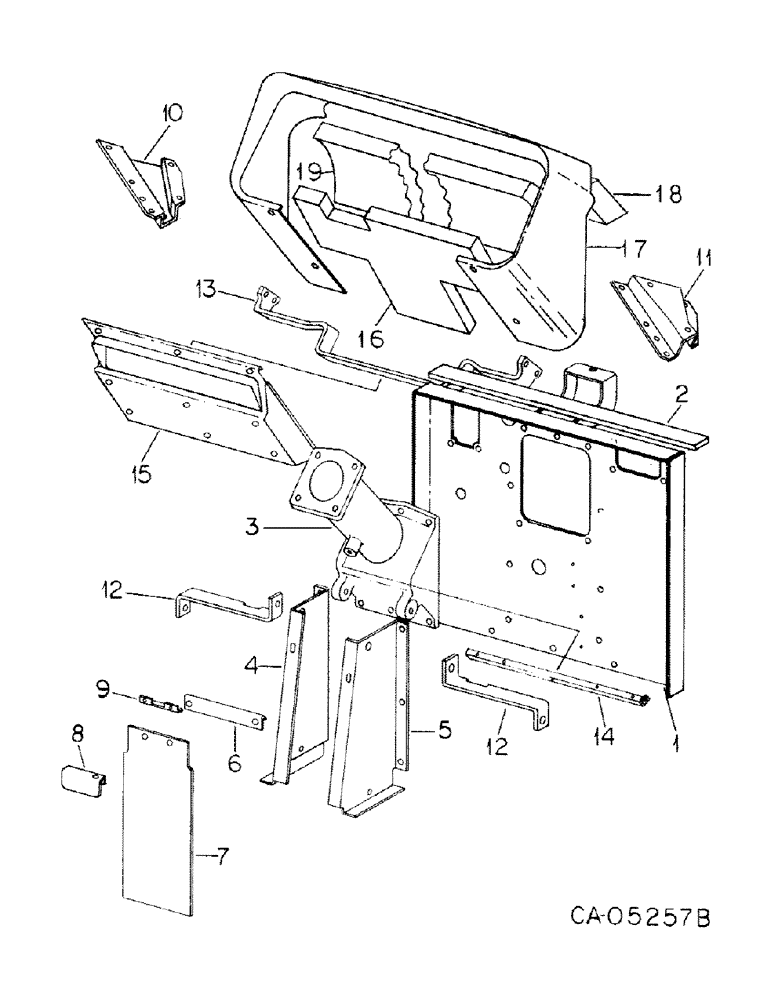

Схема запчастей Case IH 1586 - (13-02) - SUPERSTRUCTURE, STEERING AND GEAR SELECTOR SUPPORTS (05) - SUPERSTRUCTURE
12
15
3
4
6
18
1
12
10
16
8
2
19
11
17
9
14
7
13
5

Артикул

Название

Примечание

Количество

1

104010C3

PANEL

ASSY, firewall

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

20285H

WASHER

.406 x .75 x .105 flat

6шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

102635

NUT,3/8"-16, G5

4шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

172482

SCREW,Hex, 3/8" - 16 x 3/4"

3/8 x 3/4 h/hd tap

1шт.

2

109359C1

STRIP, cab & firewall top, seal

1шт.

3

103929C1

SUPPORT

inst. panel & steering wheel

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

4

104023C1

SUPPORT

ASSY, firewall LH

1шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

142619H

WASHER

.406 x .750 x .105

2шт.

5

104024C1

SUPPORT

ASSY, firewall RH

1шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

142619H

WASHER

.406 x .750 x .105

2шт.

6

104027C1

SUPPORT

ASSY, supp cover mtg, plate

1шт.

160514

SCREW

1/4 x 1/2 pln p/hdcr mach

2шт.

7

120441C91

SUPPORT

firewall support, cover

1шт.

8

104030C1

SUPPORT

firewall supp cover, handle

1шт.

9

104031C1

SUPPORT

firewall supp cover, retainer

1шт.

436525C1

RIVET,Pop, 1/4" x 1/2"

pop

2шт.

10

104016C1

SUPPORT

ASSY, inst. panel LH

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

104036C1

NUT

instrument housing mounting

2шт.

11

104017C1

SUPPORT

ASSY, inst. panel RH

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

104036C1

NUT

instrument housing mounting

2шт.

12

104021C1

SUPPORT

pedal stop, BRACKET

2шт.

NLS

NO LONGER SERVICED

2шт.

13

104020C2

SUPPORT

inst. housing lower

1шт.

104036C1

NUT

instrument housing mounting

5шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

M10 x 30 pln class 8.8

2шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5MM phc

2шт.

30284R1

NUT,M10, Cl 10

M10 class 10

2шт.

14

1251645C92

SUPPORT

ASSY, pedal return spring mounting, angle

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8-16 x 3/4 hex-hd flange lock cap

1шт.

102635

NUT,3/8"-16, G5

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

Q1504

WASHER

.406 x .875 x .054

1шт.

15

104032C3

HOUSING

lower instrument

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, inst housing mounting, No. 10 x 3/4

9шт.

16

120355C1

PAD

SHEET, plyurethane foam insulation

1шт.

17

1251804C2

HOUSING

upper instrument

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, inst. housing mounting, No. 10 x 3/4

11шт.

18

1251803C2

STRIP

polyurthane foam insulation

1шт.

19

120356C1

PAD

SHEET, polyurethane foam insulation

1шт.

Выбрано товаров: 48
