Запчасти Case IH 1586 (07-30) - DRIVE TRAIN, SADDLE ASSY, TRACTOR WITH ALL WHEEL DRIVE, ELWOOD FRONT AXLE, S/N 18811 AND BELOW (04) - Drive Train

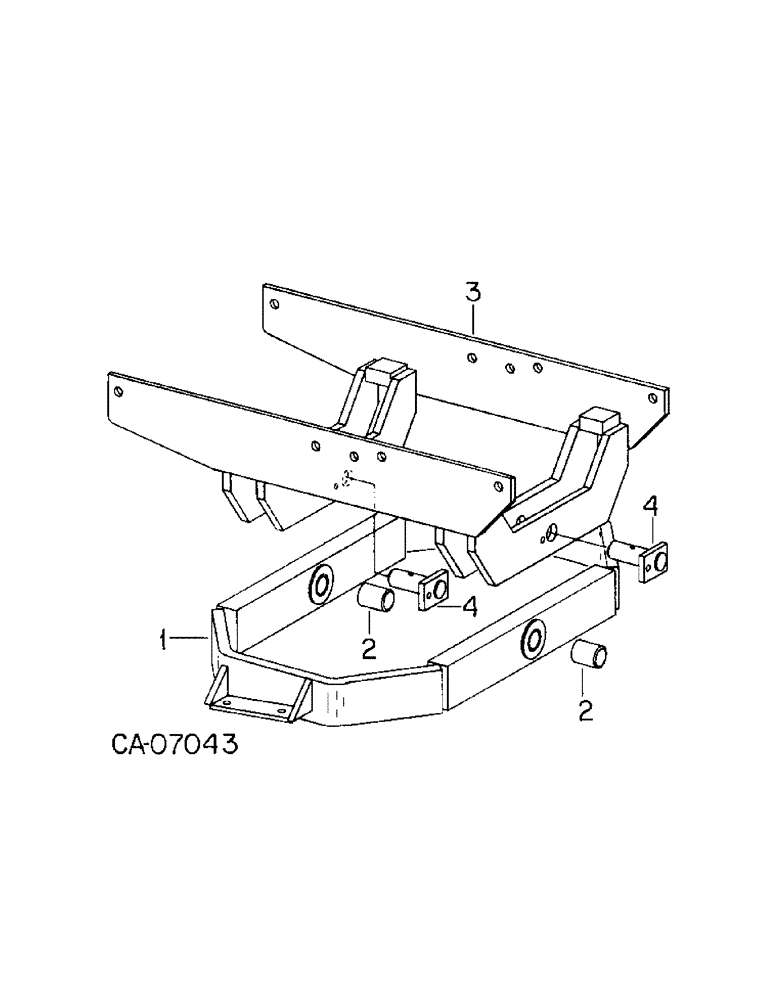

Схема запчастей Case IH 1586 - (07-30) - DRIVE TRAIN, SADDLE ASSY, TRACTOR WITH ALL WHEEL DRIVE, ELWOOD FRONT AXLE, S/N 18811 AND BELOW (04) - Drive Train
2
1
4
3
4
2

Артикул

Название

Примечание

Количество

1

148815C1

SADDLE, lower

1шт.

2

148816C2

BRACKET

SPACER, bushing

2шт.

3

148817C1

SADDLE, upper

1шт.

4

148818C3

HITCH PIN

PIN saddle

2шт.

172745

WASHER, 1.625 x 3.500 x .153 pln

4шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

271589

SCREW,Hex, 5/8" - 18 x 2 1/2", Gr 5

5/8-NF x 2-1/2 pln type 5

4шт.

425-1110

NUT,5/8"-18, G5

8шт.

Выбрано товаров: 10
