Запчасти Case IH 1586 (07-30[A]) - SADDLE ASSY TRACTORS WITH ALL WHEEL DRIVE ELWOOD FRONT AXLE, SERIAL NO. 18812 AND ABOVE (04) - Drive Train

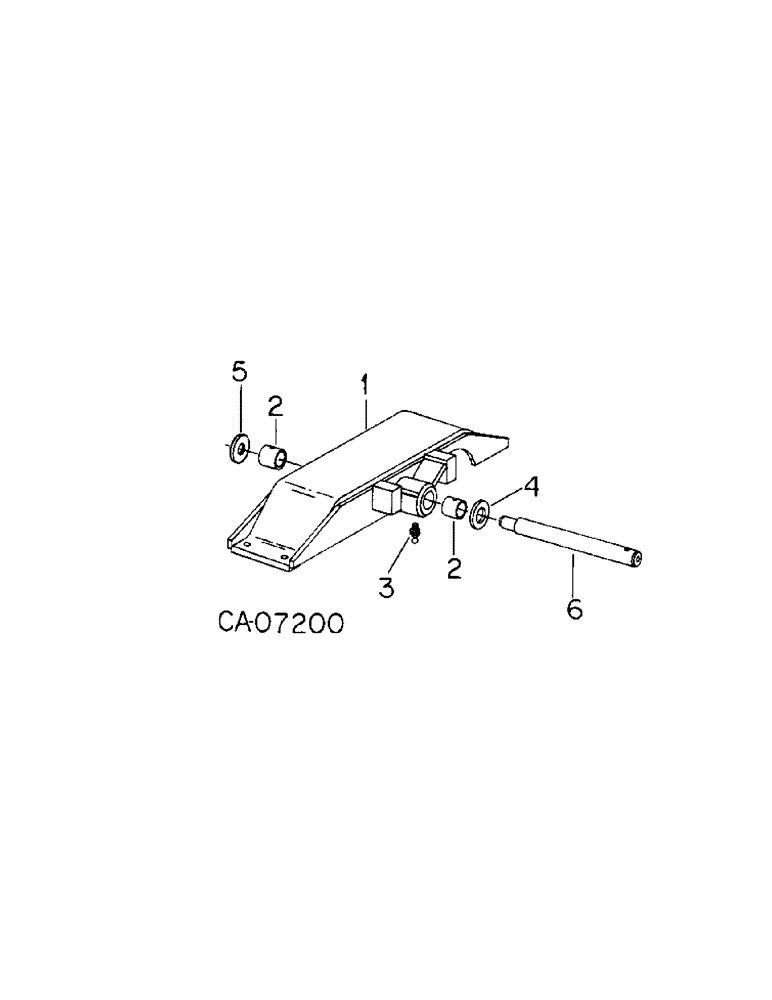

Схема запчастей Case IH 1586 - (07-30[A]) - SADDLE ASSY TRACTORS WITH ALL WHEEL DRIVE ELWOOD FRONT AXLE, SERIAL NO. 18812 AND ABOVE (04) - Drive Train
3
2
6
4
2
5
1

Артикул

Название

Примечание

Количество

1

1259667C1

SADDLE

axle mounting, Replaces 1251733C1

1шт.

20523R1

BOLT,5/8" x 2 1/2", Gr 8

5/8-NF x 2-1/2 type 8

4шт.

144423H

LOCK NUT,5/8" - 18, GC

NUT, LOCK, 5/8"-18, GC

4шт.

2

1251734C1

BUSHING

2шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

4

1251735C1

WASHER

pivot tube, front, spacer

1шт.

5

1251736C1

WASHER

pivot tube, rear, spacer

1шт.

6

1251737C1

AXLE PIN

PIN, pivot

1шт.

U5360

AXLE PIN

PIN, 3/8 x 6.125 pln hd type 1

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Выбрано товаров: 10
