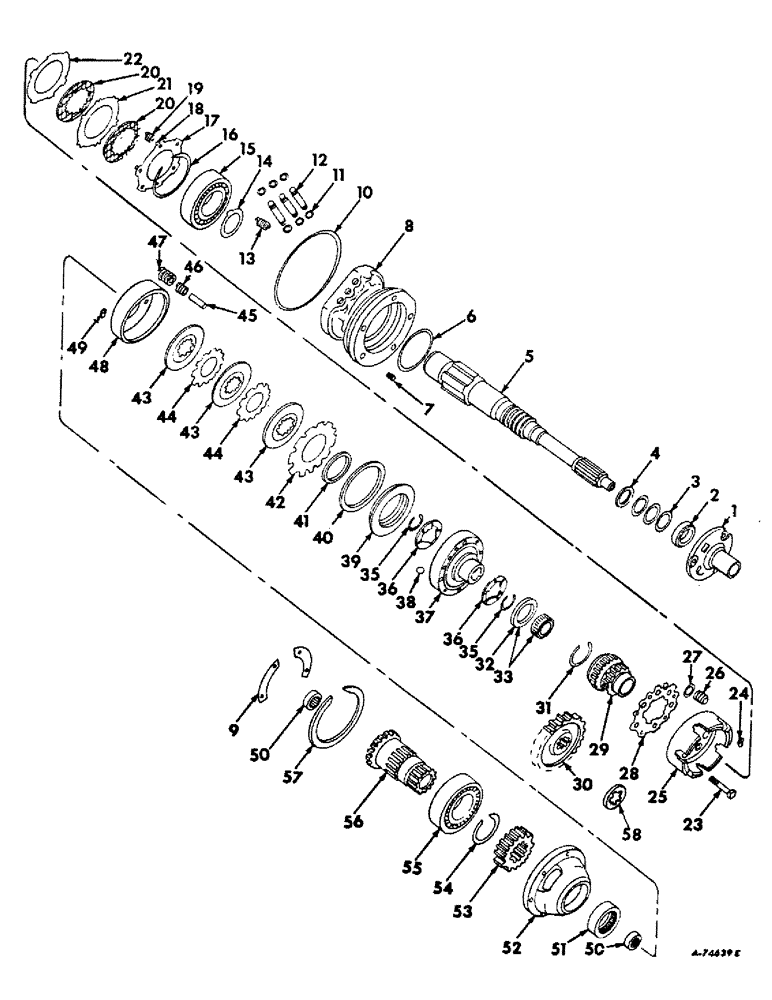

Запчасти Case IH 1586 (07-24) - DRIVE TRAIN, TORQUE AMPLIFIER, GEAR DRIVE TRACTORS (04) - Drive Train

1

67837C1

CAGE

CAGE, PTO drive shaft bearing

1шт.

234572A2

REMAN-TORQUE AMPLIF

IER

1шт.

1944097C1

CORE-TORQUE AMPLIF

Return Part Number

1шт.

1944096C2R

REMAN-TORQUE AMPLIF

IER Remanufactured Torque Amplifier

1шт.

1944039C2

CORE-TORQUE AMPLIF

IER Return Part Number, Torque Amplifier

1шт.

1944096C1R

REMAN-TORQUE AMPLIF

IER Remanufactured Torque Amplifier

1шт.

1944097C1

CORE-TORQUE AMPLIF

IER Return Part Number, Torque Amplifier

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

3шт.

2

535209R92

SEAL,49.02mm ID x 66.72mm OD x 7.92mm Thk

SEAL, IPTO oil shaft brg cage

1шт.

3

380234R1

RING

RING, clutch shaft seal

3шт.

4

384182R1

RETAINER

RETAINER, PTO drive shaft brg

1шт.

5

SHAFT W/THREE SCREW, 222459, clutch

1шт.

Not service separately, Order service package 1277207C91, New, or service package 1251699C91, Renewed.

1шт.

6

22414R1

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

O-RING, 5 x 5-1/4 x 1/8, bearing cage sealing

1шт.

7

222459

SCREW

SCREW, 5/16-18 x 5/16 f-pt set

3шт.

8

68136C1

CARRIER

CARRIER ASSY, torque amplifier and PTO drive

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

5шт.

9

380081R1

PLATE

PLATE, drive gear bearing lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 7/8 hex-hd cap

5шт.

9

380081R1

PLATE

PLATE, drive gear bearing lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

10

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

O-RING, 7-1/2 x 7-3/4 x 1/8, torque amplifier and PTO drive carrier

1шт.

11

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O-RING, 1/2 x 5/8 x 1/16, oil inlet tube

6шт.

12

382353R1

HYD TUBE,0.625" OD, 4.32" Length

TUBE, oil inlet

3шт.

13

382337R1

SPRING

SPRING, torque amplifier drive gear lub baffle

2шт.

14

380238R4

BAFFLE

BAFFLE, torque amplifier drive gear lub

1шт.

15

ST3025

BALL BEARING,75mm ID x 130mm OD x 22mm W

BEARING, torque amplifier drive gear, Replaces ST3011

1шт.

16

382346R1

RING, SNAP

RING SNAP RING, torque amplifier lock-up clutch internal snap

1шт.

17

PLATE ASSY, torque amplifier lock-up, clutch backing

1шт.

Not serviced separately, Order package 75036C92.

1шт.

18

19841R1

DOWEL,1/4" x 1/2"

PIN, 1/4 x 1/2 dowel

6шт.

19

382666R1

VALVE SPRING

SPRING, lock-up clutch

6шт.

20

PLATE, torque amplifier lock-up clutch driven

2шт.

21

PLATE, torque amplifier lock-up clutch driving

1шт.

Not serviced separately, Order package 75036C92.

1шт.

22

PLATE, torque amplifier lock-up clutch piston backing

1шт.

Not serviced separately, Order package 75036C92.

1шт.

23

383406R1

BOLT,Sq Hd, 7/16" - 20 x 3"

BOLT, torque amplifier lock-up clutch carrier, Serial Range: -12838

3шт.

381915R1

NUT,7/16"-20, G8

NUT, 7/16-20 hex

3шт.

23

860300R1

BOLT,Hex, 7/16" - 20 x 2 3/4", Gr 8

BOLT, 7/16-20 x 2-3/4 znd hex-hd, Start Serial: 12839

1шт.

24

382339R1

LOCK WASHER

WASHER, torque amplifier clutch carrier lock

3шт.

25

CARRIER, torque amplifier lock-up clutch

1шт.

Not service separately, Order service package 1277207C91, New, or service package 1251699C91, Renewed.

1шт.

181335

BOLT,Hex, 5/16" - 24 x 11/16", Gr 5

BOLT, Hex, 5/16"-24 x 11/16", G5, Full Thd

3шт.

26

382341R1

PISTON

PISTON, torque amplifier lock-up clutch

6шт.

27

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING, 3/4 x 1 x 1/8, lock-up clutch piston

6шт.

28

382340R2

GASKET

GASKET, torque amplifier lock-up clutch carrier

1шт.

29

GEAR ASSY, torque amplifier drive, 25T

1шт.

Not service separately, Order service package 1277207C91, New, or service package 1251699C91, Renewed.

1шт.

30

68142C2

GEAR

GEAR, torque amplifier drive, 47T

1шт.

31

382665R1

RING

RING, one way clutch retainer internal snap

1шт.

32

381086R1

RING

RING, sprag clutch seal

1шт.

33

73935C91

PACKAGE

PACKAGE, torque amplifier one way clutch, Includes ref. 32

1шт.

34

NOT USED IN THIS APPLICATION

1шт.

35

336000R1

SNAP RING,#175, 1.640", Ext

RING, hyd clutch carrier snap

2шт.

36

380240R1

THRUST WASHER

WASHER, hyd clutch carrier thrust

2шт.

37

CARRIER ASSY, hyd clutch

1шт.

Not service separately, Order service package 1277207C91, New, or service package 1251699C91, Renewed.

1шт.

38

17006R1

BALL

BALL, 3/16 cr-stl

1шт.

39

380242R1

PISTON

PISTON, hydraulic clutch

1шт.

40

380244R1

SEALING RING

RING, hyd clutch piston outer seal

1шт.

41

380243R1

RING

RING, hyd clutch piston inner seal

1шт.

42

PLATE, hyd clutch piston backing

1шт.

Not serviced separately, Order package 75036C92.

1шт.

43

PLATE, hyd clutch driven

3шт.

Not serviced separately, Order package 75036C92.

1шт.

44

PLATE, hyd clutch driving

2шт.

Not serviced separately, Order package 75036C92.

1шт.

45

380245R2

PIN

PIN, hyd clutch spring guide

9шт.

46

380146R1

SPRING, hyd clutch small

9шт.

47

380247R1

SPRING

SPRING, hyd clutch large

9шт.

48

PLATE, hyd clutch backing

1шт.

Not service separately, Order service package 1277207C91, New, or service package 1251699C91, Renewed.

1шт.

49

382347R2

LOCK WASHER

WASHER, hyd clutch backing plate lock

3шт.

50

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING, clutch shaft rear needle

2шт.

50

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

BEARING, main shaft needle front

1шт.

51

380078R91

NEEDLE BEARING

BEARING, drive gear front

1шт.

52

68138C1

CAGE

CAGE, drive gear bearing

1шт.

53

68042C1

GEAR

GEAR, constant mesh drive, 28T

1шт.

54

68623C1

RING

RING, drive gear external snap

1шт.

55

ST3025

BALL BEARING,75mm ID x 130mm OD x 22mm W

BEARING, drive gear ball, Replaces ST697

1шт.

56

68139C1

SHAFT

SHAFT, constant mesh gear quill

1шт.

57

392683R1

RING

RING, drive gear internal snap

1шт.

58

71147C2

SPACER

SPACER, TA driver gear

1шт.

75036C92

KIT

PACKAGE, torque amplifier hyd clutch driven plate overhaul, Replaces 531150R92, Consists of ref. nos. 3, 6, 10, 11, 14, 17, 20, 21, 22, 24, 27, 28, 32, 40, 41, 42, 43, 44 and 49

1шт.

79020C93

GASKET KIT

PACKAGE, torque amplifier seal, Consists of

1шт.

.

INSTRUCTIONS (NSS)

1шт.

535208R92

SEAL,30.23mm ID x 44.6mm OD x 7.92mm Thk

SEAL, drive shaft oil

1шт.

535209R92

SEAL,49.02mm ID x 66.72mm OD x 7.92mm Thk

SEAL, IPTO shaft brg cage oil

1шт.

22414R1

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

O-RING, brg cage

1шт.

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O-RING, oil inlet tube

6шт.

380067R4

GASKET

GASKET, clutch hsg rear frame

1шт.

224903C1

GASKET

GASKET, clutch hsg rear frame

1шт.

384078R1

GASKET

GASKET, clutch hsg bottom cover

1шт.

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

O-RING, suction port

1шт.

380112R1

GASKET

GASKET, clutch hsg cover

1шт.

380081R1

PLATE

PLATE, drive gear brg lock

2шт.

382335R3

GASKET

GASKET, MCV light

2шт.

382336R4

GASKET

GASKET, MCV hvy

2шт.

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

O-RING, pump pressure port

4шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

O-RING, power steering input

4шт.

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

O-RING, power steering pressure port

2шт.

354057R2

VALVE

VALVE, power steering return check

1шт.

382334R1

SPRING

SPRING, power steering return check

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-RING, 6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

380091R2

THRUST WASHER,59.51mm ID x 82.55mm OD x 1.52mm Thk

WASHER, countershaft brg locknut

1шт.

362796R1

O-RING,0.924" ID x 0.103" Width

O-RING, return port

1шт.

380315R1

GASKET

GASKET, rear frame front cover

1шт.

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

O-RING, 13/16 x 15/16 class 6

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-RING, 1/2 OD tube class 6

1шт.

1277207C91

PACKAGE

PACKAGE, TA assy service, new, Consists of ref. nos. 3, 5, 7, 8, 10, 13 through 29, 31, 32, 33, 35 through 49 and clamp, 39135H

1шт.

1251699C91

PACKAGE

PACKAGE, TA assy service, renewed, Consists of ref. nos. 3, 5, 7, 8, 10, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 31, 32, 33, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48 and 49

1шт.
