Запчасти Case IH 1586 (07-19) - DRIVE TRAIN, PARK LOCK BRAKE, RANGE TRANSMISSION (04) - Drive Train

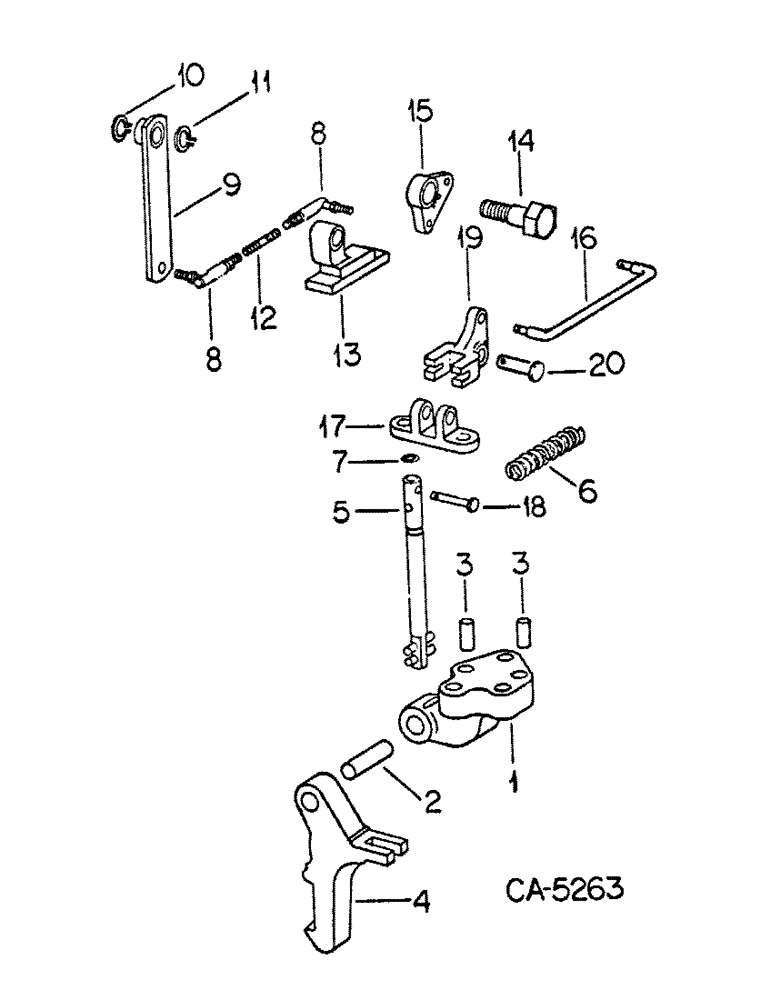

Схема запчастей Case IH 1586 - (07-19) - DRIVE TRAIN, PARK LOCK BRAKE, RANGE TRANSMISSION (04) - Drive Train
15
4
1
12
16
11
17
6
20
8
3
19
9
7
14
2
8
3
13
18
10
5

Артикул

Название

Примечание

Количество

1

384055R12

BRACKET

ASSY, parking lock lever support

1шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 hex-hd cap

3шт.

2

120749C1

PIN,19.05mm OD x 58.42mm L

lock lever

1шт.

3

20024R1

PIN

3/8 x 1 dowel

2шт.

4

139141C1

LEVER

parking lock, Replaces 384094R3

1шт.

5

71921C91

SHAFT

ASSY, parking lock actuating

1шт.

19967R1

DOWEL,1/4" x 1 1/4"

PIN, 1/4 x 1.250 pln hdn dowel

1шт.

6

120023C1

SPRING

park lock, Serial Range: -14558

1шт.

6

139130C1

SPRING

park lock, Start Serial: 14559

1шт.

7

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16, parking lock actuating shaft

1шт.

8

158397H1

BALL JOINT

JOINT, 3/8-24 RH thd ball

2шт.

144419H

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 hex nylon insert

2шт.

9

104882C1

BAR

ASSY, park pivot, lever

1шт.

10

23090R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

11

384098R1

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

12

104790C1

STUD

park lock actuating, rod

1шт.

118625

NUT

3/8-24 hex jam

2шт.

13

120025C2

SUPPORT

park lock bellcrank

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

14

383153R3

BOLT,Shldr, Hex, 5/8" - 11 x 1.80"

BOLT, park lock bellcrank pivot

1шт.

15

120365C91

LEVER

ASSY, park lock bellcrank

1шт.

104876C1

BUSHING

park lock lever

1шт.

16

120024C1

ROD

park over center

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

2шт.

17

384259R1

BRACKET

park lock operating lever

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

18

385098R1

HEADED PIN,1/4" x 1 11/16"

PIN, operating lever

1шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8

1шт.

19

384260R1

LEVER

park lock

1шт.

20

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1-25/32 clevis

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

Выбрано товаров: 32
