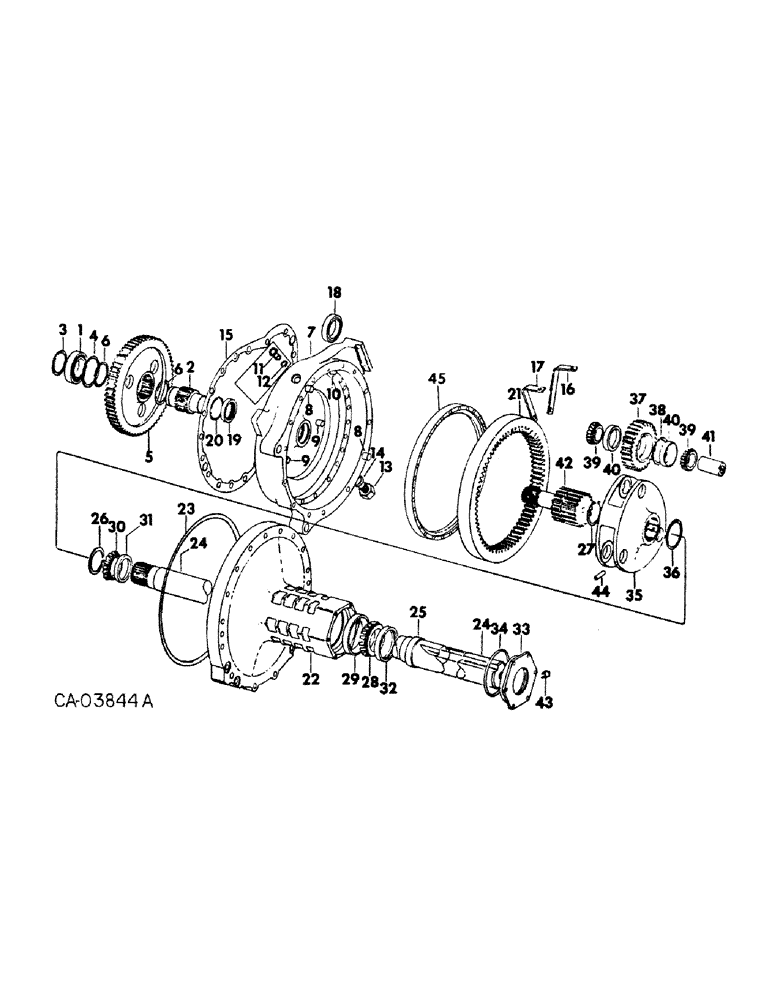

Запчасти Case IH 1586 (07-13) - DRIVE TRAIN, REAR DRIVE AXLE (04) - Drive Train

1

ST3009

BALL BEARING,65mm ID x 122.19mm OD x 23mm W

BEARING, driven gear hub inner ball

2шт.

2

67220C1

HUB

diff output driven gear

2шт.

3

614762C1

SNAP RING,#255, 2.413, Ext

RING, driven gear iner brg ext snap

2шт.

4

67226C1

OIL SEAL

RING, driven gear brg int snap

2шт.

5

67334C1

GEAR

diff output driven, 56T

2шт.

6

67246C1

RING, SNAP

RING, output driven gear snap

4шт.

7

67215C21

HOUSING ASSY, rear axle carrier adapter, Includes ref. nos. 8 & 9

2шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-1/2 hex-hd cap

4шт.

269181R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

6шт.

8

19968R1

DOWEL,3/4" x 1 3/4"

PIN, .750 x 1.750 dowel

4шт.

9

71267C1

PIN

brake piston oversized dowel (Or as required)

6шт.

10

23896R1

DOWEL,5/8" x 3"

PIN, .625 x 3.000 hardened dowel

4шт.

11

NOT USED IN THIS APPLICATION

1шт.

12

NOT USED IN THIS APPLICATION

1шт.

13

9410358

PLUG

9/16-18 str thd o-ring boss

2шт.

14

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 tube

2шт.

15

380225R2

GASKET

rear, Serial Range: frame-adapter

2шт.

16

NOT USED IN THIS APPLICATION

1шт.

17

NOT USED IN THIS APPLICATION

1шт.

18

67254C91

ROLLER BEARING,46.91mm ID x 80.03mm OD x 21mm W

diff output shaft outer roller

2шт.

19

67255C91

NEEDLE BEARING,Needle, 69.85mm ID x 88.9mm OD x 25.4mm W

driven gear hub outer needle

2шт.

20

382665R1

RING

driven gear hyd brg snap

2шт.

21

120942C1

GEAR

ring, 72T, Replaces 67217C1

2шт.

17184R1

SCREW,Hex, 5/8" - 11 x 7"

5/8-11 x 7 hex-hd cap

28шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-3/4 hex-hd cap

2шт.

22

67336C4

CARRIER

rear axle

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 hex-hd cap

36шт.

23

67241C1

O-RING,21.475" ID x 0.139" Width

rear axle carrier

2шт.

24

67224C11

SHAFT

AXLE ASSY, rear

2шт.

25

67225C1

OIL SEAL

RING, rear axle outer brg spacer

2шт.

26

598318R1

RING, SNAP

RING, axle retainer snap

2шт.

27

67751C1

RING, SNAP

RING, axle retainer snap

2шт.

28

ST2059

BEARING ASSY

BEARING, rear axle outer cone

2шт.

29

ST810

ROLLER BEARING,92.075 mm ID x 150 mm OD x 35.966 mm

BEARING, rear axle outer cup, Replaces 619697C1

2шт.

30

67250C91

BEARING ASSY,3.5433" ID x 5.7087" OD x 1.378"

rear axle inner cone

2шт.

31

67251C1

BEARING CUP,144.98mm OD x 26.90mm Thk

BEARING, rear axle inner cup

2шт.

32

67256C1

OIL SEAL

rear axle oil

2шт.

33

67218C1

CAP

rear axle carrier

2шт.

NLS

NO LONGER SERVICED

12шт.

34

264681R1

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

rear axle cap seal

2шт.

35

67216C1

CARRIER, planet gear

2шт.

36

67231C1

SHIM

rear axle adj, .007

6шт.

36

67230C1

SHIM

rear axle adj, .012

4шт.

36

67233C1

SHIM

rer axle adj, .003

1шт.

36

67232C1

SHIM

rear axle adj, .004

1шт.

36

67229C1

SHIM

rear axle adj, .030

1шт.

37

70284C91

GEAR WHEEL

GEAR, planet, 27T, Includes ref. no. 38

6шт.

38

67240C1

RING

planet gear brg spacer snap

6шт.

39

533726R91

BEARING

planet gear cone

12шт.

40

533727R1

BEARING, CUP

BEARING, planet gear cup

12шт.

41

67227C1

SHAFT

planet gear bearing

6шт.

42

67221C1

SHAFT

sun gear, 18T

2шт.

43

67228C1

BRACKET, rear wheel inner position gage

2шт.

44

19555R1

PIN,5/16" x 1", Coiled

6шт.

45

NOT USED THIS APPLICATION

1шт.
