Запчасти Case IH 1586 (07-12) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train

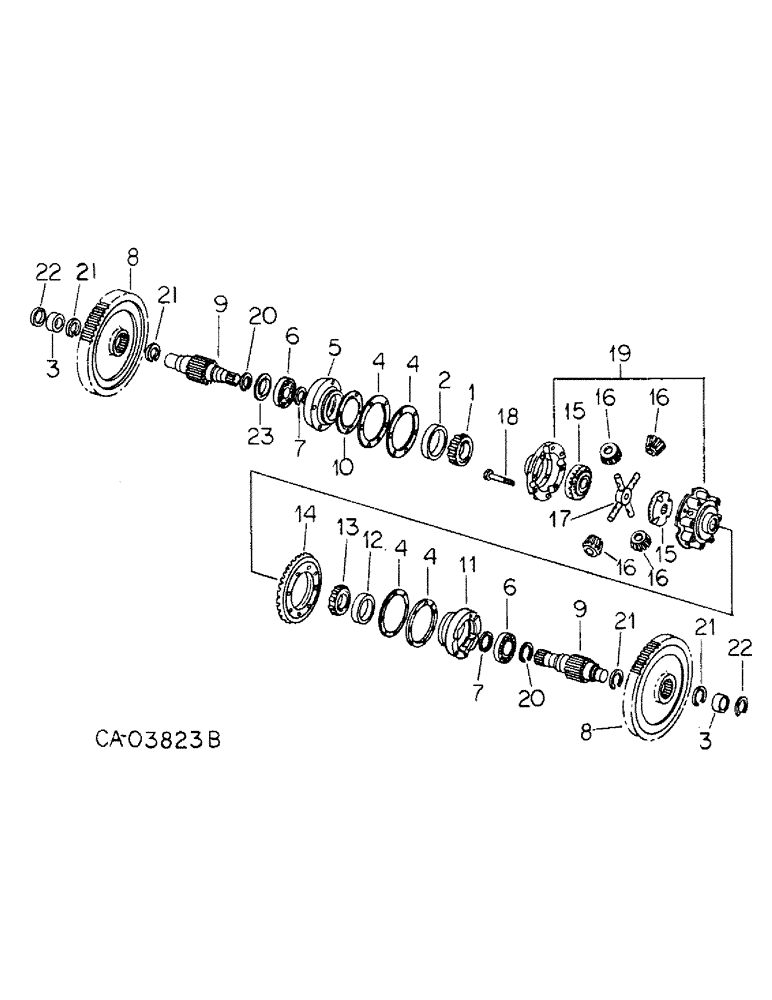

Схема запчастей Case IH 1586 - (07-12) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train
3
4
9
8
6
12
3
18
21
22
22
20
7
10
11
4
21
4
21
1
14
4
16
7
15
15
9
23
2
21
20
16
6
8
19
16
16
5
17
13

Артикул

Название

Примечание

Количество

1

529452R91

ROLLER BEARING

ASSY, LH cone

1шт.

2

529453R1

BEARING, CUP

BEARING, differential LH cup

1шт.

3

67406C1

BEARING, ROLLER, CYL,35mm ID x 46.84mm OD x 26mm W

RACE, diff output shaft outer brg, Replaces 67407C1 and 67408C1

2шт.

4

SHIM, differential bearing retainer, Available in the following size options

1шт.

4

385155R1

SHIM

.003 (Use as required)

1шт.

4

380205R1

SHIM

.004 (Use as required)

1шт.

4

380202R1

SHIM

.007 (Or as required)

3шт.

4

380203R1

SHIM

.012 (Or as required)

4шт.

4

380204R1

SHIM

.030 (Use as required)

1шт.

5

67398C1

RETAINER

differential brg LH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

6

ST3016A

BALL BEARING,55mm ID x 100mm OD x 21mm W

BEARING, diff output shaft inner

2шт.

7

327058R1

RING, SNAP

RING, diff output shaft inner brg snap

2шт.

8

67329C1

GEAR

diff output shaft, 30T

2шт.

9

67399C1

SHAFT

differential output

2шт.

10

67397C1

BAFFLE

LH differential bearing oil

1шт.

11

67396C1

RETAINER

differential brg RH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

12

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

BEARING, differential RH roller cup

1шт.

13

622336C91

ROLLER BEARING

ASSY, RH roller cone

1шт.

14

67763C91

CROWN WHEEL

BEVEL GEARS, matched set, Consists of

1шт.

GEAR (NSS)

1шт.

SHAFT (NSS)

1шт.

TAG (NSS)

1шт.

15

380190R2

GEAR

differential bevel, 28T

2шт.

16

361061R3

PINION

differential bevel, 15T

4шт.

17

393637R2

DIFF. SPIDER

SPIDER, differential

1шт.

18

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

12шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

differential case bolt

12шт.

19

528706R3

CASE

ASSY, differential case only, does not include ref 15 - 17

1шт.

20

67405C1

RING, SNAP

RING, diff output shaft brg snap

2шт.

21

583564R1

SNAP RING,#250, 2.356, Ext

RING, diff output shaft gear snap

4шт.

22

376909R1

SNAP RING,#137, 1.291", Ext

RING, diff shaft outer brg snap

2шт.

23

NOT USED IN THIS APPLICATION

1шт.

Выбрано товаров: 34
