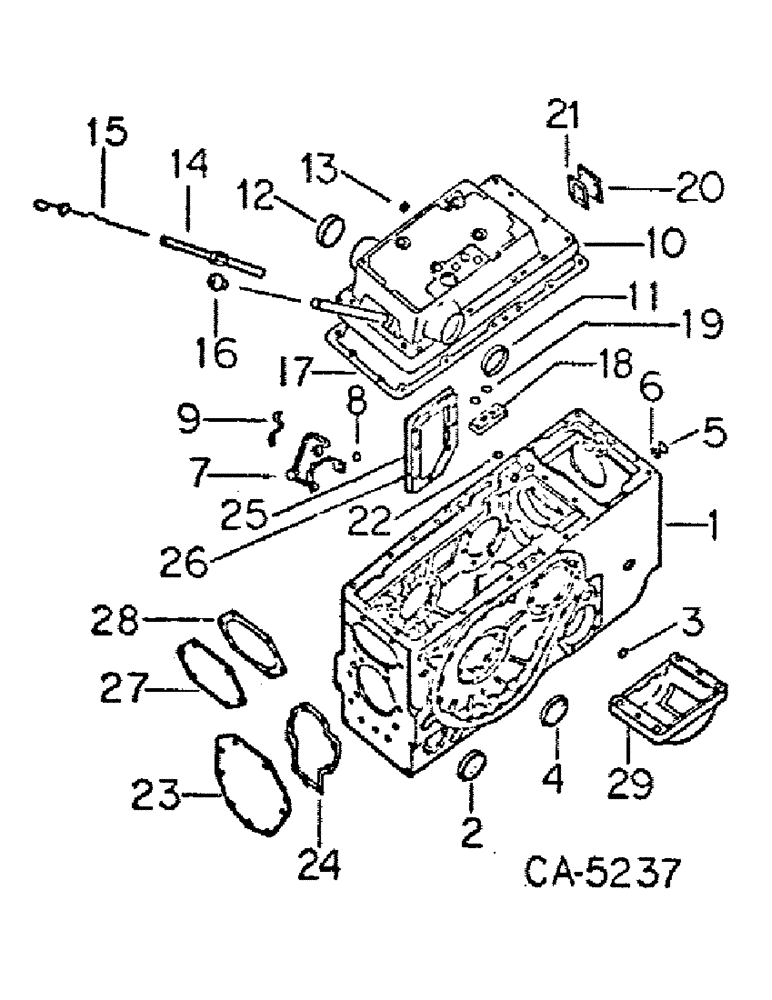

Запчасти Case IH 1586 (07-06) - DRIVE TRAIN, REAR FRAME AND COVERS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
127910C91
FRAME
ASSY, rear, Replaces 68517C92 and 139132C91
1шт.
On orders for 68517C92 also furnish o-ring 707253R1, adapter 127903C1, gasket 380067R4, suction tube 133685C1, tube support 133686C1 & o-ring 293726R1, On orders for 139132C91 also furnish suction tube 133685C1, tube support 133686C1 & o-ring 293726R1, Consists of
1шт.
FRAME W/TUBES (NSS)
1шт.
537545R92
SEAL
OIL SEAL
1шт.
PIN (NSS)
7шт.
172558
PLUG,Exp, 1 1/4"
1шт.
172574
PLUG,Exp, 1 1/2"
1шт.
383331R1
PLUG,Cup, 4.26"
2шт.
444788
DRAIN PLUG,Sq Soc, 1/2"-14 NPTF
PLUG
2шт.
9409948
PLUG,Sq Soc, 3/4"-14 NPTF
1шт.
444788
DRAIN PLUG,Sq Soc, 1/2"-14 NPTF
PLUG, 1/2-14 auto sq-soc pipe
2шт.
9409948
PLUG,Sq Soc, 3/4"-14 NPTF
3/4-14 auto sq-soc pipe
1шт.
9409949
DRAIN PLUG
3/4-14 auto sq-soc pipe
1шт.
2
383331R1
PLUG,Cup, 4.26"
torsion bar cup
2шт.
3
172574
PLUG,Exp, 1 1/2"
1-1/2 expansion pump suction port
1шт.
4
172558
PLUG,Exp, 1 1/4"
1-1/4 expansion
1шт.
5
252483R1
O-RING,-218, 70 Duro, 1.234" ID x .139" Thk
1-1/4 x 1-1/2 x 1/8, 1586, clutch housing suction tube, Serial Range: -14650
1шт.
5
707253R1
O-RING,-222, 70 Duro, 1.484" ID x .139" Thk
1-1/2 x 1-3/4 x 1/8, 1586, clutch housing suction tube, Start Serial: 14651
1шт.
6
380271R1
RETAINER
sealing ring, 1586, Serial Range: -14650
1шт.
6
127903C1
RETAINER
sealing ring, 1586, Start Serial: 14651
1шт.
7
67742C1
TUBE
ASSY, trans lub
1шт.
406579R1
WASHER
lub tube bracket spacer
1шт.
8
67745C1
SEALING RING
mainshaft fitting
1шт.
380286R1
BOLT,Flg, 1/2" - 13 x 1 1/2"
upper lub tube mounting bracket
2шт.
406579R1
WASHER
lub tube mounting bracket
3шт.
9
67748C2
TUBE
ASSY, diff ret upper lub
1шт.
10
1259630C91
COVER ASSY
COVER, rear frame, Refer to rear frame cover this group for details, Replaces 104779C91 by also ordering oil lever gauge assy 1259628C1
1шт.
20203R1
BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5
SCREW, 5/8-11 x 3-7/8 hex-hd cap
16шт.
444776
PLUG,Sq Soc, 1/4"-18 NPTF
1/4-18 sq-soc pipe
1шт.
444782
PLUG,Sq Soc, 3/8"-18 NPTF
3/8-18 sq-soc pipe
1шт.
11
380173R1
PLUG,Cup, 3.762"
Rockshaft opening RH Cup, 3.762"
1шт.
12
380174R1
PLUG,Cup, 3.510"
Rockshaft opening LH Cup, 3.510"
1шт.
13
380263R1
PLUG
eccentric shaft & mounting bolt openings cup
5шт.
14
104161C1
TUBE,5.62" Length
ASSY, oil level gauge, 1586, Serial Range: -22212
1шт.
14
1259628C1
TUBE,4.52" Length
ASSY, oil level gauge, 1586, Serial Range: -22213
1шт.
15
104164C1
DIPSTICK
GAUGE ASSY, oil level
1шт.
16
367677R91
BREATHER
ASSY, oil filler tube cup
1шт.
17
380264R2
GASKET
rear frame cover
1шт.
18
382758R1
COVER
draft control port
1шт.
179843
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
2шт.
19
387926R2
RING
draft control port cover seal
2шт.
20
382415R1
COVER
valve adj opening, w/o draft control
1шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
6шт.
21
382416R1
GASKET
valve adj opening
1шт.
22
388306R1
RING,32.77mm ID x 39.12mm OD x 3.17mm Thk
SEAL, rear frame pressure port oil
1шт.
23
380272R1
COVER
independent PTO opening
1шт.
413-818
BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5
SCREW, 1/2-13 x 1-1/8 hex-hd cap
9шт.
24
381467R1
GASKET
independent PTO opening cover
1шт.
25
380330R3
COVER
drive att opening
1шт.
179883
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
8шт.
26
385757R2
GASKET
drive att opening cover
1шт.
27
383329R1
COVER
draft control adj opening
1шт.
271556
WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5
SCREW, 5/8-11 x 1-1/4 hex-hd cap
6шт.
28
383330R1
GASKET
draft control adj opening cover
1шт.
29
108508C1
SUPPORT
ASSY, swinging drawbar pivot, 1586, Serial Range: -16505
1шт.
29
108508C1
SUPPORT
ASSY, swinging drawbar pivot, All 1586 w/three point hitch w/telescoping sway limiting system
1шт.
29
72475C1
SUPPORT
ASSY, swinging drawbar pivot, 1586, Start Serial: 16506
1шт.
271562
SHIELD,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 hex-hd cap
4шт.
20324R1
DOWEL,1" x 2"
PIN, 1 x 2 dowel
1шт.
Выбрано товаров: 60
