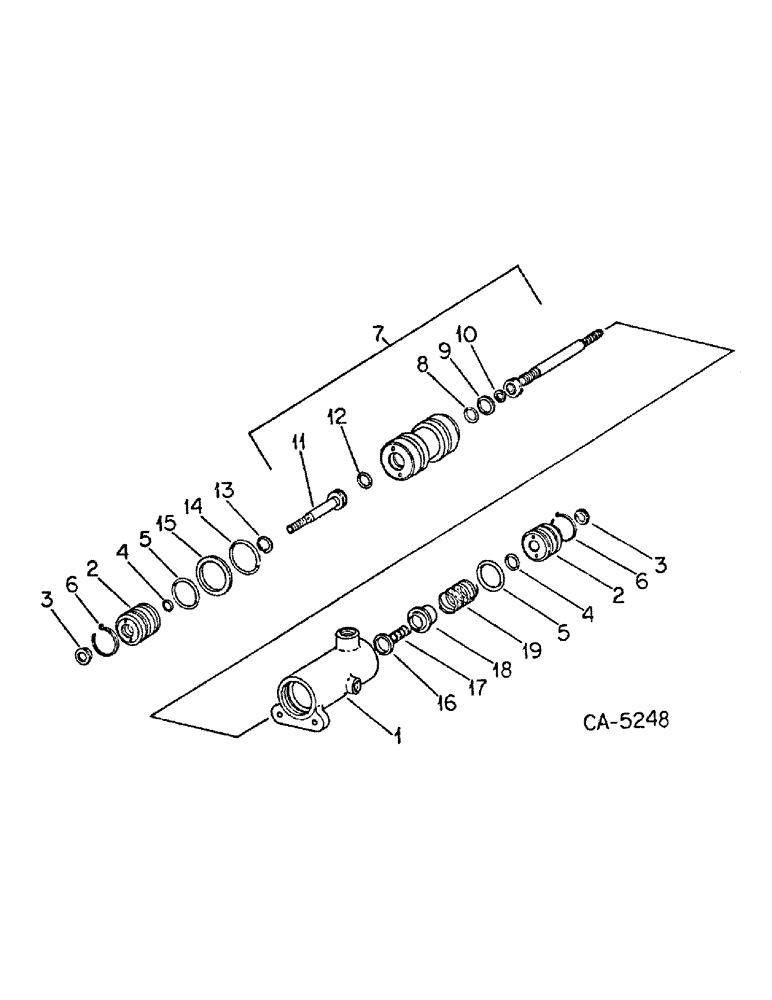

Запчасти Case IH 1586 (07-05) - DRIVE TRAIN, CLUTCH BOOSTER (04) - Drive Train

113965C93

CYLINDER

BOOSTER ASSY, clutch

1шт.

1

BODY, clutch booster, Order clutch booster assy (NSS)

1шт.

2

113967C1

CAP

end, 1586, Serial Range: -12515

2шт.

2

133794C1

CAP

end, 1586, Start Serial: 12516

2шт.

3

WIPER, rod, order package, 75414C91 (NSS)

2шт.

4

O-RING, 11/16 x 1/2 x 3/32, Order package, 75414C91 (NSS)

2шт.

5

O-RING, 2 x 1-13/16 x 3/16, order package, 75414C91 (NSS)

2шт.

6

113968C1

SPRING

retaining ring

2шт.

7

123293C92

PISTON

ASSY, booster

1шт.

8

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

11/16 x 9/16 x 1/116

1шт.

9

113972C1

RING

reaction piston seal

1шт.

10

603540C1

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

1шт.

11

123026C2

STUD,25.15mm OD x 134.62mm L

output rod

1шт.

12

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

1шт.

13

303322R1

SNAP RING,1.00", Int, #100

1шт.

14

327085R1

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1-3/4 x 1-9/16 x 3/32

2шт.

15

114199C2

SEAL,44.68mm ID x 51.03mm OD x 3.17mm Thk

teflon

2шт.

16

529044R1

LOCK WASHER

diff lock boot

1шт.

17

114003C1

SPRING

valve

1шт.

18

113975C1

CUP

spring retainer

1шт.

19

114198C1

SPRING

booster piston

1шт.

75414C91

SEAL

clutch booster seal service, Consists of ref. nos. 3, 4, 5, 6, 8, 9, 10, 12, 13, and 14, 15

1шт.
