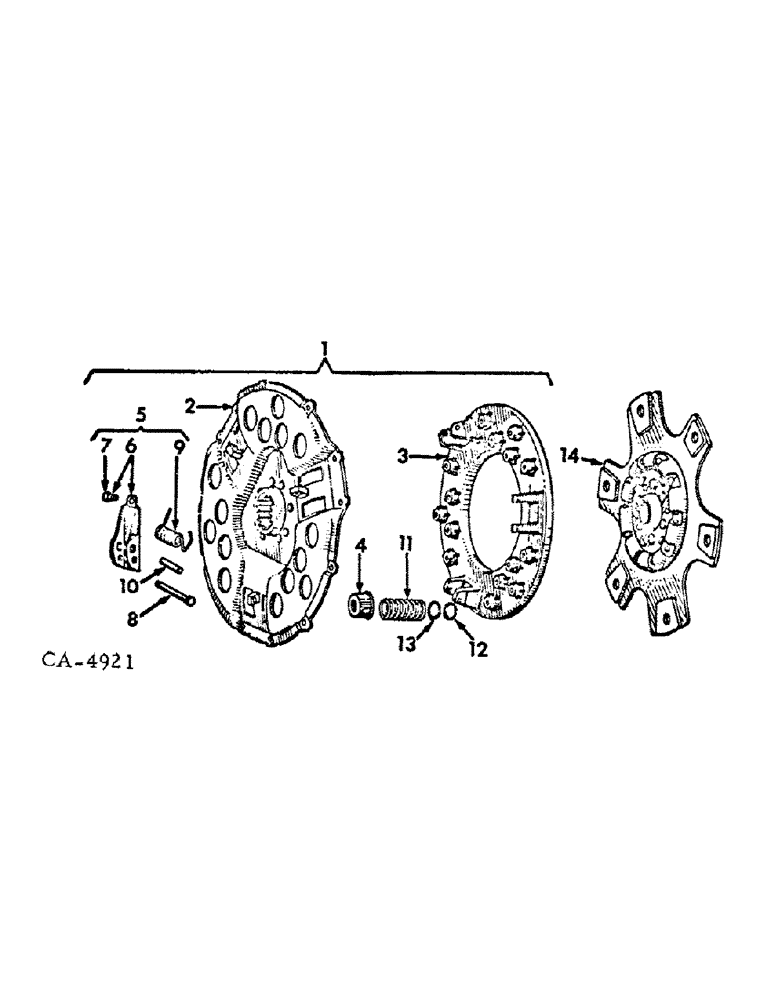

Запчасти Case IH 1586 (07-02) - DRIVE TRAIN, CLUTCH (04) - Drive Train

1

67735C92

CLUTCH PLATE

PLATE ASSY, clutch pressure

1шт.

1

67735C92R

REMAN-CLUTCH PLATE

Remanufactured, Clutch, 14 in, 18 Tooth Hub

1шт.

1

67735C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

1

1251687C91

REMAN-CLUTCH ASSY

Plate Assy, clutch pressure, renewed

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

12шт.

2

69597C1

PLATE

PLATE ASSY, clutch pressure back

1шт.

3

390807R1

PLATE ASSY.

PLATE, clutch pressure

1шт.

4

353316R1

SPRING CUP

CUP, clutch pressure spring

15шт.

5

390808R92

PACKAGE

PACKAGE, clutch lever

3шт.

6

390819R92

LEVER ASSY, clutch

3шт.

7

163479R3

ADJUSTMENT SCREW,Hex, 3/8" - 24 x 0.545", Drilled

SCREW, clutch lever adjusting

3шт.

8

146809R1

PIN

PIN, clutch lever

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

120394

WASHER,3/8", SAE

WASHER, 11/32 x 13/16 x .065

3шт.

9

390809R2

SPRING

SPRING, clutch lever

3шт.

10

146810R1

AXLE PIN

PIN, lever pivot

3шт.

11

172062R1

SPRING

SPRING, clutch pressure

15шт.

12

311291C1

INSULATING WASHER

WASHER, insulating

15шт.

13

311292C1

WASHER

WASHER, retainer

15шт.

14

67736C1

DISC

DISC ASSY, clutch driven, Dyna Life

1шт.

14

142200C2R

REMAN-CLUTCH DISC

1586, Reman For New P/N 67736C1

1шт.

14

142200C2C

CORE-CLUTCH DISC

Return Part Number

1шт.

14

1251679C1

REMAN-CLUTCH ASSY

DISC ASSY, clutch driven, Dyna Life, renewed for 67736C1

1шт.
