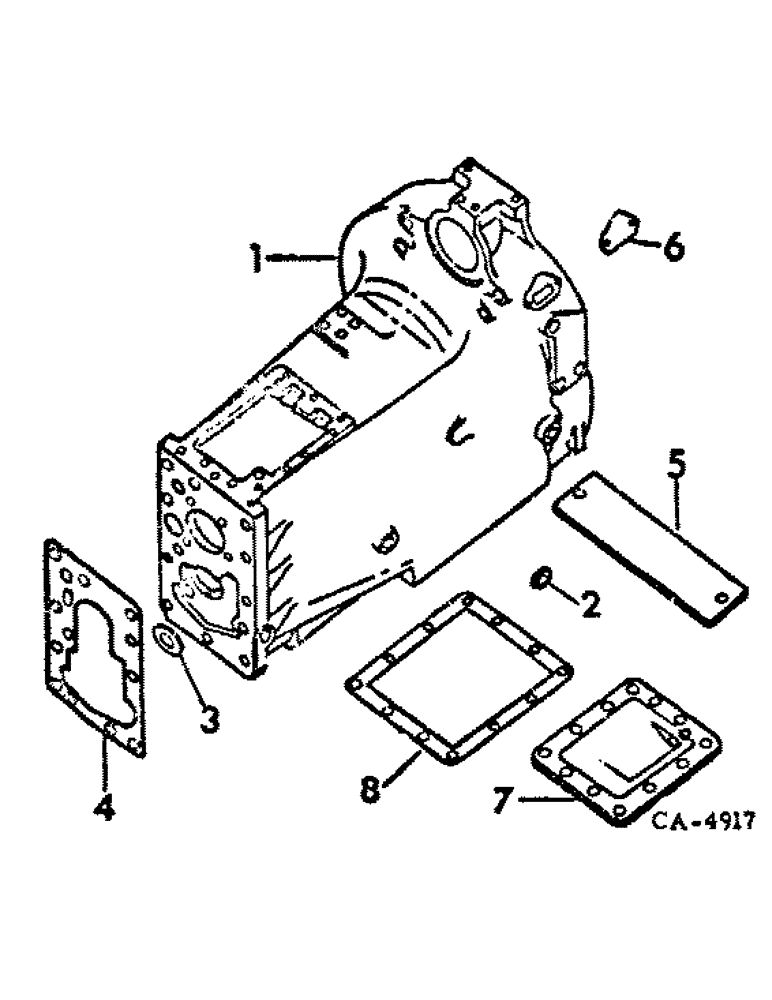

Запчасти Case IH 1586 (07-01) - DRIVE TRAIN, CLUTCH HOUSING (04) - Drive Train

1

139156C93

HOUSING

ASSY, clutch, Replaces 71831C91, Consists of

1шт.

HOUSING (NSS)

1шт.

1017956R1

PLUG,Cap, .610" OD

4шт.

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG

1шт.

381611R1

SEAT

1шт.

TUBE, suction (NSS)

1шт.

TUBE, diff. lub (NSS)

1шт.

TUBE, spray lub (NSS)

1шт.

TUBE, power steering pressure (NSS)

1шт.

TUBE, power steering return (NSS)

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

24877R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

9шт.

26166R1

12 PT SCREW,Flg, 5/8" - 11 x 2 1/4"

SCREW, 5/8 x 2.250 phc type 8 12 pt flg

1шт.

25711R1

WASHER

.656 x 1.312 x .150

10шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 automotive sq-soc-hd pipe

1шт.

2

381611R1

SEAT

valve

1шт.

3

384114R91

NEEDLE BEARING

countershaft frt needle

1шт.

4

380067R4

GASKET

clutch housing

1шт.

5

380068R1

BAR

COVER, clutch compartment

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

6

104402C1

COVER

engine timing opening

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

384077R1

COVER ASSY, clutch housing bottom

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 automotive sq-soc pipe

1шт.

103735

HOUSING

PIN, 1/4 x 1/2 chamfered str, clutch housing bottom cover

1шт.

8

384078R1

GASKET

clutch housing cover

1шт.

1017954R1

PLUG,Cap, .485" OD

plastic closure, for shipping or storing

2шт.

1017956R1

PLUG,Cap, .610" OD

Plastic closure, optional w/104940, for shipping or storing Cap, .610" OD

4шт.

104940

PLUG

no. 4 cork, Optional w/1017956R1, for shipping or storing

4шт.
