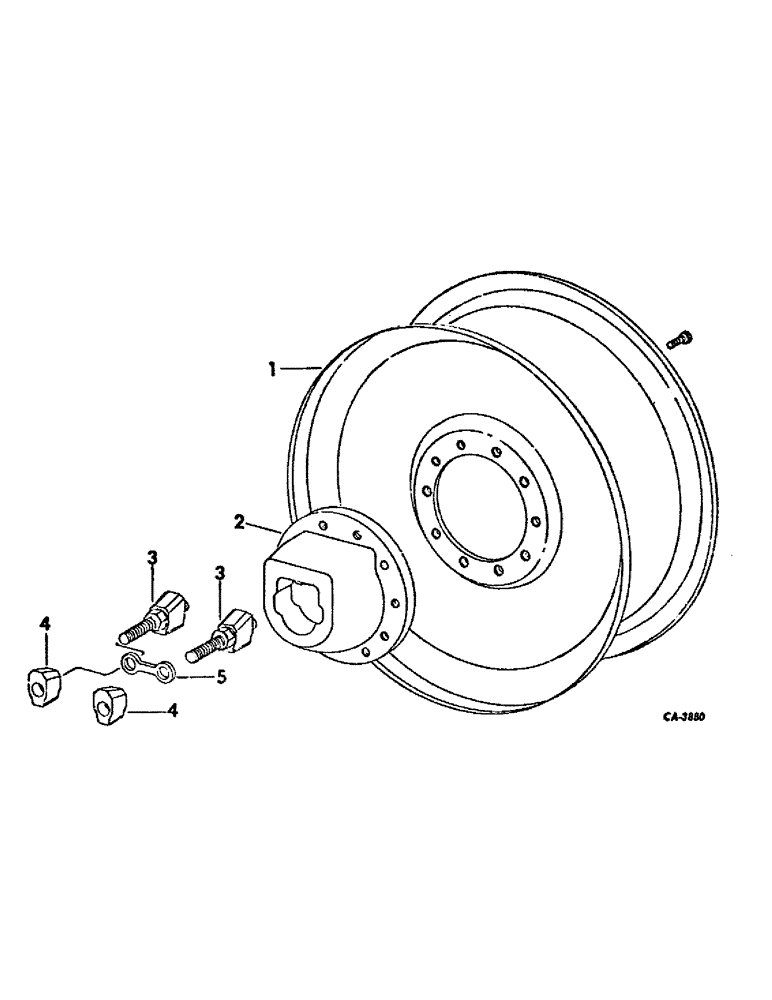

Запчасти Case IH 1586 (15-04) - WHEEL AND TRACTION, OUTER DUAL REAR WHEELS Wheels & Traction

1

139266C1

WHEEL

W16L-38 w/disc rear, For 18.4-38 tire, Replaces 67474C2

2шт.

1

139267C1

WHEEL

W18L-38 w/disc rear, For 20.8-38 tire, Replaces 68676C2, also furnish (10) screws 271838 and (10) washers 390311C1, Serial Range: -16924

1шт.

271838

PIVOT,Hex, 7/8" - 14 x 2 1/4", Gr 5

7/8-NF x 2-1/4 type 5

20шт.

390311C1

WASHER,15/16" x 1 3/4" x .134", HDN

.938 x 1.750 x .134 hdn, Serial Range: -16924

20шт.

320546R1

BOLT (SPREADER),Tapper, 7/8" - 14 x 2.53"

BOLT, rear wheel mounting, For wheels, 67474C2 and 68676C2 with countersunk mounting bolt holes

20шт.

2

67337C1

HUB

dual wheel wedge lock

2шт.

3

67475C1

WEDGE

ASSY, wheel

4шт.

4

67477C1

WEDGE

wheel inner

4шт.

5

67478C1

LINK

wedge

2шт.
