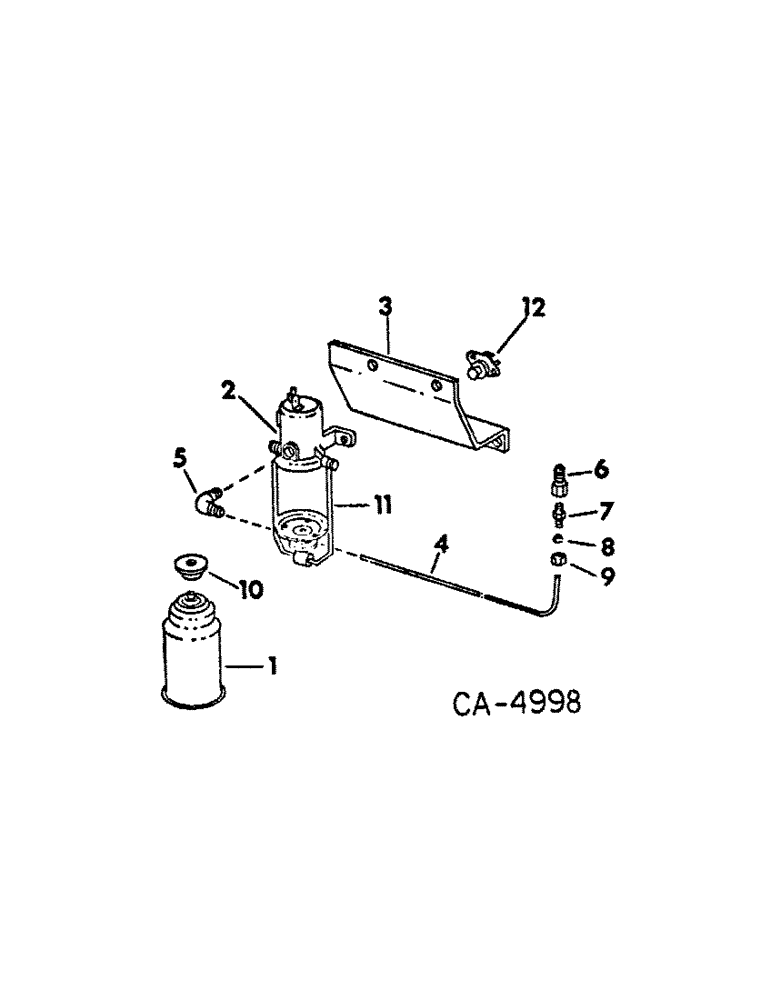

Запчасти Case IH 1586 (12-08) - POWER, ETHER STARTING Power

1

385064R91

FLUID

ether starting 12 oz. can

1шт.

2

121842C91

SOLENOID SWITCH

SOLENOID ASSY, ether injection, Includes ref. nos. 10 and 11

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

13/32 x 11/16 x .051

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

3

104412C2

BRACKET

ether starting solenoid

1шт.

138241

HEX SOC SCREW,3/8" - 16 x 3/4"

2шт.

4

TUBE ASSY, ether solenoid to manifold, Use 20 in. of 1/8 OD tubing from a 50 ft. roll marked 995059R1 and 2 nuts 121220, 2 sleeves 121322

1шт.

5

140304

ELBOW

1/8-27 90 deg ball sleeve tube

1шт.

6

269635R91

NOZZLE CAP

NOZZLE, starting fluid

1шт.

7

NLS

NO LONGER SERVICED

CONNECTOR, tube

1шт.

8

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

1шт.

9

121220

TUBE NUT

NUT, tube connector

1шт.

10

395686R1

GASKET

ether starting injector

1шт.

11

121851C1

RETAINER

BAIL ASSY, injector

1шт.

12

397940R93

SWITCH

ether solenoid push button

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 C-Z slt-pan-hd mach

2шт.

138479

PLUG

WASHER, no. 10 ext tooth lock

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.
