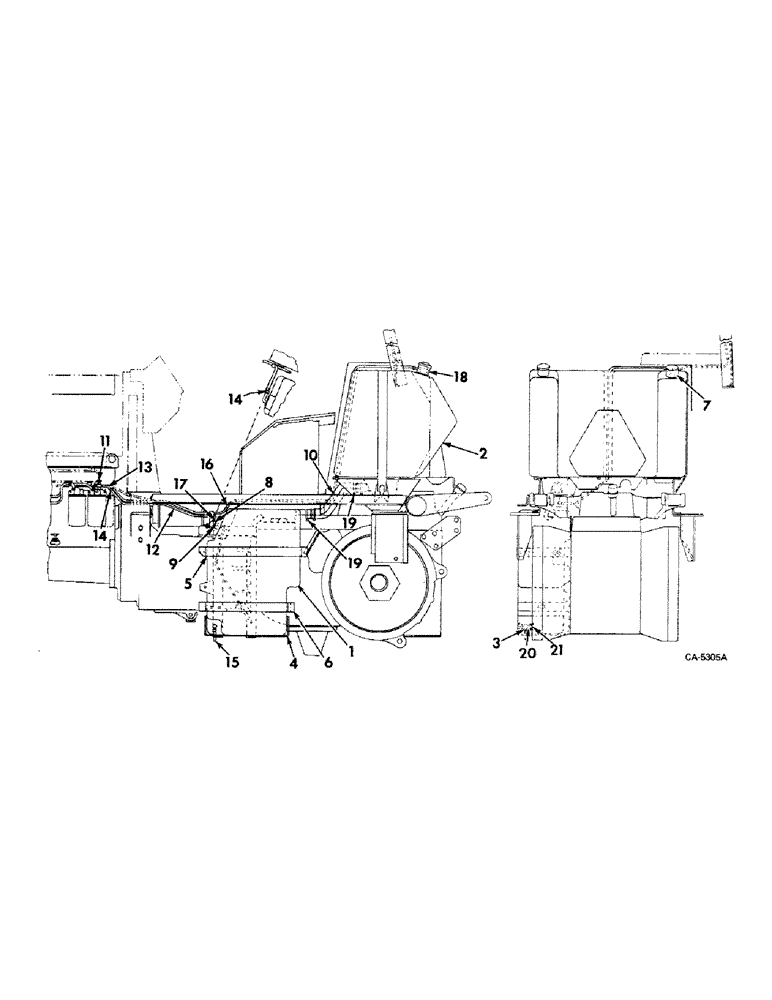

Запчасти Case IH 1586 (12-06) - POWER, AUXILIARY FUEL TANK Power

1

130238C1

TANK

ASSY, auxiliary fuel, Replaces 104274C2, Also order hose 1251826C1, Serial Range: -21346

1шт.

2

72907C92

TANK

ASSY, fuel, 63 gal

1шт.

3

104465C1

DRAIN VALVE

VALVE, fuel tank drain

1шт.

4

104282C1

BRACKET

ASSY, aux fuel tank

1шт.

271607

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5

SCREW, 3/4-10 x 1-1/2 hex-hd cap

2шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

.812 x 1.469 x .108 pln

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

5

104277C1

SUPPORT ASSY.

SUPPORT, upper aux fuel tank, strap

1шт.

6

104276C1

BRACKET

SUPPORT, lower aux fuel tank, strap

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

7

107531C2

ELECTRICAL GAUGE

GAUGE, electric fuel, sending unit, main fuel tank

1шт.

8

107532C2

SENDER UNIT

GAUGE, electric fuel, sending unit, auxiliary fuel tank

1шт.

9

104812C1

GASKET

sending unit

1шт.

423595

SCREW,Hex Hd, #10-24 x 1/2", w/LW

10-24 x 1/2 hex-hd mach with ext-tooth lockwasher

5шт.

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, no. 44 hose, Serial Range: -21346

1шт.

10

1251826C1

FUEL HOSE,41.40 mm ID x 283.20 mm, SAE 30R1 or SAE 30R1 TYPE 2

Auxillary Fuel Tank, 886 41.40 mm ID x 283.20 mm, SAE 30R1 or SAE 30R1 TYPE 2, Start Serial: 21347

1шт.

10

104275C1

FUEL HOSE,41.40 mm ID x 238.80 mm, SAE 30R1

Auxiliary fuel tank 41.40 mm ID x 238.80 mm, SAE 30R1, Serial Range: -21346

1шт.

11

161707C1

VALVE,5/8" - 18 x 1/4" NPTF

VALVE, fuel tank shutoff, Replaces 120424C1

1шт.

12

TUBE, aux tank shut off valve to fuel filter, 31 in., Purchase tubing material from bulk stock as per length shown, 1/2 O.D. tubing 74814C1

1шт.

13

120405C1

FUEL TUBE

TUBE ASSY, fuel line

1шт.

14

137597C1

ADAPTER,11/16" - 20

fuel line

2шт.

15

TUBE, aux tank drian, 2.5 in., Purchase tubing material from bulk stock as per length shown, 3/8 O.D. tubing 74813C1

1шт.

16

TUBE, fuel return, 102 in., Purchase tubing material from bulk stock as per length shown, 3/8 O.D. tubing 74813C1

1шт.

17

104733C1

CABLE

ASSY, receiving unit to aux tank sender

1шт.

18

104732C1

CABLE

ASSY, aux fuel tank sender to main tank sender

1шт.

19

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, no. 32 hose

2шт.

20

120156C1

NUT

fuel tank

1шт.

21

120157C1

CONNECTOR, ELEC

CONNECTOR, fuel tank

1шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

flat

1шт.
