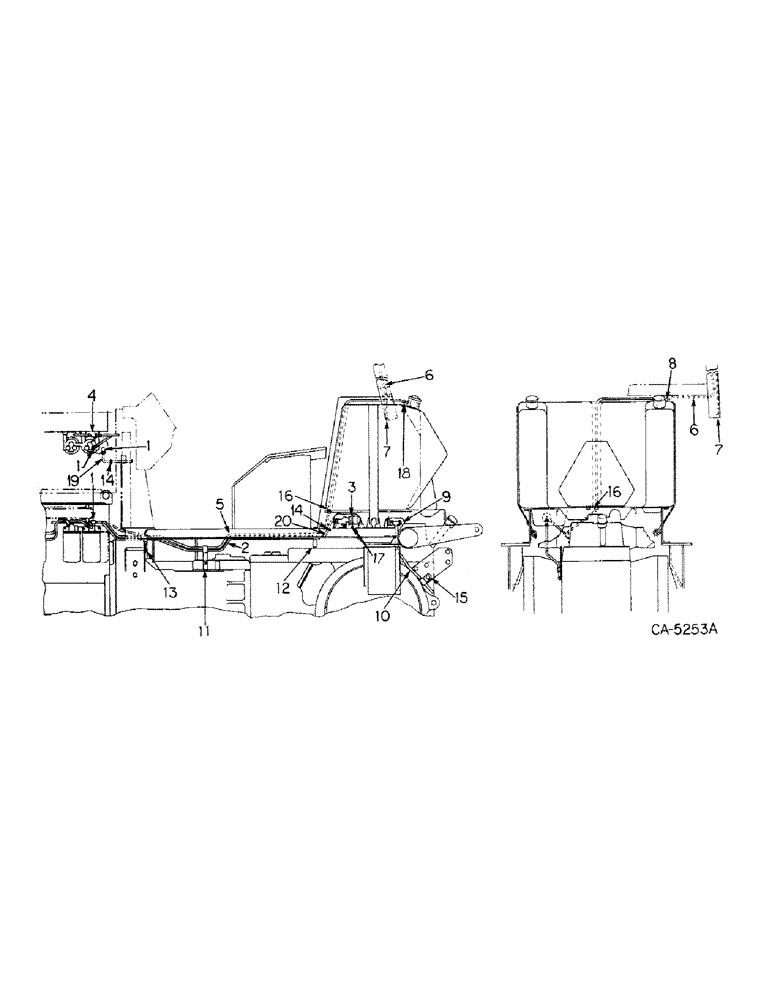

Запчасти Case IH 1586 (12-05) - POWER, FUEL PIPE AND CONNECTIONS Power

1

104469C1

ELBOW

MALE 90 DEG 1/2 tube, 1/4 pipe thread tank to filter, filter end

1шт.

2

TUBE, tank to filter, 56 inches, Purchase tubing material from bulk stock as per length shown, 1/2 O.D. tubing 74814C1

1шт.

3

405678R1

VALVE

fuel tank shut-off, fuel tank to fuel filter

1шт.

4

689382C1

TEE

fuel leak off, fuel return line, filter end

1шт.

5

TUBE, fuel line return, 102 inches, Purchase tubing material from bulk stock as per length shown, 3/8 O.D. tubing 74813C1

1шт.

6

TUBE, fuel tank vent, 48 inches, Purchase tubing material from bulk stock as per length shown, 1/4 O.D. tubing 74812C1

1шт.

7

374903R1

CLIP

fuel tank vent tube

1шт.

8

28068R1

HOSE CLAMP,#4, 1/4", Spring

CLAMP, fuel tank vent tube

1шт.

9

104465C1

DRAIN VALVE

VALVE, fuel tank drain

1шт.

10

TUBE, fuel drain line, 18 inches, Purchase tubing material from bulk stock as per length shown, 3/8 O.D. tubing 74813C1

1шт.

11

380053R1

CLIP, fuel lines, double

1шт.

12

120160C2

CLIP

fuel lines, angle double

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051) 3/8"

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

3/8-16 x 3/4 hex-hd cap

1шт.

13

120161C1

CLIP

fuel lines, twisted double

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051) 3/8"

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

3/8-16 x 3/4 hex-hd cap

1шт.

14

137597C1

ADAPTER,11/16" - 20

fuel line

2шт.

15

384558R1

CLIP

fuel tank drain tube

1шт.

16

363660R1

CLIP

fuel return tube

1шт.

20816R1

BOLT, 3/8-16 x 1/2 znd sq-nk crg

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051) 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

17

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, no. 32 hose

1шт.

18

872436R1

HOSE CLAMP,#6, 3/8", Spring

CLAMP, fuel line return

1шт.

19

NOT USED IN THIS APPLICATION

1шт.

20

120406C1

FUEL TUBE

TUBE ASSY, fuel line, fuel tank end

1шт.
