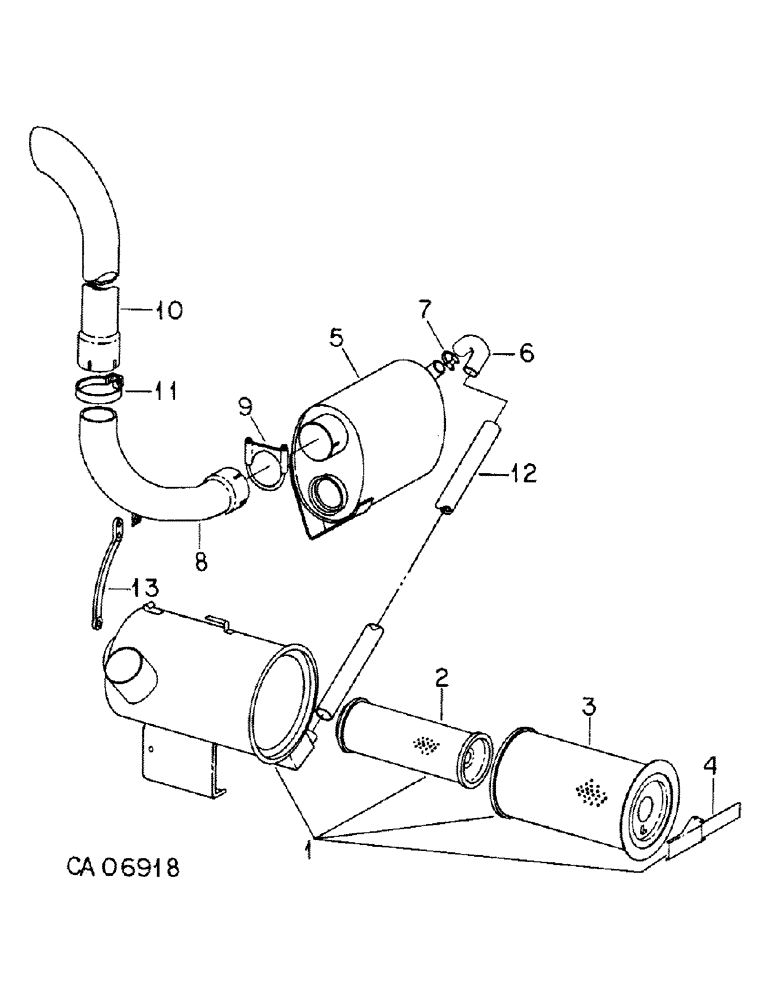

Запчасти Case IH 1586 (12-02) - POWER, ASPIRATED AIR CLEANER ATTACHMENT Power

1

146481C91

CLEANER ASSY, air

1шт.

2

67975C1

AIR FILTER

ELEMENT, safety

1шт.

3

67974C4

AIR FILTER

ELEMENT, main filter

1шт.

4

67980C2

LATCH

ASSY

1шт.

5

146530C1

MUFFLER

exhaust aspirator

1шт.

6

146537C1

ELBOW UNION

ELBOW, aspirator hose connection

1шт.

7

63713C1

CLAMP

aspirator hose

1шт.

8

146494C1

ELBOW UNION

ELBOW ASSY, exhaust muffler outlet

1шт.

9

895061C1

CLAMP,93.73mm ID

ASSY, muffler

1шт.

10

146490C2

PIPE

exhaust

1шт.

11

530925R1

CLAMP,88.9mm - 92.71mm

exhaust pipe

1шт.

12

407003R1

HOSE

aspirator

1шт.

13

76550C1

SUPPORT

exhaust elbow mounting

1шт.

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2 pln type 8

1шт.

32455D

WASHER

SPACER, exhaust elbow mounting support

1шт.
