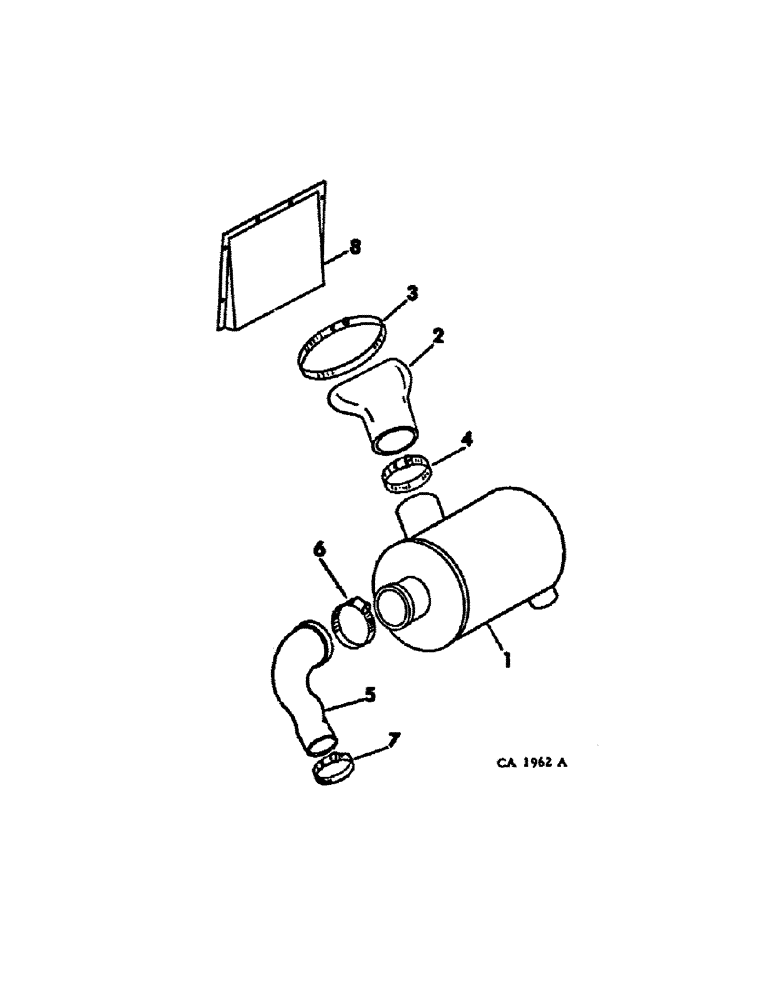

Запчасти Case IH 1586 (12-01) - POWER, AIR CLEANER CONNECTIONS Power

1

CLEANER ASSY, air, Refer to air cleaner assy, For list of component parts

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179902

BOLT,Hex, 9/16" - 12 x 1", Gr 5

SCREW, 9/16-12 x 1 hex-hd cap

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 16 ga) 3/8"

1шт.

NLS

NO LONGER SERVICED

19/32 x 1-3/16 x 16 ga

1шт.

2

532455R1

INTAKE AIR HOSE

HOSE, air cleaner intake

1шт.

3

427312R91

HOSE CLAMP,#100, 5.88/6.75 Type F Worm

CLAMP, intake hose front

1шт.

4

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP, intake hose rear

1шт.

5

67684C1

INTAKE AIR HOSE,101.60 mm ID x 138.00 mm

- Air cleaner outlet 101.60 mm ID x 138.00 mm

1шт.

144138C1

CLIP

steering hose

1шт.

6

146570C1

CLAMP

air cleaner outlet hose front, Replaces 397270R1

1шт.

7

146569C1

CLAMP

air cleaner outlet hose rear, Replaces 400446R1

1шт.

8

120201C1

BAFFLE

pre-cleaner

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.
