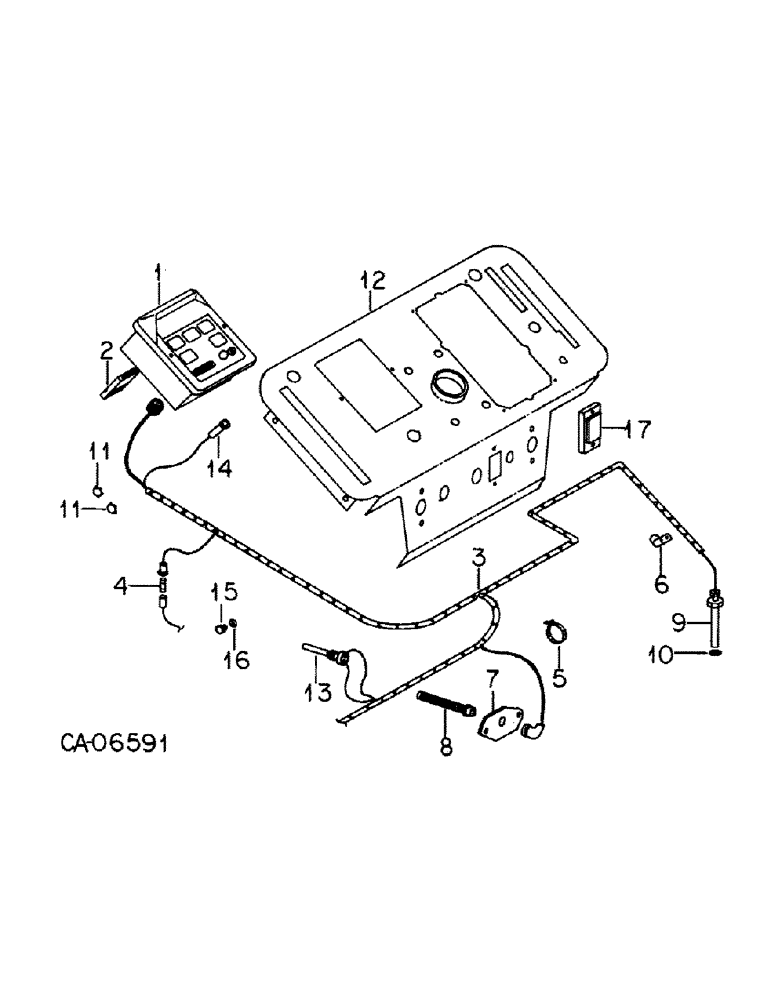

Запчасти Case IH 1586 (11-03) - INSTRUMENTS, DIGITAL DATA GAUGE, 1586 TRACTORS WITH SERIAL NO. 15386 AND ABOVE Instruments

1

1265585C2

GAUGE

digital data center, English or Metric, Also order the proper product graphic, Replaces gauges, 121877C1 and 1252478C1

1шт.

1

1935076C1

REMAN-INSTR CLUSTER

1586 INTERNATIONAL DIESEL TRACTOR, SERIAL NO. 15386 AND ABOVE (1/74-12/79), Reman For New P/N 1265585C2

1шт.

1

1935077C1

CORE-CLUSTER, INSTR

Return Number

1шт.

103957C1

NUT

J-shape

2шт.

27076R1

SCREW,Cross Oval Hd, #10 x 1"

no. 10-16 x 1 phc o/hdcr tap

2шт.

131142C1

PRODUCT GRAPHIC

digital data gauge, Used only w/gages, 121877C1 and 1252478C1

1шт.

1265520C2

PRODUCT GRAPHIC

digital data gauge, MPH, English, Used only w/gage 1265585C2

1шт.

1265521C2

PRODUCT GRAPHIC

digital data gauge, KM/H, Metric, Used only w/gage, 1265585C2

1шт.

2

131114C1

REGULATOR

gear ratio plug-in

1шт.

3

131383C2

HARNESS

ASSY, digital data gauge

1шт.

4

NLS

NO LONGER SERVICED

3AG 2 amperes

1шт.

5

289862C1

CABLE TIE,3/16" x 7"

STRAP, wiring

12шт.

6

366460R1

CABLE CLIP

CLIP, harness

1шт.

7

121786C2

COVER

RPM transducer mtg

1шт.

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

2шт.

8

130908C2

TRANSMITTER

RPM transducer

1шт.

138506

LOCK WASHER,Ext Tooth, 3/4"

WASHER, 3/4 ext lock

1шт.

9

121869C2

TRANSMITTER

MPH transducer

1шт.

138502

WASHER,Ext Tooth, 5/8"

5/8 ext lock

1шт.

10

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

11

432327

HOLE PLUG BUTTON,1"

PLUG, 1 button, firewall

1шт.

12

137860C92

PANEL

ASSY, instrument, tractors without torque amplifier

1шт.

12

148433C2

PANEL

ASSY, instrument, tractors with tilt-telescoping steering and without torque amplifier

1шт.

12

137862C92

PANEL ASSY, instrument, tractors with torque amplifier

1шт.

12

1270790C1

PANEL

ASSY, instrument, tractors with tilt-telescoping steering and with torque amplifier

1шт.

13

130898C2

ELECTRICAL GAUGE

GAUGE, pyrometer thermocouple

1шт.

14

131404C91

INDICATOR LIGHT

LIGHT ASSY, exhaust gas temperature

1шт.

15

NOT USED THIS APPLICATION

1шт.

16

NOT USED THIS APPLICATION

1шт.

17

141879C1

PLUG

aux lighting switch, tractors w/o rear fender aux lighting

1шт.

27571R1

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

SCREW, no. 6-20 x 1/2 phc p/hdcr tap

2шт.
