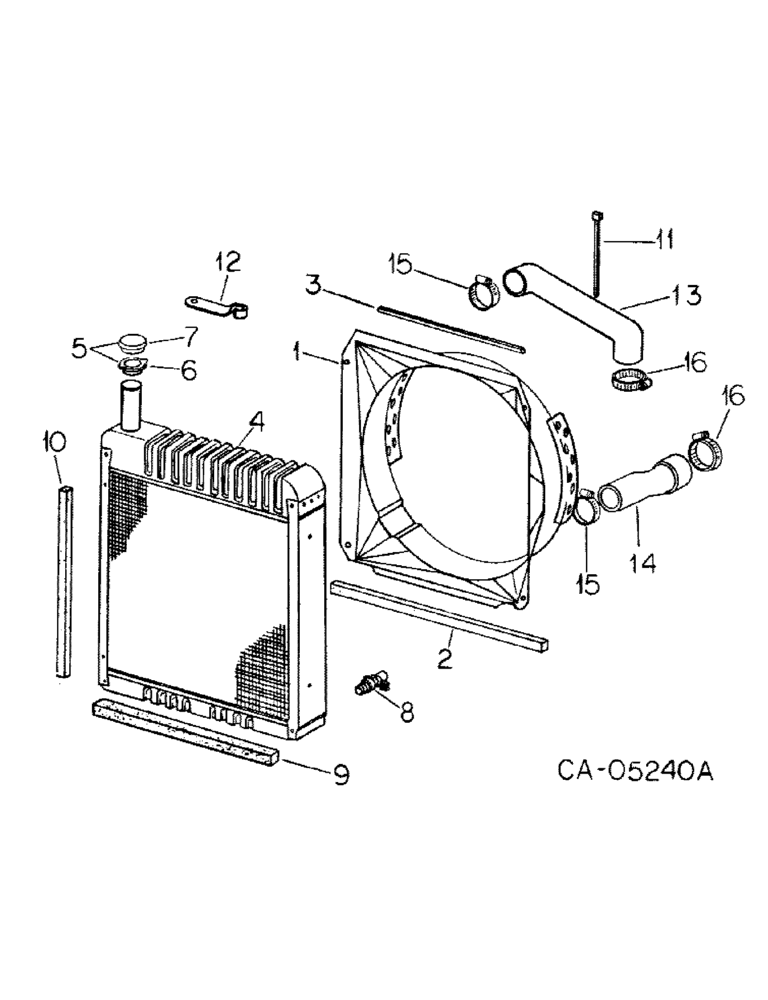

Запчасти Case IH 1586 (06-04) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

67391C1

SHROUD

ASSY, fan

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

2

SEAL, fan shroud, lower, Use 15 in. from 4 ft. length marked 73213C1

1шт.

3

SEAL, fan shroud, upper, Use 19.6 in. from 4 ft. length marked 73213C1

1шт.

4

121725C1

RADIATOR

ASSY, less cap

1шт.

4

71611C1

RADIATOR

ASSY, less cap, tractor w/air conditioned cab

1шт.

5

532672R91

CAP

W/COVER RADIATOR

1шт.

6

532673R1

CAP

ASSY

1шт.

7

COVER, Order cap w/cover, 532672R91 (NSS)

1шт.

8

614201R1

VALVE

COCK, radiator drain

1шт.

9

SEAL, radiator front, Use 22.5 in. from 4 ft. length marked 73213C1

2шт.

10

SEAL, radiator side, Use 28 in. from 4 ft. length marked 73212C1

2шт.

10

SEAL, radiator shroud, Use 3 in. from 4 ft. length marked 73216C1

2шт.

11

306132C1

CABLE TIE,14.5" L

STRAP, hose lock

1шт.

12

68429C1

CLIP

radiator overflow hose

1шт.

13

532680R1

RADIATOR HOSE,57.20 mm ID x 302.30 mm, SAE 20R4 CLASS 5C, SAE 20 R4 CLASS R, GRADE 1A

Inlet 57.20 mm ID x 302.30 mm, SAE 20R4 CLASS 5C, SAE 20 R4 CLASS R, GRADE 1A

1шт.

13

532680R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

14

532681R1

RADIATOR HOSE,66.50 mm ID x 106.68 mm, SAE 20R4, CLASS 5C, SAE 20R4, CLASS R, GRADE 1A

Outlet 66.50 mm ID x 106.68 mm, SAE 20R4, CLASS 5C, SAE 20R4, CLASS R, GRADE 1A

1шт.

14

532681R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

15

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, hose

2шт.

16

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP, hose

2шт.
