(04-04) - BRAKES, POWER BRAKE VALVE

Запчасти Case IH 1586 (04-04) - BRAKES, POWER BRAKE VALVE (5.1) - BRAKES

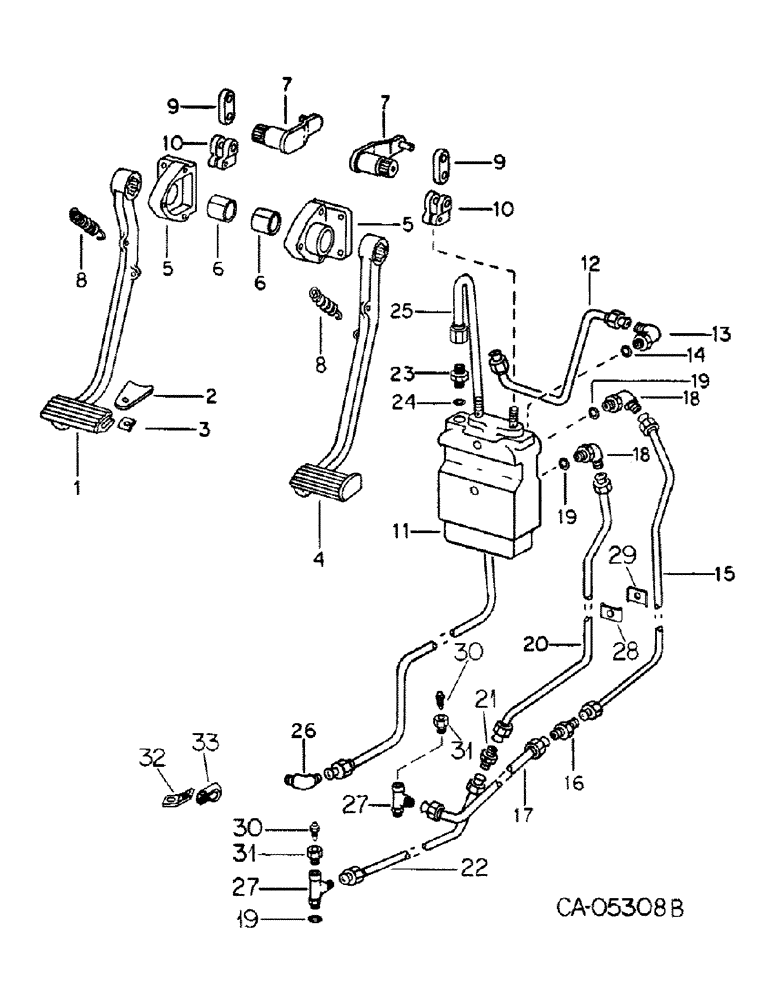

Схема запчастей Case IH 1586 - (04-04) - BRAKES, POWER BRAKE VALVE (5.1) - BRAKES
22
26
9
33
19
6
32
18
27
7
27
19
1
31
7
9
20
3
8
10
29
19
6
16
30
23
28
8
18
21
10
24
2
31
5
30
4
5
13
25
17
11
12
14
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

VALVE ASSY, hyd power brake, Order power brake valve service package, 72807C93, Consists of valve & instructions

1шт.

1

71707C1

SPRING

return

2шт.

2

71708C1

SPRING

large piston

2шт.

3

85633R1

RING

1/2 sq sect snap

2шт.

4

384495R1

CAP

body

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/2-20 x 7/8 hex-hd cap

6шт.

5

69156C2

PISTON

large

2шт.

6

69157C1

PISTON

small

2шт.

7

9411648

LOCK NUT,1/2"-20, GC

NUT, 1/2 cad p/t lock type 1

2шт.

8

69158C1

WASHER,12.78mm ID x 25.4mm OD x 6.35mm Thk

piston

2шт.

9

71487C91

PACKAGE

brake valve o-ring and gasket service, Consists of

1шт.

384503R2

GASKET,0.38mm Thk

1шт.

O-RING (NSS)

4шт.

O-RING (NSS)

2шт.

O-RING (NSS)

2шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

10

384501R1

PLATE

orifice

1шт.

11

384503R2

GASKET,0.38mm Thk

body cap

1шт.

12

BODY, power brake valve, Not serviced separately, Order service package, 72807C93

1шт.

13

SPOOL, valve, Not serviced separately, Order service package, 72807C93

2шт.

72807C93

VALVE

PACKAGE, hyd brake valve service, Consists of

1шт.

VALVE ASSY, hyd brake (NSS)

1шт.

INSTRUCTIONS (NSS)

1шт.
