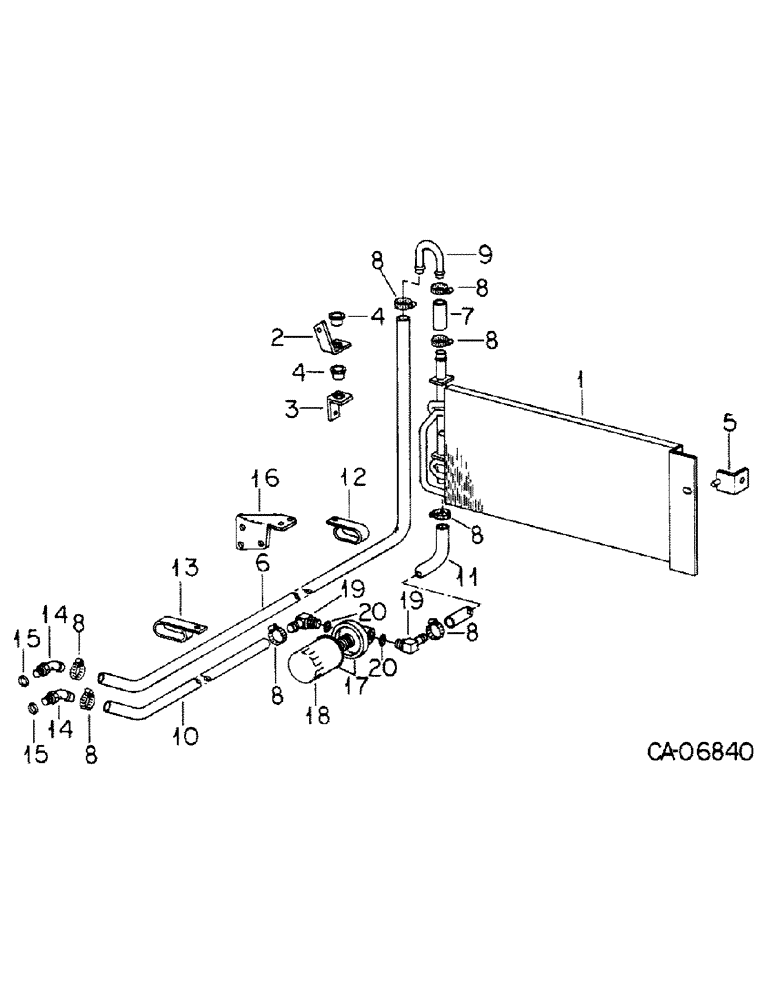

Запчасти Case IH 1586 (06-02) - COOLING, OIL COOLER AND CONNECTIONS, 1586 TRACTOR WITH SERIAL NO. 21000 AND ABOVE Cooling

1

68437C1

COOLER

ASSY, oil

1шт.

104740C1

COOLER ASSY.

TRACTOR W/AIR CONDITIONED CAB

1шт.

2

533235R2

HINGE

upper mtg

1шт.

2

104742C1

HINGE

oil cooler, tractor w/air conditioned cab

1шт.

3

533236R2

SUPPORT

BRACKET ASSY, oil cooler mtg

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

2шт.

4

387327R1

BUSHING

oil cooler pivot

2шт.

5

533241R2

BRACKET

ASSY, oil cooler latch

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 pln wing

1шт.

5

104743C1

SUPPORT

BRACKET ASSY, cooler latch LH, tractor w/air conditioned cab

1шт.

5

104744C1

SUPPORT

BRACKET ASSY, cooler latch RH, tractor w/air conditioned cab

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

5шт.

104745C2

ROD

LINK, cooler retaining

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

HOSE, oil cooler inlet, Use 98 in. from bulk roll marked 146785C1

1шт.

7

HOSE, oil cooler inlet pipe, Use 2-1/2 in. from bulk roll marked 146785C1

1шт.

8

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, oil cooler hose

8шт.

9

71462C1

TUBE, oil cooler front upper 1.5" OD

1шт.

10

HOSE, filter to MCV, Use 37 in. from bulk roll marked 146785C1

1шт.

11

HOSE, oil cooler to filter, Use 51 in. from bulk roll marked 146785C1

1шт.

12

104773C3

CLAMP

CLIP, oil cooler hose, frt channel

1шт.

615031R1

WASHER

.375 x .875 x .064 pln

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

13

104773C3

CLAMP

CLIP, oil cooler hose, clutch

1шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 pln type 5

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

.656 x 1.312 x .074 pln

1шт.

14

104776C3

ELBOW

2шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32

2шт.

16

138047C1

SUPPORT

BRACKET, filter mtg

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

137938C91

HYDRAULIC OIL FILTER

FILTER ASSY

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

18

137939C1

FILTER, ELEMENT

FILTER

1шт.

19

133824C1

ELBOW

90 deg

2шт.

20

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

2шт.
