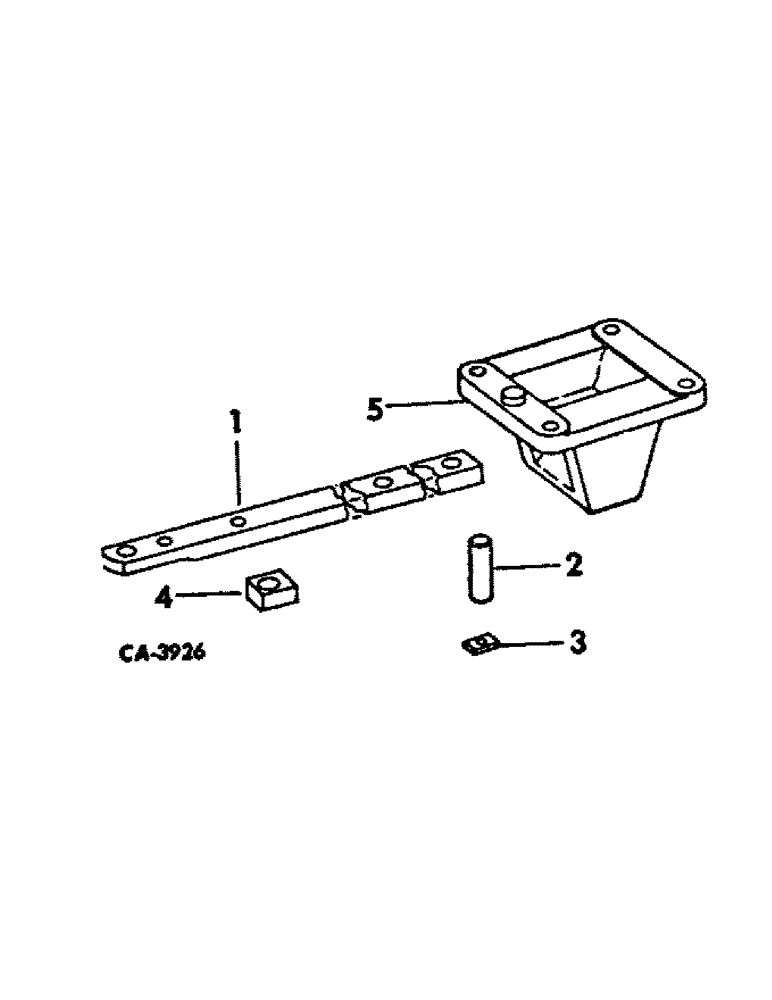

Запчасти Case IH 1586 (09-03[A]) - FRAME, SWINGING DRAWBAR, ONE PIECE PART OF THREE POINT HITCH ATTACHMENT (12) - FRAME

1

108503R1

DRAWBAR, swinging 62 in., and all tractors with 1-3/4 in. IPTO attachment and telescoping sway limiting three point hitch attachment, Serial Range: -16505

1шт.

1

73229C1

BAR

DRAWBAR, swinging 62 in., except for tractors with 1-3/4 in. IPTO attachment and telescoping sway limiting three point hitch attachment, Start Serial: 16506

1шт.

1

108504C1

BAR

DRAWBAR, swinging 58 in., All tractors with standard 1-3/8 in. IPTO attachment, Serial Range: -16505

1шт.

1

72571C1

BAR

DRAWBAR, swinging 58 in., all tractors with standard 1-3/8 in. IPTO attachment, Start Serial: 16506

1шт.

2

108505C1

PIN

drawbar

1шт.

3

67828C1

RETAINER

pin

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

108507C1

BLOCK

drawbar stop

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap

2шт.

413-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

SCREW, 5/8-11 x 4-3/4 hex-hd cap, Use as a stop on tractor with cam sway limiter system

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, use as a stop on tractor with cam sway limiter system

2шт.

5

SUPPORT ASSY, swinging drawbar pivot, Refer to rear frame and cover, group 7

1шт.
