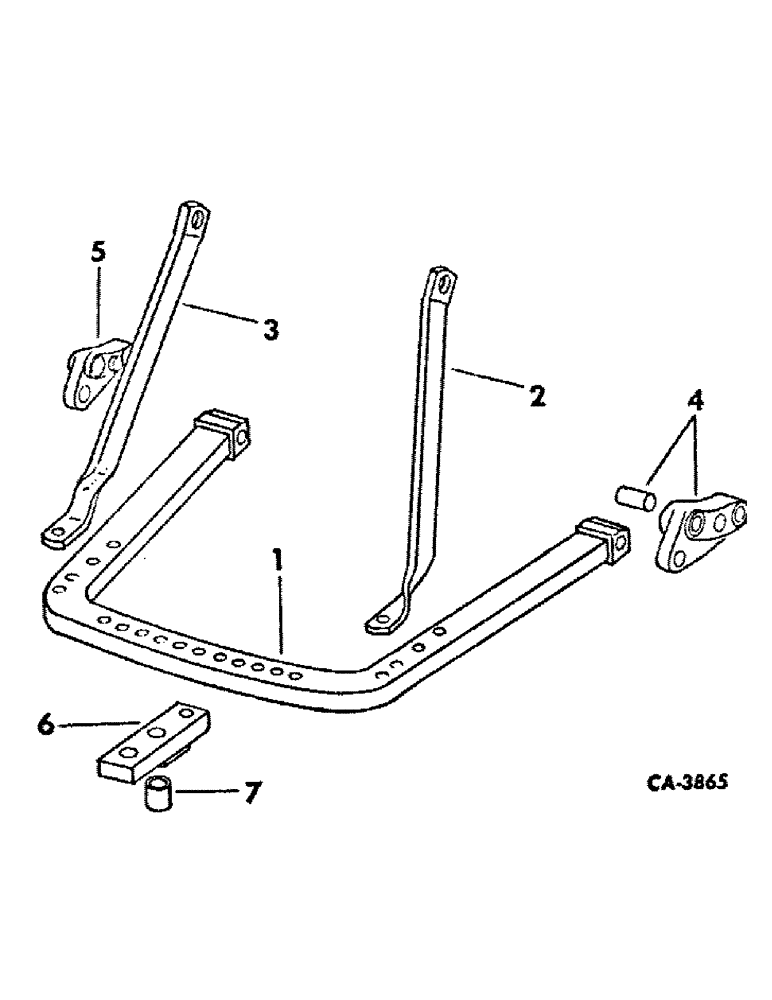

Запчасти Case IH 1586 (09-02) - FRAME, FIXED NON-ADJUSTABLE DRAWBAR, TRACTORS WITHOUT HYDRAULIC DRAFT CONTROL (12) - FRAME

1

68029C1

NO LONGER SERVICED

DRAWBAR ASSY

1шт.

103348

WASHER,1" x 2" x .134"

1-1/16 x 2 x .134 thick

2шт.

274296

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

SCREW, 1-8 x 7-1/2 hex-hd cap

2шт.

220083

NUT,1"-8, G5

1-8 hex

2шт.

2

68036C1

BRACE, drawbar RH

1шт.

220081

NUT

3/4-10 hex

1шт.

20072R1

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 8

SCREW, 3/4-10 x 3-1/4 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

113-933

BOLT,Hex, 1" - 8 x 3-3/4", Gr 5

SCREW, 1-8 x 3-3/4 hex-hd cap

1шт.

220083

NUT,1"-8, G5

1-8 hex

1шт.

3

68035C1

BRACE, drawbar LH

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

1шт.

20072R1

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 8

SCREW, 3/4-10 x 3-1/4 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

4

68032C1

BRACKET ASSY, drawbar pin support RH

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 5/8-11 x 5 hex-hd cap, Course Threads

2шт.

5

68033C1

BRACKET ASSY, drawbar pin support LH

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 5/8-11 x 5 hex-hd cap, Course Threads

2шт.

6

67839C1

EXTENSION

ASSY, drawbar, tractor w/1-3/4 dia. IPTO shaft

1шт.

271614

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 hex-hd cap

1шт.

271621

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

SCREW, 3/4-10 x 4-1/2 hex-hd cap

1шт.

271623

BOLT,Hex, 3/4" - 10 x 5", Gr 5

SCREW, 3/4-10 x 5 hex-hd cap

1шт.

481540R1

WASHER

.781 x 2.212 x 1/4 ht

2шт.

220081

NUT

3/4-10 hex

2шт.

7

67864C1

PIN

drawbar extension, tractor w/1-3/4 dia. IPTO shaft

1шт.
