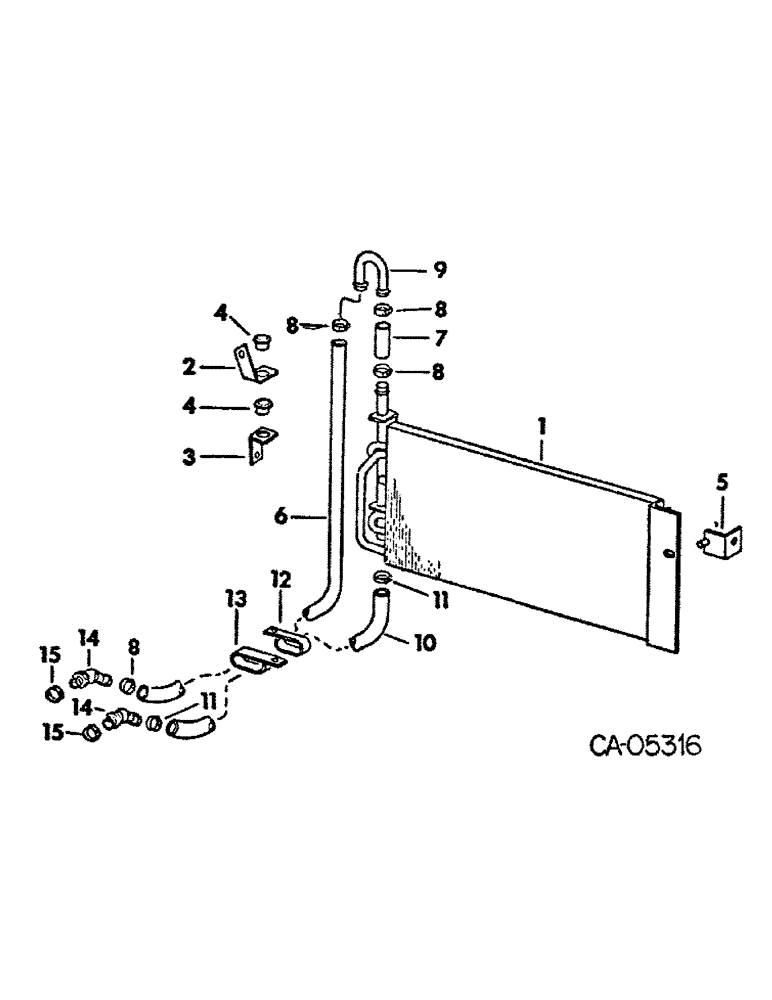

Запчасти Case IH 1586 (06-01) - COOLING, OIL COOLER AND CONNECTIONS, 1586 TRACTOR WITH SERIAL NO. 20999 AND BELOW Cooling
№
Артикул
Название
Примечание
Количество
1
68437C1
COOLER
ASSY, oil
1шт.
1
104740C1
COOLER ASSY.
COOLER ASSY, oil, tractor w/air conditioned cab
1шт.
2
533235R2
HINGE
upper mtg
1шт.
2
104742C1
HINGE
oil cooler, tractor w/air conditioned cab
1шт.
3
533236R2
SUPPORT
BRACKET ASSY, oil cooler mtg
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
3/8-16 x 7/8 hex-hd cap
2шт.
4
387327R1
BUSHING
oil cooler pivot
2шт.
5
533241R2
BRACKET
ASSY, oil cooler latch
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
95-11034
WASHER,1/4"
11/32 x 11/16 x .051
1шт.
129-419
WING NUT,5/16"-18
NUT, 5/16-18 wing
1шт.
5
104743C1
SUPPORT
BRACKET ASSY, cooler latch LH, tractor w/air conditioned cab
1шт.
5
104744C1
SUPPORT
BRACKET ASSY, cooler latch RH, tractor w/air conditioned cab
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
140741
NUT,1/4"-20
1/4-20 wing
2шт.
104745C2
ROD
LINK, cooler retaining
2шт.
6
HOSE, oil cooler inlet, Use 98 in. from bulk roll marked 146785C1
1шт.
7
HOSE, oil cooler inlet pipe, Use 2-1/2 in. from bulk roll marked 146785C1
1шт.
8
28085R1
HOSE CLAMP,#08, 0.50/0.91 Type F Worm
CLAMP, oil cooler hose
4шт.
9
71462C1
TUBE, oil cooler front upper 1.5" OD
1шт.
10
HOSE, oil cooler outlet, Use 90 in. from bulk roll marked 146785C1
1шт.
11
28085R1
HOSE CLAMP,#08, 0.50/0.91 Type F Worm
CLAMP, hose
2шт.
12
104773C3
CLAMP
CLIP, oil cooler hose, frt channel
1шт.
615031R1
WASHER
3/8 x 7/8 x .081
2шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
9635082
NUT,5/16" - 18, Gr 5
1шт.
13
104773C3
CLAMP
CLIP, oil cooler hose, clutch
1шт.
271554
GREASE,Hex, 5/8" - 11 x 1", Gr 5
SCREW, 5/8-11 x 1 hex-hd cap
1шт.
496-21066
WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk
.656 x 1.312 x .074 pin
1шт.
14
104776C3
ELBOW
2шт.
Выбрано товаров: 32
