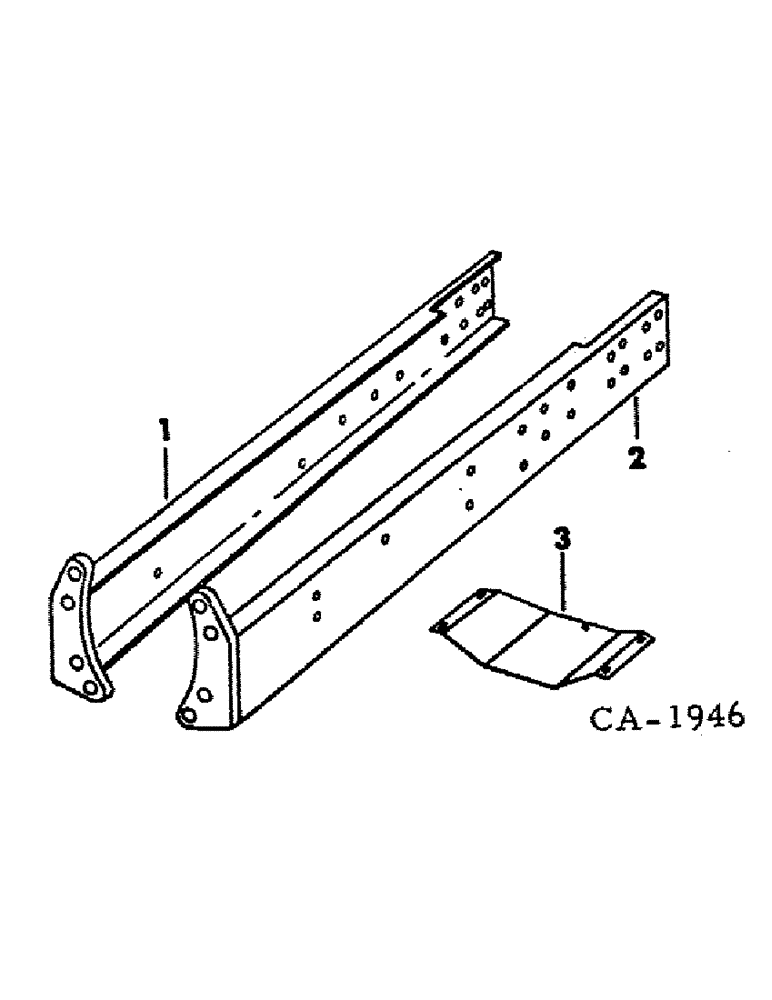

Запчасти Case IH 1586 (09-01) - FRAME, FRONT FRAME CHANNELS (12) - FRAME

1

532316R7

CHANNEL

ASSY, LH front frome

1шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap, 1586, Serial Range: -18811

4шт.

30065R1

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1586 Hex, M16 x 35, 10.9, Full Thd, Start Serial: 18812

4шт.

271617

O-RING

SCREW, 3/4-10 x 3-1/2 hex-hd cap

3шт.

25582R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/2"

SCREW, 3/4-10 x 3-1/2 12 pt cap

1шт.

2

532317R4

SUPPORT ASSY.

CHANNEL ASSY, RH frt frame

1шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap, 1586, Serial Range: -18811

4шт.

30065R1

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1586 Hex, M16 x 35, 10.9, Full Thd, Start Serial: 18812

4шт.

271617

O-RING

SCREW, 3/4-10 x 3-1/2 hex-hd cap

3шт.

25582R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/2"

SCREW, 3/4-10 x 3-1/2 12 pt cap

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 hex-hd cap, engine frt cover to channel mounting, Course Threads

4шт.

3

531245R1

SHIELD, fan pulley, 1586, Serial Range: -18811

1шт.

NLS

NO LONGER SERVICED

5/8-11 x 3/4 hex-hd cap

2шт.
