Запчасти Case IH 1586 (10-54) - HYDRAULIC, ALTERNATING CHECK VALVE CONNECTIONS, 1586 WITH SERIAL NO. 20999 AND BELOW (07) - HYDRAULICS

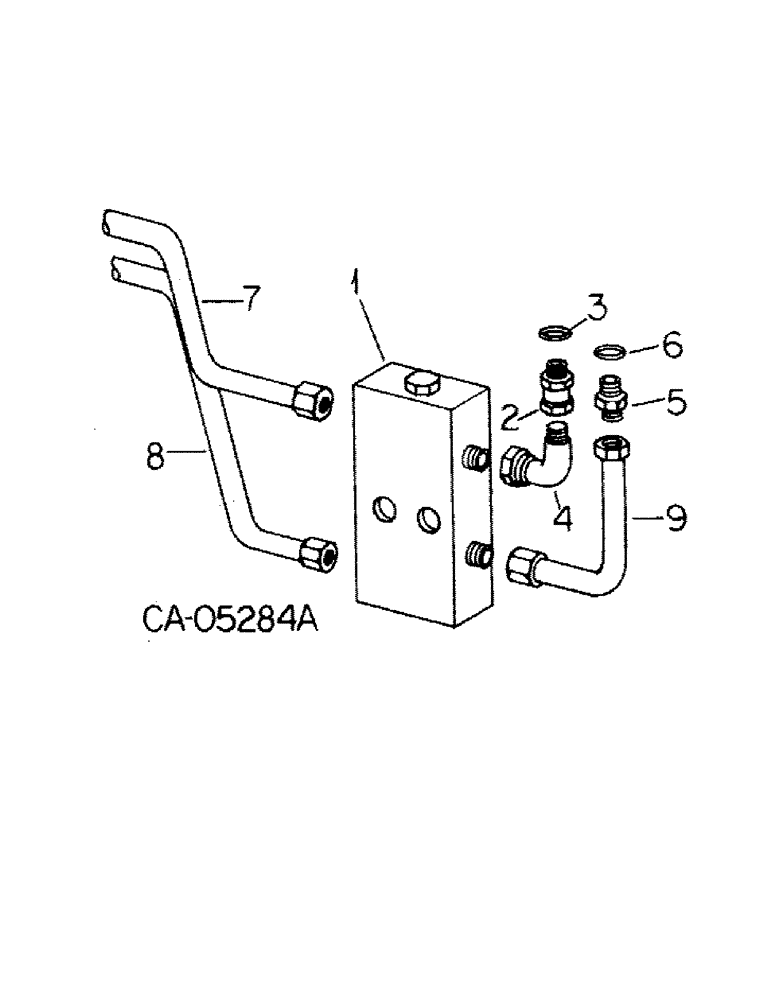

Схема запчастей Case IH 1586 - (10-54) - HYDRAULIC, ALTERNATING CHECK VALVE CONNECTIONS, 1586 WITH SERIAL NO. 20999 AND BELOW (07) - HYDRAULICS
4
5
8
2
9
3
6
7
1

Артикул

Название

Примечание

Количество

1

142864C95

VALVE

ASSY, alternating check, Replaces 108575C91

2шт.

2

66895C1

FITTING

COUPLER, check valve

2шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

4

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 37 deg hyd flared tube, 90 deg swivel

2шт.

5

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube short swivel

2шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

7

104625C1

HYD TUBE

TUBE ASSY, 1st valve raise

1шт.

7

104627C1

HYD TUBE

TUBE ASSY, 2nd valve raise

1шт.

8

104626C1

TUBE

ASSY, 1st valve drop

1шт.

8

104628C1

HYD TUBE

TUBE ASSY, 2nd valve drop

1шт.

9

120310C1

TUBE

ASSY, check valve to aux valve

2шт.

104579C91

KIT

PARTS ACCESSORY, alternating check valve for first aux valve, Consists of

1шт.

142864C95

VALVE

1шт.

66895C1

FITTING

COUPLER

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR

1шт.

104625C1

HYD TUBE

TUBE

1шт.

104626C1

TUBE

1шт.

120310C1

TUBE

1шт.

104580C91

PACKAGE

PARTS ACCESSORY, alternating check valve for second aux valve, Consists of

1шт.

142864C95

VALVE

1шт.

66895C1

FITTING

COUPLER

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR

1шт.

104627C1

HYD TUBE

TUBE

1шт.

104628C1

HYD TUBE

TUBE

1шт.

120310C1

TUBE

1шт.

Выбрано товаров: 29
