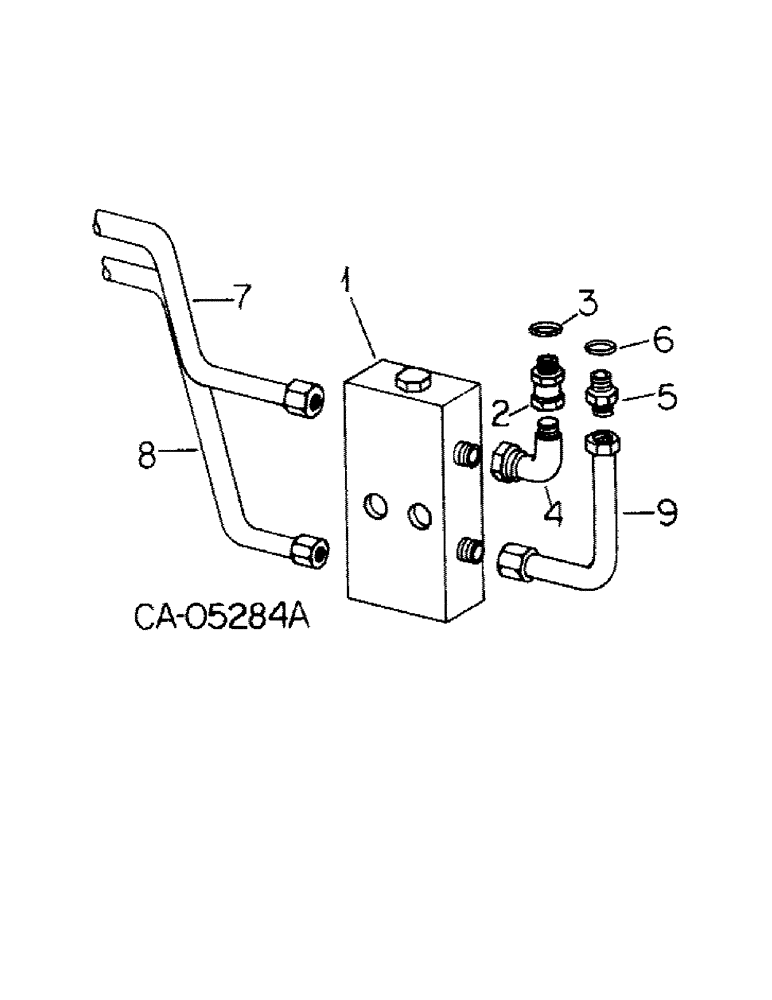

Запчасти Case IH 1586 (10-54[A]) - HYDRAULIC, ALTERNATING CHECK VALVE CONNECTIONS, 1586 WITH SERIAL NO. 21000 AND ABOVE (07) - HYDRAULICS

139166C91

LOCK VALVE

PARTS ACCESSORY, alternating check valve for second aux valve, Consists of one each of refs. 1-9

1шт.

139167C91

PARTS ACCESSORY, alternating check valve for third aux valve, Consists of one each of refs. 1-9

1шт.

1

142864C95

VALVE

ASSY, alternating check

2шт.

2

66895C1

FITTING

COUPLER, check valve

2шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

4

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 37 deg hyd flared tube, 90 deg swivel

2шт.

5

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube short swivel

2шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tubeB

2шт.

7

127957C1

HYD TUBE

TUBE ASSY, 2nd valve raise

1шт.

7

128012C1

HYD TUBE

TUBE ASSY, 3rd valve raise

1шт.

8

127958C1

HYD TUBE

TUBE ASSY, 2nd valve drop

1шт.

8

128013C1

HYD TUBE

TUBE ASSY, 3rd valve drop

1шт.

9

127956C1

HYD TUBE

TUBE ASSY, check valve to aux valve

2шт.
