Артикул
Название
Примечание
Количество

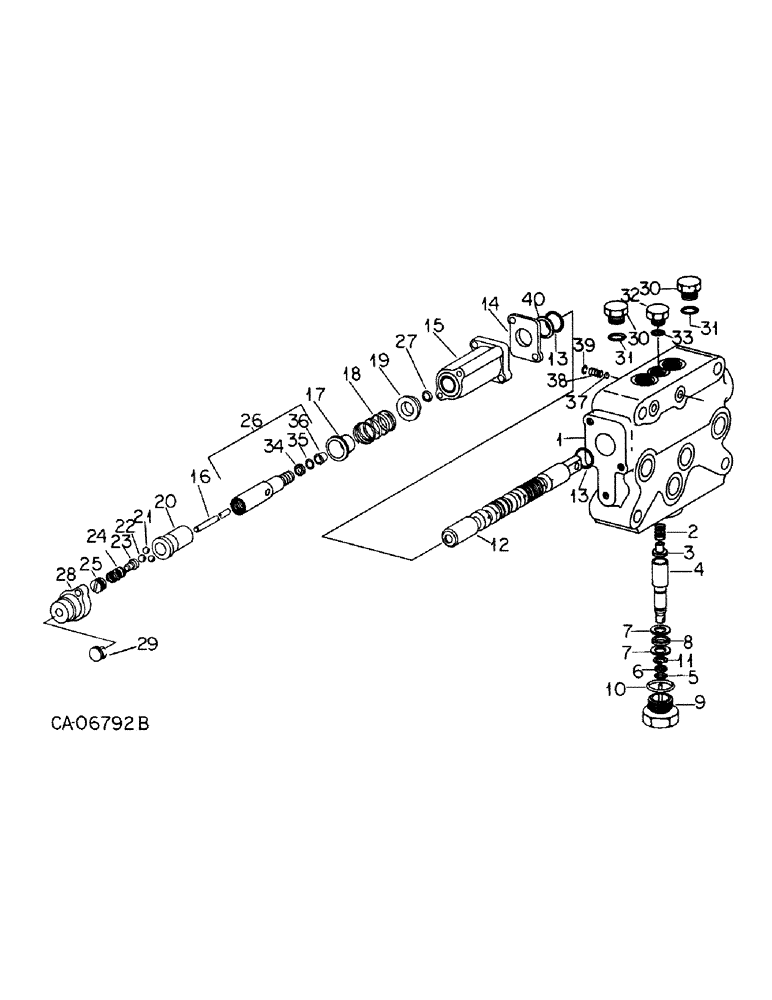

123032C93
VALVE
ASSY, close center motor control
1шт.
1
BODY ASSY, motor control valve, Not serviced separately, Order valve assy 123032C93
1шт.
2
62470C1
SPRING
check valve
1шт.
3
113898C1
VALVE
check valve poppet
1шт.
4
113897C2
VALVE
flow control
1шт.
5
359158R1
O-RING,0.301" ID x 0.07" Width
-011, 70 Duro, .031" ID x .070" Thk
1шт.
6
138303C2
RING
flow control teflon
1шт.
7
159687R1
WASHER
flow control thrust
2шт.
8
159688R91
THRUST BEARING
BEARING ASSY, flow control thrust
1шт.
9
113899C2
PLUG
flow control valve
1шт.
10
368269R1
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
3/4 OD tube
1шт.
11
85633R1
RING
flow control retaining
1шт.
12
SPOOL, valve, Not serviced separately, Order valve assy 123032C93
1шт.
13
350429R1
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
5/8 x 13/15 x 3/32
2шт.
14
62469C1
RETAINER
motor valve spool, Used w/123032C92
1шт.
14
1252320C1
RETAINER
o-ring, Use w/123032C93
1шт.
15
113910C1
HOUSING
unlatching piston sleeve
1шт.
26629R1
12 PT SCREW,Flg, 1/4" - 20 x 1"
SCREW, 1/4 x 1.000 phc type 8 12 pt flg
4шт.
16
113906C1
PIN,2.78mm OD x 68.6mm L
unlatching piston
1шт.
17
113907C1
CUP
centering spring
1шт.
18
113908C1
SPRING
centering
1шт.
19
62473C2
RETAINER
centering spring
1шт.
20
113909C1
SLEEVE
position control
1шт.
21
17007R1
BALL
7/32 chrome steel grade 25, unlatching sleeve
3шт.
22
17013R1
BALL,13/32" Dia
Unlatching sleeve 13/32" Dia
1шт.
23
62480C1
WASHER
PIN, unlatching sleeve ball
1шт.
24
1272404C1
SPRING, detent, Replaces 114032C1
1шт.
25
377803R1
PLUG
centering spring retainer
1шт.
26
113904C91
UNION
ASSY, centering spring actuator
1шт.
27
379795R1
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
3-1, .301" ID x .064" Thk, 3/16 OD tube class 6, Centering spring actuator
1шт.
28
62482C1
CAP
unlatching spring housing
1шт.
26629R1
12 PT SCREW,Flg, 1/4" - 20 x 1"
SCREW, 1/4 x 1.000 phc type 8 12 pt flg
2шт.
29
432539
HOLE PLUG BUTTON,7/16"
PLUG, 7/16 button, unlatching sleeve hsg cap
1шт.
30
9410357
PLUG
1/2-20 str-thd o-ring boss
2шт.
31
369384R1
O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro
5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube
2шт.
32
9410354
PLUG,Hex Hd, 5/16"-24 ORB
1/8 C-Z str thd o-ring boss
1шт.
33
369375R1
O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro
1/8 OD tube class 6
1шт.
34
529908R1
WASHER
back-up
1шт.
35
529909R1
O-RING,1.78mm Thk x 2.54mm ID
centering spring actuator
1шт.
36
529904R1
RETAINER
o-ring
1шт.
37
17006R1
BALL
3/16 chrome grade 25
1шт.
38
133498C1
SPRING
check valve
1шт.
39
1255020C1
BELLEVILLE WASHER,3.454mm ID x mm OD x 0.381mm Thk
check valve spring retaining
1шт.
40
1263497C1
WASHER,16.02mm ID x 20.32mm OD x 0.51mm Thk
RING, back-up, Used w/123032C93
1шт.
76669C92
PACKAGE
valve repair, Consists of refs. 2, 3, 5, 6, 7, 8, 10, 11, 13, 27, 31 & 33
1шт.
1255052C91
PACKAGE
KIT, signal check service, Consists of
1шт.
17006R1
BALL
3/16 grade 25 metal
1шт.
133498C1
SPRING
check valve
1шт.
1255020C1
BELLEVILLE WASHER,3.454mm ID x mm OD x 0.381mm Thk
spring retaining
1шт.
TOOL, retaining ring (NSS)
1шт.
INSTRUCTIONS (NSS)
1шт.
Выбрано товаров: 51
