Артикул
Название
Примечание
Количество

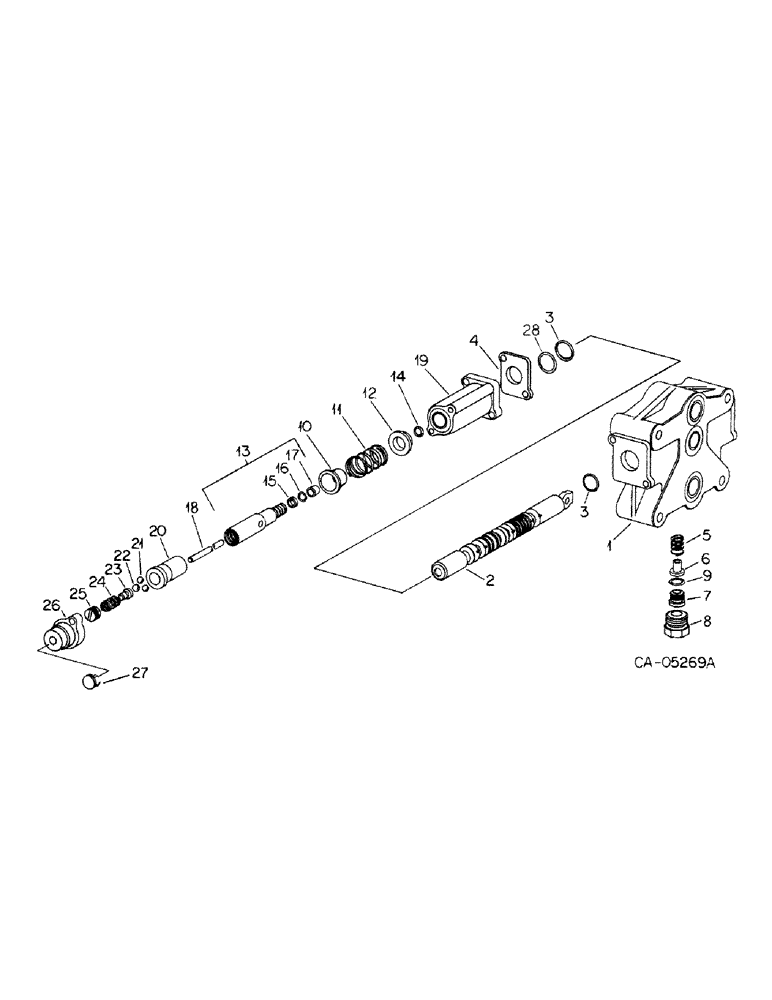

62464C94
VALVE
ASSY, open center control, hyd unlatch 2000-2250 PSI
1шт.
1
BODY ASSY, valve, Not serviced separately, Order valve assy
1шт.
2
SPOOL, valve, Not serviced separately, order valve assy
1шт.
3
350429R1
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
5/8 x 13/16 x 3/32 valve spool
2шт.
4
62469C1
RETAINER
o-ring, Used w/62464C92
1шт.
4
1252320C1
RETAINER
o-ring, Used w/62464C94
1шт.
5
62470C1
SPRING
check valve
1шт.
6
108867C1
VALVE POPPET
POPPET, reverse flow check valve
1шт.
7
108868C1
SEAT
reverse flow check valve
1шт.
8
9410359
PLUG
1/2 C-Z str thd o-ring boss
1шт.
10
62471C1
SPRING CUP
CUP, centering spring
1шт.
11
62472C1
SPRING
centering
1шт.
12
62473C2
RETAINER
centering spring
1шт.
13
62474C91
BODY
ACTUATOR ASSY, centering spring
1шт.
14
379795R1
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
3-1, .301" ID x .064" Thk, 3/16 OD tube
1шт.
15
529903R1
WASHER
back-up
1шт.
16
21587R1
O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro
1/8 x 1/4 x 1/16, centering spring actuating
1шт.
17
529904R1
RETAINER
o-ring
1шт.
18
529905R1
PISTON
unlatching
1шт.
19
62478C1
HOUSING
sleeve
1шт.
26629R1
12 PT SCREW,Flg, 1/4" - 20 x 1"
SCREW, 1/4-20 x 1 in. 12 pt flange phc grade 8
2шт.
20
128034C1
SLEEVE
position control
1шт.
21
17007R1
BALL
7/32 cr-stl detent
3шт.
22
17013R1
BALL,13/32" Dia
Detent actuating 13/32" Dia
1шт.
23
62480C1
WASHER
detent actuating ball
1шт.
24
1272204C1
SPRING
detent, Replaces 114032C1
1шт.
25
377803R1
PLUG
SCREW, spring retaining adj
1шт.
26
62482C1
CAP
retaining
1шт.
26629R1
12 PT SCREW,Flg, 1/4" - 20 x 1"
SCREW, 1/4-20 x 1 in. 12 pt flange phc grade 8
2шт.
27
432539
HOLE PLUG BUTTON,7/16"
PLUG, 7/16 stl button
1шт.
28
1263497C1
WASHER,16.02mm ID x 20.32mm OD x 0.51mm Thk
RING, back-up, Used w/1252320C1
1шт.
Выбрано товаров: 32
