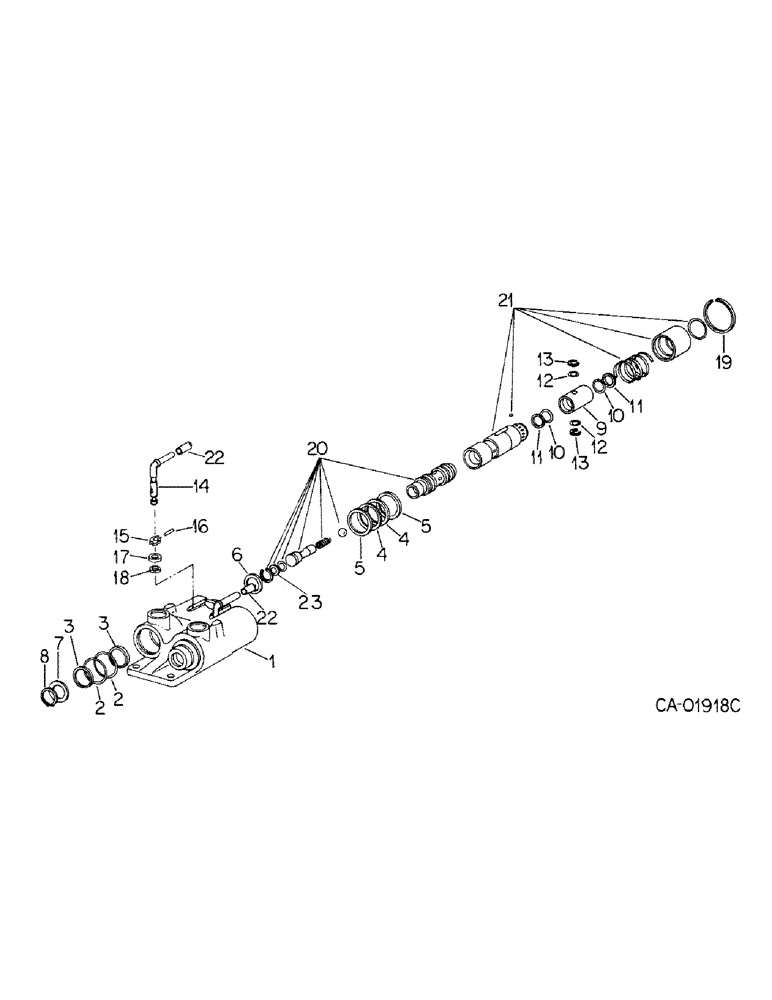

Запчасти Case IH 1586 (10-47) - HYDRAULIC, FEMALE COUPLER (07) - HYDRAULICS

544786R95

COUPLING, BREAK AWAY

COUPLING ASSY, female

1шт.

1

544788R2

BODY

coupler

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub

1шт.

2

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1-11/16 x 1-7/8 x 3/32

4шт.

3

544789R2

SEAL

sleeve

4шт.

4

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1-1/16 x 1-1/4 x 3/32

4шт.

5

544792R1

WASHER,27.66mm ID x 32.08mm OD x 1.32mm Thk

back-up

4шт.

6

57071C1

RING

retaining check body outer

2шт.

7

22769R1

WASHER

Used w/body, 544788R1

2шт.

8

21399R1

SNAP RING,#106, Ext

Ring, Snap, , check body outer, used w/body, 544788R1 #106, Ext

2шт.

9

76931C1

SLEEVE

female body small, Replaces 544798R1, For 1586 order 76936C91 package, Serial Range: -16490

2шт.

10

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

3/8 x 1/2 x 1/16

4шт.

11

544799R1

WASHER

back-up

4шт.

12

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16, 1586, Serial Range: -16490

4шт.

12

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 x 1/16, 1586, Start Serial: 16491

4шт.

13

544800R1

WASHER

back-up, 1586, Serial Range: -16490

4шт.

13

76932C1

WASHER

o-ring back-up, 1586, Start Serial: 16491

4шт.

14

142371C1

HANDLE

valve, Replaces 544801R1, For 1586 order 76936C91 package, Serial Range: -16490

2шт.

15

544804R1

CAM

check valve

2шт.

16

544805R1

PIN

cam retainer

2шт.

17

544806R1

RETAINER

cam shaft, 1586, Serial Range: -16490

2шт.

17

76935C1

SPACER

cam check valve shaft, 1586, Start Serial: 16491

2шт.

18

399921C1

RING

cam shaft retaining, 1586, Serial Range: -16490

2шт.

19

537468R1

SNAP RING,#193, 2.081", Int

RING, retaining

2шт.

20

549158R1

VALVE

ASSY, check

2шт.

21

549159R2

SLEEVE

ASSY, female body

2шт.

22

139346C1

SLEEVE

valve handle, black, 1586, motor control valve coupler, Start Serial: 21000

2шт.

22

139347C1

SLEEVE

valve handle, yellow, 1586, second aux control valve coupler, Start Serial: 21000

2шт.

22

139348C1

SLEEVE

valve handle, blue, 1586, third aux control coupler, Start Serial: 21000

2шт.

22

139349C1

SLEEVE

valve handle, tan, 1586, fourth aux control valve coupler, Start Serial: 21000

2шт.

23

544795R1

WASHER

back-up

1шт.

549160R92

PACKAGE

hydraulic coupler o-ring and seal service, Consists of

1шт.

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

4шт.

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

4шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

4шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

544789R2

SEAL

4шт.

544792R1

WASHER,27.66mm ID x 32.08mm OD x 1.32mm Thk

4шт.

544799R1

WASHER

4шт.

544800R1

WASHER

4шт.

76932C1

WASHER

2шт.

399921C1

RING

2шт.

76936C91

PACKAGE

female coupling handle service, Replaces sleeve 544798R1 & handle assy 544801R1 on 1586, Consists of, Serial Range: -16490

1шт.

142371C1

HANDLE

valve

1шт.

76931C1

SLEEVE

1шт.

76935C1

SPACER

1шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

76932C1

WASHER

1шт.
