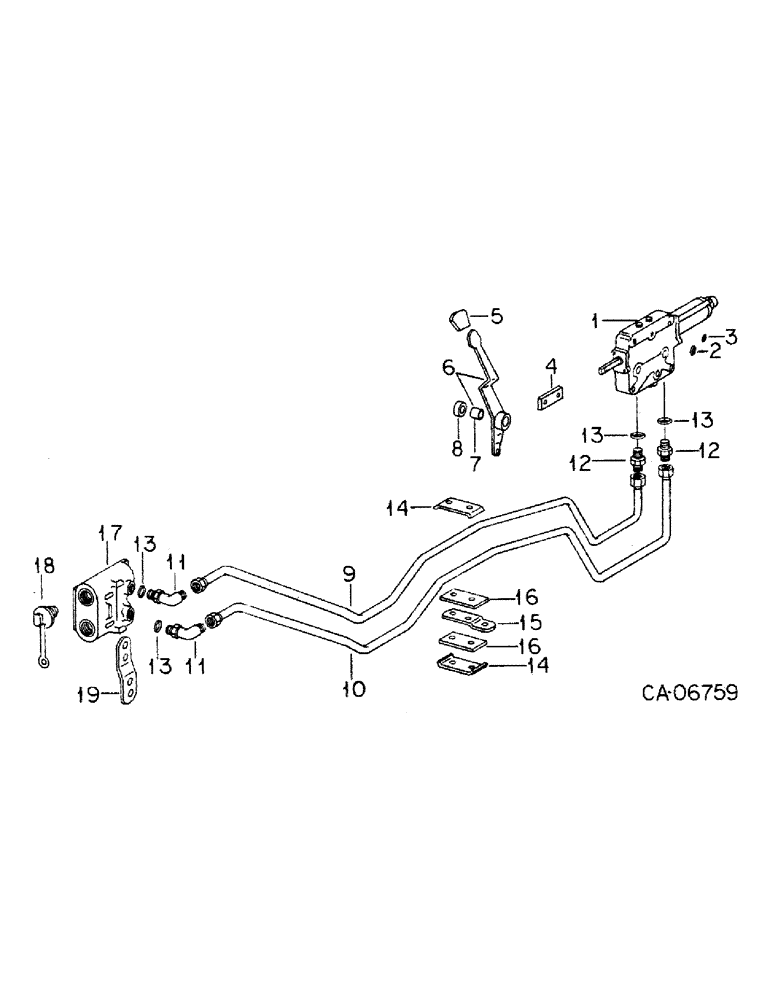

Запчасти Case IH 1586 (10-45) - HYDRAULIC, THIRD VALVE FOR TRIPLE AUXILIARY VALVES, 1586 WITH SERIAL NO. 21000 AND ABOVE (07) - HYDRAULICS

139164C91

PARTS ACCESSORY, third auxiliary valve

1шт.

1

113888C93

VALVE

ASSY, close center aux control, Refer to close center aux control valve this group for list of components

1шт.

20058R1

BOLT,Hex, 3/8" - 16 x 7", Gr 8

3/8 x 7 pln type 8

4шт.

2

391912R1

O-RING,0.737" ID x 0.103" Width

3/4 x 15/16 x 3/32

4шт.

3

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32

2шт.

4

139013C1

LINK

aux valve operating

1шт.

400862R1

BOLT,Hex, 5/16" - 18 x 0.85"

shoulder

2шт.

390304C1

WASHER

.344 x .688 x .065 hdn

1шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 phc p/t lock type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

1259762C1

KNOB

aux valve control, blue

1шт.

6

120470C91

HANDLE

ASSY, third aux valve

1шт.

7

120464C1

BUSHING,19.07mm ID x 20.68mm OD x 13.21mm L

valve operating lever

1шт.

16066R1

WASHER

SPACER, valve handle outer

1шт.

21018R1

WASHER

SPACER, valve handle outer

1шт.

8

120476R1

SPACER, valve handle hub

1шт.

9

127968C1

TUBE

ASSY, third valve raise, cat. III

1шт.

10

127969C1

HYD TUBE

TUBE ASSY, third valve drop

1шт.

11

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg

2шт.

12

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube

2шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

14

104795C1

CLAMP

aux valve tubes

2шт.

15

104797C1

PLATE

isomount aux valve tubes

1шт.

16

104798C1

STRIP

isomount aux valve tubes

2шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

1шт.

17

544786R95

COUPLING, BREAK AWAY

COUPLER ASSY, female, Refer to female coupler this group for list of components

1шт.

18

64757C1

PLUG

coupler dust

2шт.

19

120012C1

SUPPORT

BAR, coupler mtg

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

1/2 x 1-1/8 pln type 5

2шт.
