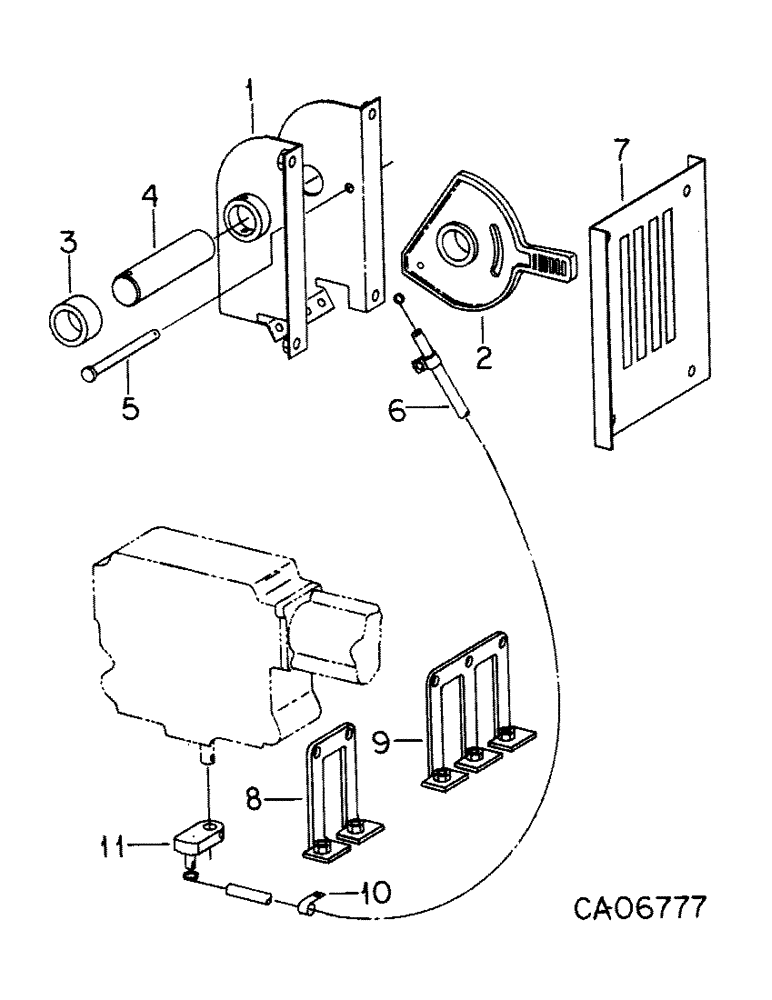

Запчасти Case IH 1586 (10-42) - HYDRAULIC, AUXILIARY VALVE FLOW CONTROL, 1582 WITH SERIAL NO. 21000 AND ABOVE (07) - HYDRAULICS

1

137902C1

BRACKET

ASSY, flow control sector mtg

1шт.

2

137901C1

SECTOR

flow control, black

1шт.

2

139213C1

SECTOR

flow control, yellow

1шт.

2

139214C1

SECTOR

flow control, blue, For use w/third valve

1шт.

2

139215C1

SECTOR

flow control, tan, For use w/fourth valve

1шт.

3

139023C1

SPACER

flow control sector, 2 valve application

2шт.

3

139023C1

SPACER

flow control sector, 3 valve application

1шт.

4

137904C1

SHAFT

sector operating

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

5

Q3522

PIN, 1/4 x 3-1/4 pln hd type 1, sector stop pin

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

6

139027C2

CABLE

ASSY, flow control operating, one required per sector

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

544678R1

NUT

U-type speed

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

7

139025C1

COVER

RH console lower front

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

4шт.

8

139149C1

BRACKET

ASSY, control cable lower mtg, 2 valve application

1шт.

8

139149C1

BRACKET

ASSY, control cable lower mtg, 4 valve application

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2 required per bracket Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

9

139150C1

BRACKET

ASSY, control cable lower mtg, 1 required w/3 valve application

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

10

139029C2

CLIP

flow control operating cable mtg, one required per sector

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

11

139030C1

LEVER

ASSY, flow control valve, one required per sector

1шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

139177C1

DECAL

PRODUCT GRAPHIC, flow control

1шт.
