Запчасти Case IH 1586 (10-34) - HYDRAULIC, HYDRAULIC DRAFT CONTROL LINKAGE, 1586 TRACTOR WITH SERIAL NO. 21000 AND ABOVE (07) - HYDRAULICS

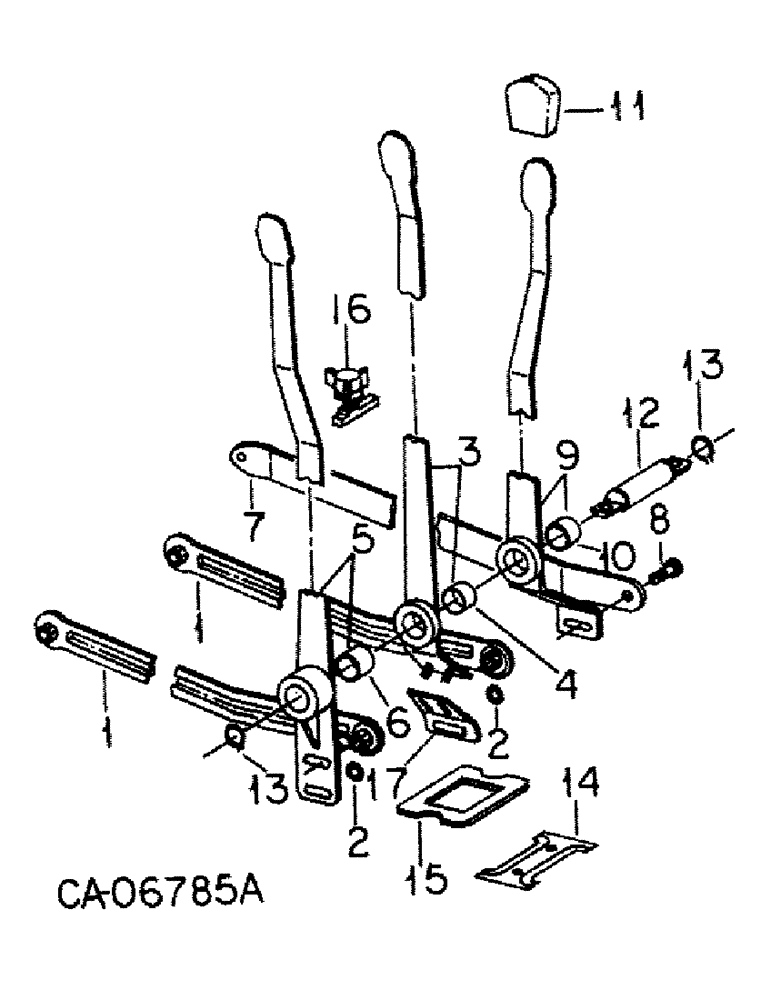

Схема запчастей Case IH 1586 - (10-34) - HYDRAULIC, HYDRAULIC DRAFT CONTROL LINKAGE, 1586 TRACTOR WITH SERIAL NO. 21000 AND ABOVE (07) - HYDRAULICS
6
15
12
13
4
14
9
1
11
16
17
2
10
8
3
13
7
2
5
1

Артикул

Название

Примечание

Количество

1

120314C2

ROD

ASSY, draft & position control

2шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

5/16 x 1-1/8 type 5

4шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 phc p/t lock type 5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 serrated washer head

2шт.

2

532409R1

SPRING WASHER

serrated spring steel

2шт.

3

1259648C91

HANDLE

ASSY, position control, Replaces 120494C93 by also furnishing extension 1259650C1 and two nuts 938016R1

1шт.

4

144003C1

BUSHING

position control handle

1шт.

5

104529C91

HANDLE

ASSY, draft control

1шт.

6

383236R1

BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L

draft control handle

1шт.

7

120498C2

LINK

raise rate connecting

1шт.

Q3817

WASHER

.344 x .656 x .021 pln

1шт.

103363

PIN, SPLIT (COTTER)

PIN, 1/16 x 1 pln cot

1шт.

21903R1

WASHER

.531 x .750 x .054

1шт.

8

400862R1

BOLT,Hex, 5/16" - 18 x 0.85"

5/16 shoulder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 serrated washer head

1шт.

9

120496C91

HANDLE

ASSY, raise rate control

1шт.

10

120464C1

BUSHING,19.07mm ID x 20.68mm OD x 13.21mm L

raise rate control handle

1шт.

11

1259760C1

BALL KNOB

KNOB, control handle

3шт.

12

104532C2

SHAFT

control pivot

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

13

661652R1

SNAP RING,#75, Ext

Control handle #75, Ext

2шт.

16066R1

WASHER

SPACER, control handle inner & outer (Or as required)

6шт.

21018R1

WASHER

SPACER, control handle outer (Or as required)

1шт.

14

SUPPORT, control platform seal, Order 135877C1

1шт.

15

135877C1

SEAL

control, Replaces 104535C1 & 104534C1

1шт.

16

120408C1

STOP

ASSY, position control handle

1шт.

17

1259650C1

SUPPORT

position control handle extension

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

Выбрано товаров: 28
